Asus NCT-D

109553 - ASUS NCT-D Motherboard, Intel Xeon CPU, 800MHz FSB, 4 Dual Channel DDR2 DIMMs, 1 PCI, 2 PCI-X, 1 PCI-E, On-Board Gigabit LAN, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$365.19

109553 - NCT-D
ASUS NCT-D Motherboard, Intel Xeon CPU, 800MHz FSB, 4 Dual Channel DDR2 DIMMs, 1 PCI, 2 PCI-X, 1 PCI-E, On-Board Gigabit LAN, ATX Form Factor

ASUS NCT-D Motherboard. Specifications, price and availability 54130006

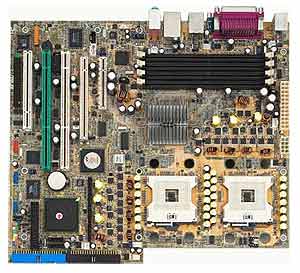

ASUS NCT-D Motherboard



ASUS NCT-D Motherboard, Intel Xeon CPU, 800MHz FSB

  • OS Support:
    • Windows XP Home Edition SP1
    • Windows XP Professional Edition SP1
    • Windows Server 2003 Standard Edition
    • Windows Server 2003 Web Edition
    • Windows Server 2003 Enterprise Edition
    • Window 2000 Server SP4
    • Window 2000 Advance Server SP4
    • RedHat Linux Enterprise AS 3.0
    • RedHat Linux 9.0
    • RedHat Linux 8.0
    • SuSE Linux Enterprise 8.0 SP3
    • SuSE Linux 9.0
    • Novell Netware 6.0, 6.5 SP1.1
    • SCO Unixware 7.1.3 MP3
    • SCO OpenServer 5.0.7 MP1
    • Solaris 9.0
    • FreeBSD 4.9
  • Manageability:
    • ASWM 2.0
  • Industrial Standard:
    • US (FCC, CFR47 Part 15, Class B)
    • Europe (CE, EN55022 & EN55024)
    • Australia (C-TICK)
    • Taiwan (BSMI)
  • Accessories:
    • Optional CA eTrust Antivirus or Trend Micro Server Protect

Motherboard Specifications

  • Model:
    • NCT-D
  • Processor Support:
    • Intel ® Xeon 3.6GHz+
  • Chipset:
    • Intel ® E7525 MCH
  • FSB:
    •  800MHz
  • Memory:
    • Dual Channel DDR2 400,ECC Registered
    • Max up to 8GB / 4 slots
  • Expansion Slots:
    • 1 x 32bit/ 33MHz PCI
    • 2 x 64bit/ 66MHz PCI-X
    • 1 x PCI-E x8 slot (x4 link)
  • On-Board LAN:
    • Broadcom 5751 PCI-Express Gb
  • Storage:
    • SATA: Intel ® 6300ESB, 2 ports
    • 2 x ATA100
  • Rear Panel I/O Ports:
    • 1 x External Serial Port
    • 2 x External USB Port
    • 1 x IEEE1394
    • 1 x Mic/Line-in/Line-out
    • 1 x RJ-45
    • PS/2 Mouse/Mouse
    • 1 x SPD/IF Out
  • Internal I/O Interface:
    • 1 x Floppy Connector
    • SSI ATX 24-pin + 12V 8-pin
    • 1 x [x16 PCI-E slot for graphics]
    • 4 x Front USB
    • 6 x Fan
    • 1 x SMBus
    • 1 x Chassis Instruction
    • 1 x ASUS WiFi Connector
    • 1 x Game Port
  • Form Factor:
    • 12" x 9.8"
    • ATX Form Factor
