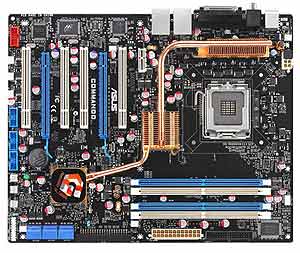

Asus COMMANDO

109557 - Asus Commando Socket 775 Motherboard, Intel Quad-Core Ready, Intel P965 Chipset, 1066/800/533 MHz FSB, 4 Dual Channel DDR2 DIMMs, 2 PCI-E X16, 4 PCI, On-Board Audio and Dual Gigabit LAN, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$272.00

109557 - COMMANDO
Asus Commando Socket 775 Motherboard, Intel Quad-Core Ready, Intel P965 Chipset, 1066/800/533 MHz FSB, 4 Dual Channel DDR2 DIMMs, 2 PCI-E X16, 4 PCI, On-Board Audio and Dual Gigabit LAN, ATX Form Factor

Asus Commando Socket 775 Motherboard. Specifications, price and availability 54110740

Asus Commando Motherboard

Socket 775 Intel Quad-Core CPU Ready



Asus Commando Socket 775 Motherboard, Intel Quad-Core Ready, Intel P965 Chipset

  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1 x S/PDIF Out (Coaxial + Optical)
    • 1 x IEEE1394a
    • 2 x RJ45 port
    • 4 x USB 2.0/1.1
  • BIOS:
    • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • Overclocking  Features:
    • Extreme Tweaker
    • Intelligent overclocking tools: AI NOS (Non-delay Overclocking System), AI Overclocking (intelligent CPU frequency tuner), ASUS AI Booster Utility
    • O.C Profile
    • Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
  • Special Features:
    • LCD Poster
    • Onboard Switches: Power /
    • Reset / Clr CMOS
    • Q-Connector
    • ASUS CrashfreeBIOS 3
    • ASUS EZ Flash2
    • ASUS MyLogo3
    • RoHS Compliant
  • Manageability:
    • WfM 2.0, DMI 2.0, WOL by PME, PXE
  • Accessories:
    • UltraDMA 133/100/66 cable
    • FDD cable
    • SATA cables
    • SATA power cables
    • I/O Shield
    • User's manual
    • USB2.0 port module
    • 3 in 1 Q-connector
    • 7 x cable ties
    • IEEE1394 port module
    • Optional Fan for Water-Cooling or Passive-Cooling only

Motherboard Specifications

  • Model:
    • Asus Commando
  • Processor Support:
    • Socket 775 for Intel Core2 Extreme / Core2 Duo / Pentium Extreme / Pentium D / Pentium 4 / Celeron D Processors
    • Compatible with Intel 05B/05A/06 processors
    • Intel Quad-Core CPU ready
    • Refer to www.asus.com for Intel CPU support list
  • Chipset:
    • Intel P965 / ICH8R with Intel Fast Memory Access Technology
  • FSB:
    • 1066 / 800 / 533 MHz
  • Memory:
    • 4 x DIMM, max. 8GB, DDR2 800 / 667 / 533 MHz, non-ECC, un-buffered memory
    • Dual channel memory architecture
    • Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
  • Expansion Slots:
    • 2 x PCI-E x16 (@ x16 and x4 mode)
    • 4 x PCI 2.2
  • On-Board Audio:
    • SupremeFX Audio card featuring ADI 1988B Codec
    • Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
    • Coaxial / Optical S/PDIF out ports at back I/O
    • ASUS Noise Filter
    • DTS Connect
  • On-Board LAN:
    • Dual Gigabit LAN controllers, both featuring AI NET2
    • Marvell PCI-E and PCI Gigabit LAN controllers
  • Storage:
    • 6 x SATA 3.0 Gb/s ports
    • Intel Matrix Storage Technology supports  RAID 0, 1, 5 and 10.
    • 1 x UltraDMA 133/100/66 for up to 2 PATA devices
  • Internal I/O Interface:
    • 3 x USB connectors support additional 6 USB ports
    • 1 x Floppy disk drive connector
    • 1 x IDE connector
    • 6 x SATA connectors
    • 1 x CPU Fan connector
    • 6 x Chassis Fan connector
    • 1 x Power Fan connector
    • 1 x IEEE1394a connector
    • 1 x Azalia Digital Header
    • 3 x thermal sensor connectors
    • Chassis Intrusion connector
    • 24-pin ATX Power connector
    • 1 x 8-pin ATX 12V Power connector
    • System Panel
  • Form Factor:
    • ATX Form Factor
    • 12" x 9.6"
    • 30.5cm x 24.5cm
