Asus K8N-LR

109572 - Asus K8N-LR Socket 939 Opteron Serverboard, Nvidia CK8-04 SLI Chipset, 4 Dual Channel DDR DIMMs, 1 PCI-E X16, 2 PCI-X, 2 PCI, 1 Mini PCI, On-board Video and Dual Gigabit LAN, RoHS Compliant, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$252.10

109572 - K8N-LR
Asus K8N-LR Socket 939 Opteron Serverboard, Nvidia CK8-04 SLI Chipset, 4 Dual Channel DDR DIMMs, 1 PCI-E X16, 2 PCI-X, 2 PCI, 1 Mini PCI, On-board Video and Dual Gigabit LAN, RoHS Compliant, ATX Form Factor

Asus K8N-LR Socket 939 Opteron Serverboard. Specifications, price and availability 54230047

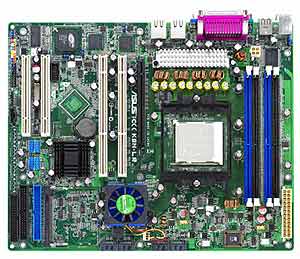

Asus K8N-LR Motherboard

Socket 939 Opteron Serverboard



Asus K8N-LR Socket 939 Opteron Serverboard, Nvidia CK8-04 SLI Chipset, 4 Dual Channel DDR DIMMs

  • Internal I/O Interface:
    • 1 x Floppy Connector
    • SSI 24-pin + 4-pin ATX 12V power connector
    • 1 x MiniPCI Socket
    • 1 x SMbus
    • 6 x Fan
    • 4 x USB connectors (support 8 USBs)
  • OS Support:
    • Windows 2000 Advanced Server SP4
    • Windows Server 2003 Standard Edition SP1
    • Windows Server 2003 Enterprise x64 Edition SP1
    • RHEL AS3 UP6 x32
    • RHEL AS3 UP6 x64
    • RHEL AS4 UP2 x32
    • RHEL AS4 UP1 x64
    • SLES 9 SP2 x32
    • SLES 9 SP2 x64
    • Fedora core3 x32
    • Fedora core3 x64
    • Fedora core4 x32
    • Fedora core4 x64
  • Manageability:
    • ASWM2.0
  • Industrial Standard:
    • US (FCC, CFR47 Part 15, Class B)
    • Europe (CE, EN55022 & EN55024)
    • RoHS Compliant

Motherboard Specifications

  • Model:
    • Asus K8N-LR
  • Processor Support:
    • Socket 939
    • AMD Opteron 100 series (up to 2.8GHz)
    • AMD Athlon (up to 2.4GHz)
  • Chipset:
    • nVIDIA CK8-04 SLI
  • Memory:
    • Dual Channel DDR400 DIMM
    • 4 x ECC Un-Buffered DIMM
    • Max. up to 4GB
  • Expansion Slots:
    • 1 x PCI-E x16 (x8 link)
    • 2 x 64bit/133MHz PCI-X
    • 2 x 32bit/33MHz PCI
    • 1 x Mini PCI socket for ASMB2 card
  • On-Board Video:
    • ATI RAGE XL / 8MB
  • On-Board LAN:
    • 2 x Broadcom BCM5721 PCI-E Gigabit LAN
  • Storage:
    • 1 x Dual Channel Bus Master IDE support UltraATA 100/133
    • 4 x SATA ports
  • Rear Panel I/O Ports:
    • 1 x External Serial Port
    • 2 x External USB Port
    • 2 x RJ-45
    • 1 x PS/2 K/B & Mouse
  • Form Factor:
    • ATX Form Factor
    • 12.0" x 9.6"
