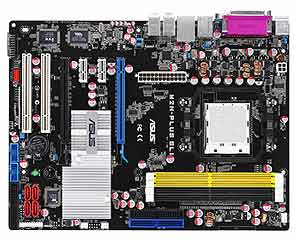

Asus M2N-PLUS SLI VISTA EDITION

109587 - Asus M2N-Plus Socket AM2 SLI Vista Edition Motherboard, Nvidia 500 SLI Chipset, 2000/1600 MT/s FSB, 4 Dual Channel DDR2 DIMMs, 2 PCI-E X16, 2 PCI-E X1, 2 PCI, On-Board Audio and Gigabit LAN, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$150.25

109587 - M2N-PLUS SLI VISTA EDITION
Asus M2N-Plus Socket AM2 SLI Vista Edition Motherboard, Nvidia 500 SLI Chipset, 2000/1600 MT/s FSB, 4 Dual Channel DDR2 DIMMs, 2 PCI-E X16, 2 PCI-E X1, 2 PCI, On-Board Audio and Gigabit LAN, ATX Form Factor

Asus M2N-Plus Socket AM2 SLI Vista Edition Motherboard. Specifications, price and availability 54200347

Asus M2N-Plus SLI Vista Edition Motherboard

Socket AM2 Athlon 64 X2 SLI Motherboard



Asus M2N-Plus Socket AM2 SLI Vista Edition Motherboard, Nvidia 500 SLI Chipset

  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard port
    • 1 x PS/2 Mouses
    • 1 x LAN (RJ45) port
    • 1 x IEEE 1394a port
    • 4 x USB 2.0/1.1 ports
    • 1 x SPDIF Out
    • 1 x Parallel(Printer Port)
    • 1 x COM port
    • 8-channel Audio ports
  • BIOS:
    • 4Mb AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
  • Special Features:
    • ASUS AI Lifestyle Vista Edition Features
      - AI Remote
      - ASAP (ASUS Accelerated Propeller)
      - AP Trigger
      - TPM support(The TPM module is purchased separately)
      *AI Remote, AP Trigger and TPM can run both Windows Vista and XP
    • ASUS Quiet Thermal Solution:
      - ASUS AI Gear
      - ASUS AI Nap
      - ASUS Q-Fan 2
    • ASUS EZ DIY:
      - ASUS Q-Connector
      - ASUS CrashFree BIOS 3
      - ASUS EZ Flash 2
  • Overclocking Features:
    • AI Overclocking (intelligent CPU frequency tuner)
    • SFS (Stepless Frequency Selection): allowing FSB tuning from 200MHz up to 400MHz at 1MHz increment
    • ASUS C.P.R.(CPU Parameter Recall)
    • Adjustable FSB/DDR2 ratio. Fixed PCI/PCIe frequencies.
  • Manageability:
    • WOL by PME, WOR by PME,Chassis Intruction, PXE
  • Accessories:
    • 1 x SLI bridge
    • 1 x UltraDMA 133/100/66 cable
    • 1 x Floppy disk drive cable
    • 2 x SATA cables
    • 1 x SATA power cable for 2 device
    • 1 x I/O Shield
    • 1 x ASUS Q-Connector Kit(USB, System panel;Retail version only)
    • ASUS AI Remote (Retail version only)
    • User's manual

Motherboard Specifications

  • Model:
    • Asus M2N-Plus SLI Vista Edition
  • Processor Support:
    • Support AMD ® Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron
    • AMD Cool 'n' Quiet Technology
    • AMD64 architecture enables simultaneous 32-bit and 64-bit computing
    • AMD Live! Ready
  • Chipset:
    • NVIDIA nForce ® 500 SLI MCP
  • FSB:
    • 2000 / 1600 MT/s
  • Memory:
    • Dual channel memory architecture
    • 4 x DIMM, max. 8GB, DDR2-800/667/533, ECC and non-ECC, un-buffered memory
  • Expansion Slots:
    • 2 x PCI Express x16 slot with NVIDIA ® SLI technology support, at x8, x8 speed
    • 2 x PCI Express x1
    • 2 x PCI 2.2
  • SLI Support:
    • Support two identical NVIDIA SLI-Ready graphics cards (both at x8 mode)
    • ASUS two-slot thermal design
  • On-Board Audio:
    • C-Media Superior Quality Audio 7.1 channel CODEC (Vista ready)
    • Support S/PDIF out interface
  • On-Board LAN:
    • NVIDIA nForce ® 500 SLI MCP built-in Gigabit MAC with external Attansic PHY
    • Support TCP/IP Acceleration
  • Storage:
    • 2 x Ultra DMA 133 / 100 / 66 / 33
    • 4 x Serial ATA 3.0Gb/s
    • Supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
  • Internal I/O Interface:
    • 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
    • 1 x Floppy disk drive connector
    • 2 x IDE connector for four devices
    • 4 x SATA connectors
    • 1 x CPU / 1 x Chassis / 1 x Power Fan connectors
    • 1 x TPM connector
    • 1 x IEEE1394a connector
    • 1 x S/PDIF output connector
    • Front Panel Audio connector
    • CD audio in
    • 24-pin ATX Power connector
    • 4-pin ATX 12V Power connector
    • System panel connector
  • Form Factor:
    • ATX Form Factor
    • 12" x 8.6"
    • 30.5cm x 21.8cm
