Asus N4L-VM DH

109589 - Asus N4L-VM DH Socket 479 Intel Core Duo Motherboard, Intel 945GM Chipset, 667/533 MHz FSB, 2 Dual Channel DDR2 DIMMs, 1 PCI-E X16, 1 PCI-E X1, 2 PCI, On-Board Video, Audio and Gigabit LAN, Micro ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$142.80

109589 - N4L-VM DH
Asus N4L-VM DH Socket 479 Intel Core Duo Motherboard, Intel 945GM Chipset, 667/533 MHz FSB, 2 Dual Channel DDR2 DIMMs, 1 PCI-E X16, 1 PCI-E X1, 2 PCI, On-Board Video, Audio and Gigabit LAN, Micro ATX Form Factor

Asus N4L-VM DH Socket 479 Intel Core Duo Motherboard. Specifications, price and availability 54110747

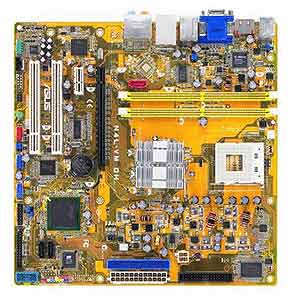

Asus N4L-VM DH Motherboard

Socket 479 Intel Core Duo Motherboard



Asus N4L-VM DH Socket 479 Intel Core Duo Motherboard, Intel 945GM Chipset, 667/533 MHz FSB

  • Internal I/O Interface:
    • 2 x USB connector supports additional 4 USB ports
    • 1 x IEEE 1394a connector
    • 1 x COM connector
    • 1 x Printer connector
    • 1 x TV out connector
    • 1 x S/PDIF in/out connector
    • 1 x CPU / 1 x Chassis Fan connectors
    • 1 x Chassis Intrusion connector
    • 1 x Game / MIDI connector
    • Azalia Front Panel Audio connector
    • CD audio in
    • System panel connector
    • 24-pin ATX Power connector
    • 4-pin ATX 12V Power connector
  • BIOS:
    • 8 Mb Flash ROM, AMI BIOS, PnP, DMI, WfM2.0, ACPI 2.0a, SM BIOS 2.3, ASUS CrashFree BIOS 2, EZ Flash, Intel Quick Resume
  • Special Features:
    • ASUS C.P.R.
    • ASUS MyLogo
    • ASUS Q-Fan
    • ASUS EZ Flash
    • ASUS CrashFree BIOS 2
  • Manageability:
    • WOR by Ring, WOL/WOR by PME, WO USB, WO KB/MS, PXE
  • Accessories:
    • User's manual
    • 1 x UltraDMA cable
    • 1 x FDD cable
    • 2 x SATA cables
    • 1 x SATA power cable
    • 1 x USB 2.0 cable
    • 1 x IEEE1394 port module
    • 1 x CPU Fan Heatsink
    • 1 x I/O shield

Motherboard Specifications

  • Model:
    • Asus N4L-VM DH
  • Processor Support:
    • Socket 479
    • Designed for Intel ® Core Duo processor
  • Chipset:
    • Intel 945GM
    • Intel ICH7-M DH
  • FSB:
    • 667/533 MHz
  • Memory:
    • Dual Channel Architecture
    • 2 x 240-pin DIMM sockets support max. 2GB DDR2 667 / 533, non-ECC, un-buffered memory
  • Expansion Slots:
    • 1 x PCI-E x 16
    • 1 x PCI-E x 1
    • 2 x PCI
  • On-Board Video:
    • Integrated Graphics (Intel Graphics GMA 950)
  • On-Board Audio:
    • Realtek ALC 882M, 8-ch High Definition Audio CODEC
    • Jack-Sensing & Enumeration
    • Multi-Streaming
  • On-Board LAN:
    • Intel 82573L Gb Ethernet (Vidalia)
  • Storage:
    • Intel ® ICH7-M DH South Bridge:
      - 1 x UltraDMA 100/66/33
      - 2 x Serial ATA support RAID 0, 1, and Intel ® Matrix Storage Technology
    • Jmicron SATA controller:
      - 1 x Internal Serial ATA 3.0Gb/s
      - 1 x External Serial ATA 3.0Gb/s (SATA On-the-Go)
      - Support RAID 0, 1
  • Rear Panel I/O Ports:
    • 1 x VGA port
    • 4 x USB
    • 1 x IEEE1394a
    • 1 x External SATA
    • 1 x RJ45
    • 1 x PS/2 Keyboard + 1 x PS/2 Mouse
    • 1 x Optical S/PDIF out
    • 1 x Coaxial S/PDIF out
    • 1 x 8-Channel Audio I/O
  • Form Factor:
    • Micro ATX Form Factor
    • 9.6" x 9.6"
    • 24.5cm x 24.5cm
