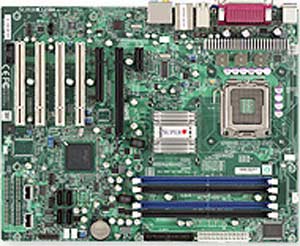

Supermicro C2SBE Motherboard

• Rear Panel I/O Ports:
  • 1 RJ45 LAN ports
  • 6x USB rear ports + 2 Type A connectors (12 USB 2.0 Compliant / 1.1 Compliant)
  • 1 Fast UART 16550 serial port
  • Line-in / Line-out / Microphone Ports
  • 1x ECP / EEP Parallel Por
  • Stacked PS/2 keyboard and mouse ports


• Manageability:
  • ACPI/APM Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
  • Power-on mode control for AC power loss recovery
  • Keyboard Wakeup from Soft-Off
  • CPU Fan auto-off in sleep mode
  • Internal/External modem remote ring-on
  • Suspend to RAM (STR)
  • Monitors for CPU Cores Cores +1.8V, +3.3V, +5V, ±12V, +5V Standby
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio
  • Total of five 4-pin fan headers
  • Status monitor with firmware/software speed control
  • 3x fans with tachometer status monitoring
  • Support 3-pin PWM fans (with speed control)
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • CPU / System Overheat LED
  • Standby alert LED
  • Chassis intrusion detection, Chassis intrusion header
  • Optional IPMI (Intelligent Platform Management Interface) 2.0
  • Super Doctor III, Watch Dog, NMI, W83793 H/W Monitor

Supermicro C2SBE Specifications

• Model:
  • Supermicro C2SBE Motherboard

• Processor Support:
  • Single LGA775 ZIF Socket
  • Supports an Intel ® Core 2 Quad processor
  • Supports an Intel ® Core 2 Duo processor


• FSB:
  • 1333 / 1066 / 800 MHz system bus

• Chipset:
  • Intel P35
  • ICH9


• Memory:
  • Four 240-pin DIMM sockets
  • Supports up to 8 GB of unbuffered, non-ECC DDR2 800/667MHz memory (Dual Channel)
  • DDR2 800/667MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only


• Expansion Slots:
  • 1 (x16) PCI-Express
  • 1 (x4) PCI-e (using x8) slot
  • 1 (x1) PCI-e slot
  • 4x 32-bit 33MHz PCI (5V) slots

• On-Board LAN:
  • 1 x Intel® 82566 Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output


• Storage:
  • Intel® ICH9 SATA2 (3 Gbps) controller built-in
  • Four SATA hard drives supported


• Audio:
  • High Definition 7.1 Channel Audio


• Other Features:
  • RoHS Compliant 6/6, Pb Free
  • FCC Class B


• BIOS:
  • 16Mb Flash EEPROM with SPI BIOS® PhoenixBIOS®
  • Plug and Play (PnP)
  • ACPI 1.0, PCI 2.2, DMI 2.3
  • USB Keyboard support
  • SMBIOS 2.3


• Form Factor:
  • ATX
  • 12.0" x 9.6 ", (30.5cm x 24.4cm)
  • To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.
