Supermicro C2SBA

Part # 109961

Condition : New- Retail Box | Warranty : 1 year

Brand : Supermicro
0 review | Add Your Review

$202.39

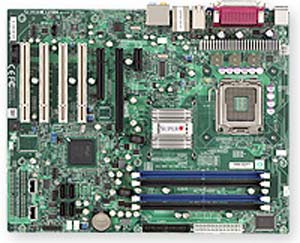

Supermicro C2SBA Motherboard

Supermicro C2SBA Motherboard

Single LGA775 ZIF Sockets, Supports an Intel ® Core2 Quad, Intel ® Core2 Duo, Intel G33 chipset, 1 (x16) PCI-E, 1 (x4) PCI-E, 1 (x1) PCI-E, 4x PCI 32-bit 33MHz, DDR2 DIMM Up to 8 GB, LAN, USB, SATA, Video, Audio, ATX Form Factor

Supermicro C2SBA Motherboard, Single LGA775 ZIF Sockets, Supports an Intel ® Core2 Quad, Intel ® Core2 Duo, Intel G33 chipset, 1 (x16) PCI-E,  1 (x4) PCI-E, 1 (x1) PCI-E, 4x PCI 32-bit 33MHz, DDR2 DIMM Up to 8 GB,  LAN, USB,  SATA, Video, Audio, ATX Form Factor

  • Internal I/O Interface:
    • 1 Floppy controller; 1.44 MB, 2.88 MB
    • 2x USB internal headers
    • 4x internal USB headers
    • Four SATA hard drives supported
  • Rear Panel I/O Ports:
    • 1 RJ45 LAN ports
    • 6 rear USB Ports (12x USB 2.0 / 1.1 compatible)
    • 1 Fast UART 16550 serial port
    • 1x VGA Port
    • 1x ECP / EEP Parallel Por
    • Line-in / Line-out / Microphone Ports
    • Stacked PS/2 keyboard and mouse ports

  • Manageability:
    • ACPI/APM Power Management
    • Main Switch Override Mechanism
    • Wake-On-Ring (WOR) header, Wake-On-LAN (WOL) header
    • Power-on mode control for AC power loss recovery
    • Keyboard Wakeup from Soft-Off
    • CPU Fan auto-off in sleep mode
    • Internal/External modem remote ring-on
    • Suspend to RAM (STR)
    • Monitors for CPU Cores Cores +1.8V, +3.3V, +5V, ±12V, +5V Standby
    • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
    • Adjustable CPU clock frequency ratio
    • Total of five 4-pin fan headers
    • Status monitor with firmware/software speed control
    • 3 x fans with tachometer monitoring
    • Support 3-pin PWM fans (with speed control)
    • Status monitor for on/off control
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan conn.
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • PECI
    • Thermal Monitor 2 (TM2) support
    • CPU / System Overheat LED
    • Standby alert LED
    • Chassis intrusion detection
    • Chassis intrusion header
    • Optional IPMI (Intelligent Platform Management Interface) 2.0
    • Super Doctor III, Watch Dog, NMI, W83793 H/W Monitor

Supermicro C2SBA Specifications

  • Model:
    • Supermicro C2SBA Motherboard
  • Processor Support:
    • Single LGA775 ZIF Socket
    • Supports an Intel ® Core2 Quad Series processor
    • Supports an Intel ® Core2 Duo Series processor

  • FSB:
    • 1333 / 1066 / 800 MHz system bus
  • Chipset:
    • Intel G33
    • ICH9

  • Memory:
    • Four 240-pin DIMM sockets
    • Supports up to 8 GB of unbuffered, non-ECC(Dual Channel)
    • DDR2 800/667MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
    • 256 MB, 512 MB, 1 GB, 2 GB, 1.8V only

  • Expansion Slots:
    • 1 (x16) PCI-Express or
    • 1 (x4) PCI-e (using x8) slot
    • 1 (x1) PCI-e slot
    • 4x 32-bit 33MHz PCI (5V) slots
  • On-Board LAN:
    • 1 x Intel ® 82566 Gigabit Ethernet
    • Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output

  • Storage:
    • Intel ® ICH9 SATA2 (3 Gbps) controller built-in
    • RAID 0, 1, 5, 10 support (Windows Only)
    • Four Serial ATA ports (3 Gbps performance)
    • Four SATA hard drives supported

  • Video:
    • Intel Graphics Media Accelerator 3100

  • Audio:
    • High Definition 7.1 Channel Audio

  • BIOS:
    • 16Mb Flash EEPROM with SPI BIOS ®
    • Plug and Play (PnP)
    • ACPI 1.0, PCI 2.2, DMI 2.3
    • USB Keyboard support
    • SMBIOS 2.3

  • Form Factor:
    • ATX
    • 12.0" x 9.6 ", (30.5cm x 24.4cm)

  • Other Features :
    • RoHS Compliant 6/6, Pb Free
    • To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.
