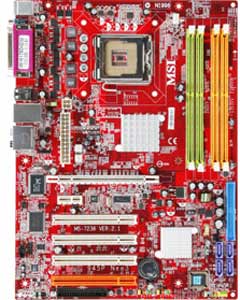

MSI 945P Neo3-F Motherboard
Supports Intel Core 2 Duo, Pentium 4/D(DualCore and CederMill), and Celeron D Prescott LGA775 processors in LGA775 package, Intel ® 945P chipset, 1 PCI-E 16x, 1 PCI-X 1X, 4 PCI, DDR2, LAN, USB, IDE, SATA2, Audio, SPDIF, ATX Form Factor |
- Internal I/O Interface:
- 4 x USB 2.0 connector (8 Total )
- 1 x Floppy disk drive connector
- 4x SATA2 connectors
- 1 IDE ports support 2 IDE devices
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard
- 1 x PS/2 Mouse
- 4 x USB 2.0 Ports
- 1 parallel port supports SPP/EPP/ECP mode
- 1 Serial port (COM A)
- 1 x RJ 45 Port
- 1 Line-in / Line-out / Mic-in / Rear Speaker Out / Center-Subwoofer Speaker out / SPDIF-out
- Audio:
- High Definition link controller integrated in Intel ICH7 chip
- 8 channels audio codec Realtek ALC850.
- Compliance with AC'97 v2.3
- Form Factor:
- ATX Form Factor
- 11.81in.(L) x 8.86in.(W)
|
MSI 945P Neo3-F Motherboard
- Model:
- MSI 945P Neo3-F Motherboard
- Processor Support:
- Supports Intel Core 2 Duo, Pentium 4/D(DualCore and CederMill), and Celeron D Prescott LGA775 processors in LGA775 package
- Supports Intel Hyper-Threading technology
- Supports Intel Dual Core
- FSB:
- Supports FSB 533/800/1066
- Chipset:
- Memory:
- Supports 4 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
- Supports the memory size up to 4GB
- Support Dual Channel DDR2 667/533/400MHz and up
- Expansion Slots:
- One PCI Express 16X slot
- One PCI Express X 1 slot
- Four PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v/5v PCI bus interface)
- Storage:
- One Ultra DMA 66/100 IDE controller integrated in ICH7
- Supports PIO, Bus Master operation modes
- Can connect up to 2 Ultra ATA drives
- Serial ATAII controller integrated in ICH7
- Up to 300MB/s transfer speed
- Can connect up to 4 SATA2 drives
- Supports ACHI controller
- Supports SATA hot plug
- On-Board LAN:
- Realtek RTL8110SC
- Support 10/100/1000 Mb/s
- Compliane with PCI 2.2
- Supports ACPI Power Management
- BIOS:
- The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
|
