Asus DSBF-D12

110354 - Asus DSBF-D12 Motherboard, Supports Dual Intel® Xeon processor: Dual-Core Intel® Xeon® 5200,Quad-Core Intel® Xeon® 5300, Dual-Core Intel® Xeon® 5100 series in the Socket 771, Intel® 5000P chipset, 1 x PCIe x16 (run x8), 2 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Video, SSI EEB 3.6 Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

110354 - DSBF-D12
Asus DSBF-D12 Motherboard, Supports Dual Intel® Xeon processor: Dual-Core Intel® Xeon® 5200,Quad-Core Intel® Xeon® 5300, Dual-Core Intel® Xeon® 5100 series in the Socket 771, Intel® 5000P chipset, 1 x PCIe x16 (run x8), 2 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Video, SSI EEB 3.6 Form Factor

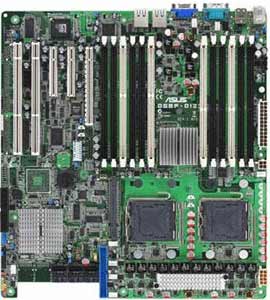

Asus DSBF-D12 Motherboard

Asus DSBF-D12 Motherboard

Supports Dual Intel ® Xeon processor: Dual-Core Intel ® Xeon ® 5200,Quad-Core Intel ® Xeon ® 5300, Dual-Core Intel ® Xeon ® 5100 series in the Socket 771, Intel ® 5000P chipset, 1 x PCIe x16 (run x8), 2 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Video, SSI EEB 3.6 Form Factor

Asus DSBF-D12 Motherboard, Supports Dual Intel ® Xeon processor: Dual-Core Intel ® Xeon ® 5200,Quad-Core Intel ® Xeon ® 5300,  Dual-Core Intel ® Xeon ® 5100 series in the Socket 771, Intel ® 5000P chipset, 1 x PCIe x16 (run x8), 2 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Video, SSI EEB 3.6 Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 1 x USB 2.0/1.1 headers
    • 1 x Serial Header
    • 6 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x D-Sub port
    • 1 x Serial
    • 2 x USB 2.0/1.1 ports
    • 2 x RJ 45 Port

  • On-Board LAN:
    • Dual Intel ®82563EB
    • 10/100/1000 Mbps

  • Power Connector :
    • 1 x 24 pin main power
    • 1 x 8 pin CPU power
    • 1 x 4-pin ATX 12V power connector

Asus DSBF-D12 Motherboard

  • Model:
    • Asus DSBF-D12 Motherboard
  • Processor Support:
    • Supports Dual Intel ® Xeon processors:
    • Quad-Core Intel ® Xeon ® 5400 Series (45nm)
    • Dual-Core Intel ® Xeon ® 5200 Series (45nm)
    • Quad-Core Intel ® Xeon ® 5300 Series
    • Dual-Core Intel ® Xeon ® 5100 Series
    • 2x2M, or 4M L2 cache
    • Dual socket 771

  • FSB:
    • 667/1066/1333MHz

  • Chipset:
    • Intel ® 5000P
  • Memory:
    • 12 x 240-pin DDR2 DIMM socket support up to 48 GB
    • Fully-Buffered DIMM DDR2 533/667 Reg. ECC
    • 512 MB, 1 GB, 2GB, 4GB
    • Support Dual Channel DDR2 667/533 MHz

  • Expansion Slots:
    • 1 x PCIe x16 ( run x8)
    • 2 x PCIe x8
    • 1 x PCIe x8 (run x4)
    • 2 x PCIx 133/100 Mhz
    • 1 x SODIMM socket for ASMB3-SOL Storage

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 6 x SATA2 3Gb/s
    • RAID 0, 1, 10 & 5 configuration

  • Video:
    • ATI ES1000 VGA Controller
    • Share Memory: Maximum up to 32MB

  • BIOS:
    • AMI BIOS with 8Mb Flash ROM
    • Supports Plug and Play, STR/STD,
    • Hardware monitor, Multi Boot, DMI
    • Supports ACPI revision 1.0 specification

  • Form Factor:
    • SSI EEB 3.6, 12 x 13 inch
