Asus DSGC-DW

110360 - Asus DSGC-DW Motherboard, Supports Dual Intel® Xeon processor: Quad-Core Intel® Xeon® 5300, Dual-Core Intel® Xeon® 5100 series in the Socket 771, FSB up to 1600, Intel® 5400 chipset, 1 x PCIe x16, 1 x PCIe x16 (run x4), 1 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 PCI 32 Bits, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Firewire, Audio, SPDIF, SSI EEB 3.6 Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

110360 - DSGC-DW
Asus DSGC-DW Motherboard, Supports Dual Intel® Xeon processor: Quad-Core Intel® Xeon® 5300, Dual-Core Intel® Xeon® 5100 series in the Socket 771, FSB up to 1600, Intel® 5400 chipset, 1 x PCIe x16, 1 x PCIe x16 (run x4), 1 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 PCI 32 Bits, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Firewire, Audio, SPDIF, SSI EEB 3.6 Form Factor

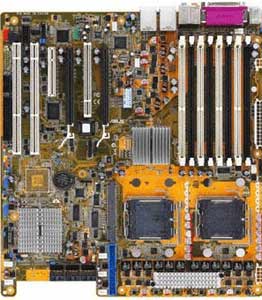

Asus DSGC-DW Motherboard

Asus DSGC-DW Motherboard

Asus DSGC-DW Motherboard, Supports Dual Intel ® Xeon processor: Quad-Core Intel ® Xeon ® 5300,  Dual-Core Intel ® Xeon ® 5100 series in the Socket 771, FSB up to 1600, Intel ® 5400 chipset, 1 x PCIe x16, 1 x PCIe x16 (run x4), 1 x PCIe x8, 2 x PCIx 133/100 Mhz, 1 PCI 32 Bits, 1 SODIMM, DDR2, Dual LAN, USB, IDE, SATA2, RAID, Firewire, Audio, SPDIF, SSI EEB 3.6 Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 1 x USB 2.0/1.1 headers
    • 2 x Serial Header
    • 6 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x D-Sub port
    • 1 x Parallel
    • 1 x Optical
    • 1 x Coaxial
    • 1 x 1394a port
    • 4 x USB 2.0/1.1 ports
    • 4 x RJ 45 Port

  • On-Board LAN:
    • Intel ® 82563EB PCI-E Dual Ports Gb LAN
    • 10/100/1000 Mbps

  • Power Connector :
    • 1 x 24 pin main power
    • 1 x 8 pin CPU power
    • 1 x 4-pin ATX 12V power connector

Asus DSGC-DW Motherboard

  • Model:
    • Asus DSGC-DW Motherboard
  • Processor Support:
    • Supports Dual Intel ® Xeon processors:
    • Quad-Core Intel ® Xeon ® 5300 Series
    • Dual-Core Intel ® Xeon ® 5100 Series
    • 2x2M, 4M or 8m L2 cache
    • Dual socket 771

  • FSB:
    • 667/1066/1333 MHz

  • Chipset:
    • Intel ® 5000X
  • Memory:
    • 8 x 240-pin DDR2 DIMM socket support up to 32 GB
    • Fully-Buffered DIMM DDR2 533/667 Reg. ECC
    • 512 MB, 1 GB, 2GB, 4GB

  • Expansion Slots:
    • 1 x PCIe x16
    • 1 x PCIe x16 (x4)
    • 1 x PCIe x8
    • 1 x PCI 32 bits
    • 2 x PCIx 133/100 Mhz
    • 1 x SODIMM socket for ASMB3-SOL Storage

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • Intel ® 6321ESB:
    • 6 x SATA2 3Gb/s
    • RAID 0, 1, 10 & 5 configuration

  • Audio:
    • Realtek ALC880
    • 7.1 Channels

  • Firewire:
    • 1 x 1394a connector

  • BIOS:
    • Phoenix BIOS with 8Mb Flash ROM
    • Supports Plug and Play, STR/STD,
    • Hardware monitor, Multi Boot, DMI
    • SMBIOS 2.3

  • Form Factor:
    • SSI EEB 3.6, 12 x 13 inch
