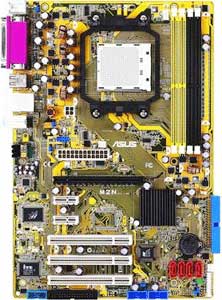

Asus M2N(GREEN)

110375 - Asus M2N Motherboard, Supports AMD Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA® nForce® 430 chipset, 1 x PCIe x16, 2 x PCIe x1, 2 x 32-bit 2.2 PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

110375 - M2N(GREEN)
Asus M2N Motherboard, Supports AMD Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA® nForce® 430 chipset, 1 x PCIe x16, 2 x PCIe x1, 2 x 32-bit 2.2 PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor

Asus M2N Motherboard

Asus M2N Motherboard

Supports AMD Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA ® nForce ® 430 chipset, 1 x PCIe x16, 2 x PCIe x1, 2 x 32-bit 2.2 PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor

Asus M2N Motherboard, Supports AMD Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA ® nForce ® 430 chipset, 1 x PCIe x16, 2 x PCIe x1, 2 x 32-bit 2.2 PCI, DDR2, LAN, USB, IDE, SATA2, RAID, Audio, SPDIF, ATX Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 3 x USB 2.0/1.1 headers
    • 1 x Serial Header
    • 4 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x Coaxial S/PDIF Out port
    • 1 x Parallel
    • 1 set 5.1 channel Audio Jack (3 jacks)
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ 45 Port

  • On-Board LAN:
    • NVIDIA ® nForce ® 430 MCP built-in Gigabit MAC with external Attansic PHY

  • Power Connector :
    • 1 x 24pin main power
    • 1x 4pin CPU power

Asus M2N Motherboard

  • Model:
    • Asus M2N Motherboard
  • Processor Support:
    • Supports AMD Athlon 64 FX / Athlon 64 / Sempron
    • AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
    • Supports AMD Cool'n'Quiet Technology
    • AMD Live! Ready
    • Socket AM2

  • FSB:
    • 2000/1600 MTS

  • Chipset:
    • NVIDIA ® nForce ® 430
  • Memory:
    • 4 x 240-pin DDR2 DIMM socket support up to 8 GB
    • Support Dual Channel DDR2 800/667/533 Mhz
    • ECC and non-ECC, un-buffered

  • Expansion Slots:
    • 1 x PCIe x16
    • 2 x PCIe x1
    • 3 x PCI 2.2

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 4 x SATA2 3Gb/s
    • NVIDIA MediaShield RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives

  • Audio:
    • ADI 6-channel High Definition Audio CODEC
    • 2/4/5.1
    • Compliant with HD specification

  • BIOS:
    • 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS2.3
      Manageability
    • WOL by PME, WOR by PME, Chasis Intrusion, PXE

  • Form Factor:
    • ATX Form Factor, 12"x 8.1" (30.5cm x 20.6cm)
