Asus M2N-MX SE(GREEN)

110380 - Asus M2N-MX SE Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA GeForce 6100 chipset, 1 x PCI Express x16, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video, Audio, SPDIF, Micro-ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

110380 - M2N-MX SE(GREEN)
Asus M2N-MX SE Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA GeForce 6100 chipset, 1 x PCI Express x16, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video, Audio, SPDIF, Micro-ATX Form Factor

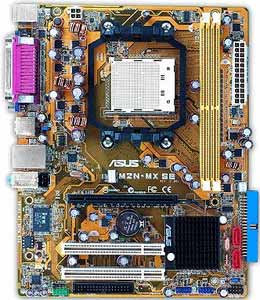

Asus M2N-MX SE Motherboard

Asus M2N-MX SE Motherboard

Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA GeForce 6100 chipset, 1 x PCI Express x16, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video, Audio, SPDIF, Micro-ATX Form Factor

Asus M2N-MX SE Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA GeForce 6100 chipset, 1 x PCI Express x16, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video, Audio, SPDIF, Micro-ATX Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 2 x USB 2.0/1.1 headers
    • 1 x S/PDIF output connector
    • 2 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x COM port
    • 1 x Parallel
    • 1 x VGA port
    • 1 set 5.1 channel Audio Jack (3 jacks)
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ 45 Port

  • Video:
    • Integrated GeForce 6100 GPU
    • High Definition Video Processing with max. resolutions to 1920 x 1440

  • Power Connector :
    • 1 x 24pin main power
    • 1x 4pin CPU power

Asus M2N-MX SE Motherboard

  • Model:
    • Asus M2N-MX SE Motherboard
  • Processor Support:
    • Supports AMD Athlon 64x2 / Athlon 64FX / Athlon 64 / Sempron
    • AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
    • Supports AMD Cool'n'Quiet Technology
    • AMD Live! Ready
    • Socket AM2

  • FSB:
    • 2000/1600 MTS

  • Chipset:
    • NVIDIA GeForce 6100
  • Memory:
    • 2 x 240-pin DDR2 DIMM socket support up to 4 GB
    • Support Dual Channel DDR2 800/667/533 Mhz
    • ECC and non-ECC, un-buffered

  • Expansion Slots:
    • 1 x PCI Express x16
    • 2 x PCI 32 Bits

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 2 x Serial ATA 3Gb/s with RAID 0, RAID 1
    • NVIDIA MediaShield RAID 0 and 1span cross Serial ATA drives

  • Audio:
    • Realtek ALC662 6-Channel audio CODEC
    • Support Jack-Sensing and S/PDIF out interface

  • On-Board LAN:
    • Phy 10/100M

  • BIOS:
    • 4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI 3.0
    • WfM 2.0, DMI 2.0, WOL by PME, PXE, RPL, WOR by PME

  • Form Factor:
    • uATX Form Factor, 9.6"x 7.6" (24.5cm x 19.4cm)
