Asus M3A78-EMH HDMI

110384 - Asus M3A78-EMH HDMI Motherboard, Supports AMD Phenom / Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2+, AMD 780G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (HDMI, DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$115.43

110384 - M3A78-EMH HDMI
Asus M3A78-EMH HDMI Motherboard, Supports AMD Phenom / Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2+, AMD 780G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (HDMI, DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor

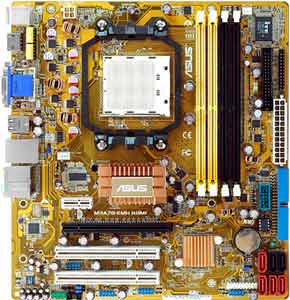

Asus M3A78-EMH HDMI Motherboard

Asus M3A78-EMH HDMI Motherboard

Supports AMD Phenom / Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2+, AMD 780G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (HDMI, DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor

Asus M3A78-EMH HDMI Motherboard, Supports AMD Phenom / Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2+, AMD 780G chipset, 1 x PCI Express x16, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (HDMI, DVI & VGA), Audio, SPDIF, Micro-ATX Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 4 x USB 2.0/1.1 headers
    • 1 x S/PDIF output connector
    • 1 x HDJ1 connector
    • 1 x COM connector
    • 6 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x HDMI
    • 1 x DVI
    • 1 x VGA port
    • 1 set 7.1 channel Audio Jack (6 jacks)
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ 45 Port

  • On-Board LAN:
    • PCIe Gb LAN

  • Power Connector :
    • 1 x 24pin main power
    • 1x 4pin CPU power

  • BIOS:
    • 8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3
    • WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME

Asus M3A78-EMH HDMI Motherboard

  • Model:
    • Asus M3A78-EMH HDMI Motherboard
  • Processor Support:
    • Supports AMD Phenom / Athlon 64x2 / Athlon 64FX / Athlon 64 / Sempron
    • AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
    • Supports AMD Cool'n'Quiet Technology
    • AMD Live! Ready
    • Socket AM2+

  • FSB:
    • 2000/1600 MTS

  • Chipset:
    • AMD 780G
  • Memory:
    • 4 x 240-pin DDR2 DIMM socket support up to 8 GB
    • Support Dual Channel DDR2 1066/800/667/533Mhz
    • ECC and non-ECC, un-buffered
    • DDR2 1066 is supported by AM2+ CPU only

  • Expansion Slots:
    • 1 x PCI Express x16
    • 1 x PCI-E x1
    • 2 x PCI 32 Bits 2.2

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 6 x Serial ATA 3Gb/s supporting RAID 0,1,10

  • Audio:
    • Realtek ALC883 8-Channel audio CODEC
    • Support Jack-Sensing Multi-streaming and S/PDIF out interface

  • Video:
    • Integrated ATI RV610-based Direct x10.1 graphics
    • Maximum shared memory of 256 MB
    • Supports HDMI Technology with HDCP compliant with max. resolution 1920 x 1080p
    • Supports DVI-D with max. resolution 2560x1600 (@ 60Hz dual-link)
    • Supports RGB with max. resolution 2048 x 1536 (@85Hz)
    • Dual VGA output support:
    • RGB & DVI/HDMI
    • DVI & HDMI
    • Hybrid CrossFireX Support

  • Form Factor:
    • Micro ATX, 9.6 inch x 9.6 inch ( 24.4 cm x 22.9 cm )
