Asus M2N32-SLI DLX/WIFI-AP

110388 - Asus M2N32-SLI Deluxe Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA nForce® 590 SLI MCP chipset, 2 x PCI Express x16, 1 x PCI-E x4, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, Dual LAN, USB, IDE, SATA2, eSATA, RAID, Firewire, Wireless, Audio, SPDIF, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

110388 - M2N32-SLI DLX/WIFI-AP
Asus M2N32-SLI Deluxe Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA nForce® 590 SLI MCP chipset, 2 x PCI Express x16, 1 x PCI-E x4, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, Dual LAN, USB, IDE, SATA2, eSATA, RAID, Firewire, Wireless, Audio, SPDIF, ATX Form Factor

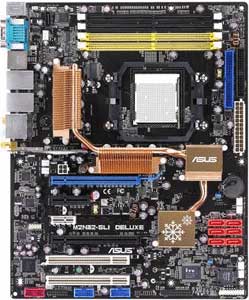

Asus M2N32-SLI Deluxe Motherboard

Asus M2N32-SLI Deluxe Motherboard

Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA nForce ® 590 SLI MCP chipset, 2 x PCI Express x16, 1 x PCI-E x4, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, Dual LAN, USB, IDE, SATA2, eSATA, RAID, Firewire, Wireless, Audio, SPDIF, ATX Form Factor

Asus M2N32-SLI Deluxe Motherboard, Supports AMD Athlon 64X2 / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2, NVIDIA nForce ® 590 SLI MCP chipset, 2 x PCI Express x16, 1 x PCI-E x4, 1 x PCI-E x1, 2 x PCI 32-bit, DDR2, Dual LAN, USB, IDE, SATA2, eSATA, RAID, Firewire, Wireless, Audio, SPDIF, ATX Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 2 x USB 2.0/1.1 headers
    • 1 x S/PDIF output connector
    • 1 x ADH connector
    • 1 x Parallel connector
    • 1 x IEEE1394a connector
    • 7 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 X PS/2 Mouse
    • 1 x IEEE 1394a port
    • 1 x Optical S/PDIF Out port + 1 x Coaxial S/PDIF Out port
    • 1 x External SATA
    • 1 x COM port
    • 1 set 7.1 channel Audio Jack (6 jacks)
    • 1 x WiFi-g antenna jack (Wireless Edition only)
    • 4 x USB 2.0/1.1 ports
    • 2 x RJ 45 Port

  • On-Board LAN:
    • Dual Gigabit LAN controllers support NVIDIA DualNet ® technology
    • NVIDIA nForce ® 590 SLI MCP built-in dual Gigabit MAC with external Marvell PHY
    • Support Teaming and Fail-Over functions
    • Support TCP/IP Acceleration

  • Power Connector :
    • 1 x 24pin main power
    • 1x 4pin CPU power

  • Firewire:
    • TI 1394 controller, supports 2 x 1394a ports

  • Form Factor:
    • ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm)

Asus M2N32-SLI Deluxe Motherboard

  • Model:
    • Asus M2N32-SLI Deluxe Motherboard
  • Processor Support:
    • Supports AMD Athlon 64x2 / Athlon 64FX / Athlon 64 / Sempron
    • AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
    • Supports AMD Cool'n'Quiet Technology
    • AMD Live! Ready
    • Socket AM2

  • FSB:
    • 2000/1600 MTS

  • Chipset:
    • NVIDIA nForce ® 590 SLI MCP
  • Memory:
    • 4 x 240-pin DDR2 DIMM socket support up to 8 GB
    • Support Dual Channel DDR2 800/667/533Mhz
    • ECC and non-ECC, un-buffered
    • DDR2 1066 is supported by AM2+ CPU only

  • Expansion Slots:
    • 2 x PCI Express x16 slot with NVIDIA ® SLI technology support, at full x16, x16 speed
    • 1 x PCI-E x4
    • 1 x PCI Express x1
    • 2 x PCI 32 Bits 2.2
    • Support two identical NVIDIA SLI-Ready graphics cards (both at x16 mode) ASUS two-slot thermal design
    • ASUS PEG Link

  • Storage:
    • NVIDIA nForce ® 590 SLI MCP supports:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 6 x Serial ATA 3Gb/s
    • NVIDIA MediaShield RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial
    • Silicon Image ® 3132 SATA controller supports:
    • 1 x Internal Serial ATA 3.0Gb/s
    • 1 x External Serial ATA 3.0Gb/s port on back I/O (SATA On-the-Go)
    • Support RAID 0, 1, and JBOD

  • Audio:
    • ADI 1988B 8-channel High Definition Audio CODEC
    • Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
    • Coaxial, Optical S/PDIF out on back I/O port
    • Support DTS ® Connect function

  • Wireless LAN:
    • WiFi-AP Solo USB wireless module supports IEEE802.11b/g

  • BIOS:
    • 8Mb Flash ROM, AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
    • WOL by PME, WOR by PME, Chasis Intrusion, PXE
