Asus M3A78 PRO

110499 - Asus M3A78 PRO Supports AMD Phenom FX / Phenom / Athlon 64X2 / Athlon 64 FX / Sempron processor in the Socket AM2+, AMD 780G/SB700 chipset, 1 x PCI Express x16, 2 x PCI-E x1, 3 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (VGA, HDMI), support Hybrid CrossFireX™, Audio, SPDIF, ATX Form Factor
Condition: New- Retail Box, Warranty: 1 year
by Asus
1 review | Add Your Review

$139.05

110499 - M3A78 PRO
Asus M3A78 PRO Supports AMD Phenom FX / Phenom / Athlon 64X2 / Athlon 64 FX / Sempron processor in the Socket AM2+, AMD 780G/SB700 chipset, 1 x PCI Express x16, 2 x PCI-E x1, 3 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (VGA, HDMI), support Hybrid CrossFireX™, Audio, SPDIF, ATX Form Factor

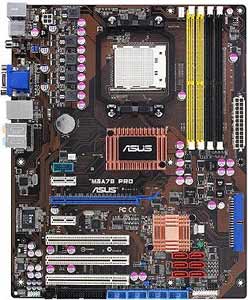

Asus M3A78 PRO Motherboard

Asus M3A78 PRO Motherboard

Supports AMD Phenom FX / Phenom / Athlon 64X2 / Athlon 64 FX / Sempron processor in the Socket AM2+, AMD 780G/SB700 chipset, 1 x PCI Express x16, 2 x PCI-E x1, 3 x PCI 32-bit, DDR2, LAN, USB, IDE, SATA2, RAID, Video (VGA, HDMI), support Hybrid CrossFireX, Audio, SPDIF, ATX Form Factor

Asus M3A78 PRO Supports AMD Phenom FX / Phenom / Athlon 64X2 / Athlon 64 FX /  Sempron processor in the Socket AM2+, AMD 780G/SB700 chipset, 1 x PCI Express x16, 2 x PCI-E x1, 3 x PCI 32-bit, DDR2,  LAN, USB, IDE, SATA2, RAID, Video (VGA, HDMI), support Hybrid CrossFireX™, Audio, SPDIF, ATX Form Factor

  • Internal I/O Interface:
    • 1 x Floppy connector
    • 4 x USB 2.0/1.1 headers
    • 1 x S/PDIF output connector
    • 1 x COM connector
    • 6 x SATA2 ports
    • 1 x IDE Port
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard
    • 1 x PS/2 Mouse
    • 1 x Optical S/PDIF Out port
    • 1 x D-Sub
    • 1 x HDMI
    • 1 set 7.1 channel Audio Jack (6 jacks)
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ 45 Port

  • On-Board LAN:
    • PCIe Gigabit LAN

  • Power Connector :
    • 1 x 24pin main power
    • 1 x 4-pin ATX 12V Power connector

  • Audio:
    • Realtek® ALC1200 8 -Channel High Definition Audio CODEC
    • -Coaxial S/PDIF out port at back I/O

  • Form Factor:
    • ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Asus M3A78 PRO Motherboard

  • Model:
    • Asus M3A78 PRO Motherboard
  • Processor Support:
    • Supports AMD Phenom FX / Phenom / Athlon 64x2 / Athlon 64FX / Sempron
    • Support up to 140W CPU
    • AMD Cool 'n' Quiet Technology
    • Socket AM2+

  • FSB:
    • Up to 5200/MT/s HyperTransport 3.0 interface for AM2+ CPU
    • 2000 / 1600 MT/s for AM2 CPU

  • Chipset:
    • AMD 780G/SB700
  • Memory:
    • 4 x 240-pin DDR2 DIMM socket support up to 8 GB
    • Support Dual Channel DDR2 1066/800/667 Mhz
    • ECC and non-ECC, un-buffered
    • DDR2 1066 is supported by AM2+ CPU only

  • Expansion Slots:
    • 1 x PCIe x16
    • 2 x PCIe x1
    • 3 x PCI 32 Bits 2.2
    • Support PCIe 2.0 / 1.0 Architecture
    • Hybrid CrossFireX Support (For Windows Vista only)

  • Video:
    • Integrated ATI HD 3200 GPU
    • Supports HDMI Technology with max. resolution up to 1920 x 1200 (1080P)
    • Supports DVI with max. resolution up to 1600x1200 @60Hz
    • Supports D-Sub with max. resolution up to 2560x1440 @ 75Hz
    • Hybrid CrossFireX Support (For Windows Vista only)
    • HDMI/DVI/RGB Support
    • Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0
    • Maximum shared memory of 256MB

  • Storage:
    • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    • 6 x SATA 3Gb/s ports (Use SATA1-3 for IDE mode.)
    • Support RAID 0,1,10

  • BIOS:
    • 8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI 2.0a, SM BIOS 2.3,
    • WOL by PME, WOR by PME, Chasis Intrusion, PXE
