111168 - Gigabyte GA-EP45-EXTREME
Condition: New . Warranty:1 year .



Gigabyte GA-EP45-EXTREME Motherboard. Specifications, price and availability

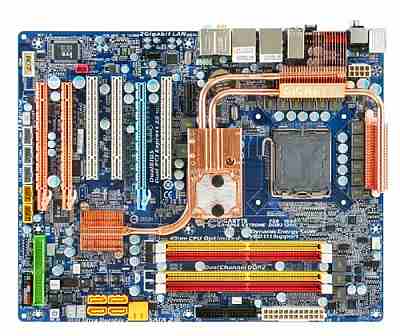

Gigabyte GA-EP45-EXTREME Motherboard

Gigabyte GA-EP45-EXTREME Motherboard, Pentium 4 Socket 775 motherboard with 3 PCI slots, 1 PCI x1 slot, 1 PCI x4 slot, 1 PCI x16 slot running at x16, 1 PCI x16 slot running at x8, Support for SATA RAID, On board Audio,LAN,12 USB ports, ATX form Factor.



Gigabyte GA-EP45-EXTREME Motherboard

Gigabyte GA-EP45-EXTREME Motherboard


  • Rear Panel I/O Ports:
    • 1 x PS/2 keyboard port
    • 1 x PS/2 mouse port
    • 1 x optical S/PDIF Out connector
    • 1 x coaxial S/PDIF Out connector
    • 1 x clearing CMOS switch
    • 8 x USB 2.0/1.1 ports
    • 2 x RJ-45 ports
    • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • Internal I/O Interface:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x floppy disk drive connector
    • 1 x IDE connector
    • 6 x SATA 3Gb/s connectors
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x power fan header
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x CD In connector
    • 1 x S/PDIF In header
    • 1 x S/PDIF Out header
    • 2 x USB 2.0/1.1 headers
    • 3 x IEEE 1394a headers
    • 1 x serial port header
    • 1 x chassis intrusion header
    • 1 x power LED header
    • 1 x power switch
    • 1 x reset switch
  • Hardware Monitoring:
    • System voltage detection
    • CPU/System temperature detection
    • CPU/System fan speed detection
    • CPU overheating warning
    • CPU/System fan fail warning
    • CPU/System fan speed control
  • Special Features:
    • Support for @BIOS
    • Support for Q-Flash
    • Support for Virtual Dual BIOS
    • Support for Download Center
    • Support for Xpress Install
    • Support for Xpress Recovery2
    • Support for EasyTune
    • Support for Dynamic Energy Saver Advanced
    • Support for Time Repair
    • Support for Q-Share

Motherboard Specifications

  • Model:
    • Gigabyte GA-EP45-EXTREME Motherboard
  • Processor Support:
    • Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium Dual-Core processor/Intel Celeron processor in the LGA 775 package
      (Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
    • L2 cache varies with CPU
  • Chipset:
    • North Bridge: Intel P45 Express Chipset
    • South Bridge: Intel ICH10R
  • FSB:
    • 1600/1333/1066/800 MHz FSB
  • Memory:
    • 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
    • Dual channel memory architecture
    • Support for DDR2 1333+/1066/800/667 MHz memory modules
      (Refer to Memory support list for more information)
  • Expansion Slots:
    • 1 x PCI Express x16 slot, running at x16
    • 1 x PCI Express x16 slot, running at x8
      (The PCIEx16 and PCIEx8 slots support ATI CrossFireX technology and conform to PCI Express 2.0 standard.)
    • 1 x PCI Express x4 slots
    • 1 x PCI Express x1 slot
    • 3 x PCI slots
  • On-Board Audio:
    • Realtek ALC889A codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • Support for Dolby Home Theater
    • Support for S/PDIF In/Out
    • Support for CD In
  • On-Board LAN:
    • 2 x Realtek 8111C chips (10/100/1000 Mbit)
    • Support for Teaming
  • Storage:
    • South Bridge:

    6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices

    Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

    iTE IT8213 chip:

    1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

    iTE IT8720 chip:

    1 x floppy disk drive connector supporting up to 1 floppy disk drive

  • BIOS:
    • 2 x 8 Mbit flash
    • Use of licensed AWARD BIOS
    • Support for DualBIOS
    • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Form Factor/Dimension:
    • ATX Form Factor
    • 30.5cm x 24.4cm ( 12 Inch x 9.6 Inch )
