Gigabyte  GA-P45T-ES3G

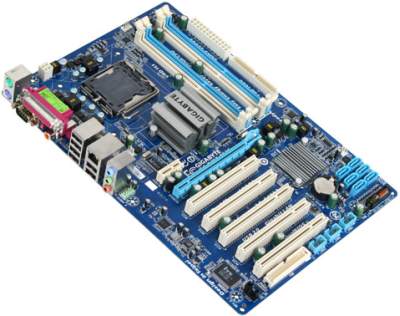

Gigabyte GA-P45T-ES3G

111172 - Gigabyte GA-P45T-ES3G Motherboard, Pentium 4 Socket 775 motherboard with 5 PCI slots, 1 PCI x1 slot, 1 PCI x16,On board audio,LAN,12 USB ports, ATX form Factor.
Condition: New, Warranty: 1 year
by Gigabyte
1 review | Add Your Review

$0.00

111172 - GA-P45T-ES3G
Gigabyte GA-P45T-ES3G Motherboard, Pentium 4 Socket 775 motherboard with 5 PCI slots, 1 PCI x1 slot, 1 PCI x16,On board audio,LAN,12 USB ports, ATX form Factor.

Gigabyte GA-P45T-ES3G Motherboard. Specifications, price and availability

Gigabyte GA-P45T-ES3G Motherboard

Gigabyte GA-P45T-ES3G Motherboard, Pentium 4 Socket 775 motherboard with 5 PCI slots, 1 PCI x1 slot, 1 PCI x16,On board audio,LAN,12 USB ports, ATX form Factor.



Gigabyte GA-P45T-ES3G Motherboard

Gigabyte GA-P45T-ES3G Motherboard

  • Internal I/O Interface:
    • 1 x 24-pin ATX main power connector
    • 1 x 4-pin ATX 12V power connector
    • 1 x floppy disk drive connector
    • 1 x IDE connector
    • 6 x SATA 3Gb/s connectors
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x CD In connector
    • 1 x S/PDIF Out header
    • 3 x USB 2.0/1.1 headers
    • 1 x power LED header
    • 1 x chassis intrusion header
    • 1 x clearing CMOS jumper
  • Hardware Monitoring:
    • System voltage detection
    • CPU/System temperature detection
    • CPU/System fan speed detection
    • CPU overheating warning
    • CPU/System fan fail warning
    • CPU/System fan speed control
      * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
  • Special Features:
    • Support for @BIOS
    • Support for Q-Flash
    • Support for Xpress BIOS Rescue
    • Support for Download Center
    • Support for Xpress Install
    • Support for Xpress Recovery2
    • Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    • Support for Easy Energy Saver
      * Due to the hardware limitation, you must install the Intel ® Core 2 Extreme/ Core 2 Quad/Core 2 Duo/ Pentium Dual-Core/ Celeron Dual-Core/ Celeron 400 Series CPU to enable support for Easy Energy Saver.
    • Support for Smart Recovery
    • Support for Auto Green
    • Support for ON/OFF Charge
    • Support for Q-Share
  • BIOS:
    • 2 x 8 Mbit flash
    • Use of licensed AWARD BIOS
    • Support for DualBIOS
    • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b



Motherboard Specifications

  • Model:
    • Gigabyte GA-P45T-ES3G Motherboard
  • Processor Support:
    • Support for an Intel ® Core 2 Extreme processor/ Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor/Intel ® Celeron ® processor in the LGA775 package (Go to GIGABYTE's website for the latest CPU support list.)
    • L2 cache varies with CPU
  • Chipset:
    • North Bridge: Intel ® P45 Express Chipset
    • South Bridge: Intel ® ICH10
  • FSB:
    • 1600/1333/1066 MHz FSB
  • Memory:
    • 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
      * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
    • Dual channel memory architecture
    • Support for DDR3 1600/1333/1066 MHz memory modules
    • Support for non-ECC memory modules
  • Expansion Slots:
    • 1 x PCI Express x16 slot, running at x16
    • 1 x PCI Express x1 slot
    • 5 x PCI slots
  • On-Board Audio:
    • Realtek ALC892 codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
      * To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • Support for S/PDIF Out
    • Support for CD In
  • On-Board LAN:
    • 1 x Realtek RTL8111D chip (10/100/1000 Mbit)
  • Rear Panel I/O Ports:
    • 1 x PS/2 keyboard port
    • 1 x PS/2 mouse port
    • 1 x parallel port
    • 1 x serial port
    • 1 x coaxial S/PDIF Out connector
    • 6 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks (Line In/Line Out/Microphone)
  • Storage:
    • South Bridge:

      6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

    • JMicron JMB368 chip:

      1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

    • iTE IT8718 chip:

      1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • Form Factor:
    • ATX Form Factor;
    • 30.5cm x 19.4cm ( 12 Inch x 7.6 Inch)
