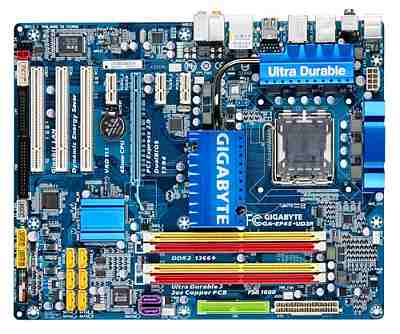

Gigabyte GA-EP45-UD3R Motherboard

Gigabyte GA-EP45-UD3R Motherboard

• Storage:
  • South Bridge:

    6x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
    Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10

  • GIGABYTE SATA2 chip:

    1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
    Support for SATA RAID 0, RAID 1 and JBOD

  • iTE IT8718 chip:

    1 x floppy disk drive connector supporting up to 1 floppy disk drive

• Rear Panel I/O Ports:
  • 1 x PS/2 mouse port
  • 1 x PS/2 keyboard/mouse port
  • 1 x optical S/PDIF Out connector
  • 1 x coaxial S/PDIF Out connector
  • 8 x USB 2.0/1.1 ports
  • 2 x IEEE 1394a ports
  • 1 x RJ-45 ports
  • 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x floppy disk drive connector
  • 1 x IDE connector
  • 8 x SATA 3Gb/s connectors
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x power fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x CD In connector
  • 1 x S/PDIF In header
  • 1 x S/PDIF Out header
  • 2 x USB 2.0/1.1 headers
  • 1 x IEEE 1394a header
  • 1 x parallel port header
  • 1 x serial port header
  • 1 x power LED header
  • 1 x chassis intrusion header
• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control

Motherboard Specifications

• Model:
  • Gigabyte GA-EP45-UD3R Motherboard

• Processor Support:
  • Support for an Intel Core 2 Extreme processor/ Intel � Core 2 Quad processor/Intel Core 2 Duo processor/ Intel � Pentium � processor Extreme Edition/Intel � Pentium � D processor/ Intel � Pentium � 4 processor Extreme Edition/Intel � Pentium � 4 processor/ Intel � Celeron � processor in the LGA 775 package
    (Refer to CPU support list for more information)
  • L2 cache varies with CPU

• Chipset:
  • North Bridge: Intel P45 Express Chipset
  • South Bridge: Intel ICH10R

• FSB:
  • 1600/1333/1066/800 MHz FSB

• Memory:
  •  4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
  • Dual channel memory architecture
  • Support for DDR2 1366+*/1066/800/667 MHz memory modules
    * Refer to Memory Support List for more information.

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard)
  • 3 x PCI Express x1 slot
  • 3 x PCI slots

• On-Board Audio:
  • Realtek ALC889A codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF In/Out
  • Support for CD In

• On-Board LAN:
  • 1 x Realtek 8111C chips (10/100/1000 Mbit)



• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Dual BIOS
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune 6
  • Support for Dynamic Energy Saver Advanced
  • Support for Time Repair
  • Support for Q-Share



• BIOS:
  • 2 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for Dual BIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b



• Form Factor/Dimension:
  • ATX Form Factor
  • 30.5cm x 24.4cm ( 12 Inch x 9.6 Inch)
