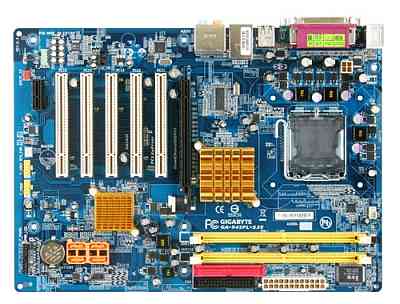

Gigabyte GA-945PL-S3E Motherboard
Gigabyte GA-945PL-S3E Motherboard, Pentium 4 Socket 775 Motherboard
with 5 PCI slots, 1 PCI x1 slot, 1 PCI x16 slot, DDR2 RAM, On
Board Audio, LAN, 4 USB ports, ATX form Factor. |
|
Gigabyte GA-945PL-S3E Motherboard
- Rear Panel I/O Ports:
- 4 USB 2.0/1.1 ports
- 1 RJ45 ports
- PS/2 Keyboard/ Mouse
- 1 COM port connector
- 1 LPT port
- 6 audio jacks (Line In / Line Out / MIC In / Surround Speaker
Out (Rear Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker
Out)
- Internal I/O Interface:
- 4 Serial ATA II 3.0Gb/s connectors
- 1 UDMA ATA 100/66/33 connectors
- 1 SPDIF IN/OUT connectors
- 1 FDD connector
- 2 USB 2.0/1.1 connector (supports 4 ports)
- 2 Cooling fan pin headers
- 1 CD IN connector
- 1 Chassis Intrusion connector
- BIOS:
- 1 4 Mbit flash ROM
- Use of licensed AWARD BIOS
- Supports Virtual Dual BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
|
Motherboard Specifications
- Model:
- Gigabyte GA-945PL-S3E Motherboard
- Processor Support:
- LGA775 Intel ® Core 2 Extreme/ Intel ® Core 2 Duo processor*
- Intel ® Pentium ® D Processor
- Intel ® Pentium ® 4 Processor
- Chipset:
- Northbridge: Intel ® 945 Express Chipset
- Southbridge: Intel ® ICH7
- FSB:
- Supports 1066/800/533MHz FSB*
- Memory:
- 2 DDR2 DIMM memory slots (supports up to 2GB memory)
- Supports 1.8V DDR2 DIMM
- Supports dual channel DDR2 667/533/400 DIMM
* Due to standard PC architecture, a certain amount of memory is
reserved for system usage and therefore the actual memory size is
less than the stated amount.
- Expansion Slots:
- 1 PCI Express x 16 slot
- 1 PCI Express x 1 slots
- 5 PCI slots
- On-Board Audio:
- Realtek ALC888 8 Channel Audio Codec
- On-Board LAN:
- Realtek 8111B Gigabit Ethernet controller
- Special Features:
- Supports @BIOS
- Supports Download Center
- Supports Q-Flash
- Supports EasyTune 5
- Supports Xpress Install
- Supports Xpress Recovery2
- Supports Virtual DualBIOS
- Form Factor/Dimension:
- ATX form factor
- 305mm x 190mm (12 Inch x 7.5 Inch)
|
