X6DHR-EG2

112235 - Intel Socket LGA 604 Motherboard, with 2 PCI-e x8 Slots/2 SXB-E Slots/2 PCI Slots, on board video and LAN, 4 USB Ports, 2 SATA Ports, 8 DIMM Sockets and Extended ATX Form Factor
Condition: New, Warranty: 1 year
by
1 review | Add Your Review

$0.00

112235 - X6DHR-EG2
Intel Socket LGA 604 Motherboard, with 2 PCI-e x8 Slots/2 SXB-E Slots/2 PCI Slots, on board video and LAN, 4 USB Ports, 2 SATA Ports, 8 DIMM Sockets and Extended ATX Form Factor

Supermicro X6DHR-iG2 Motherboard. Specifications, price and availability

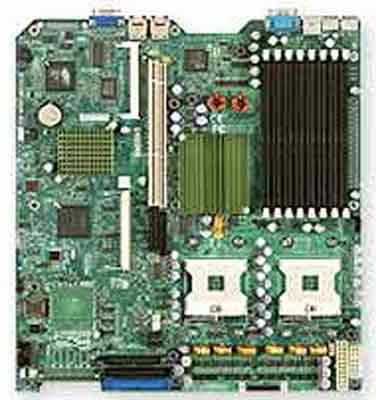

Supermicro X6DHR-iG2 Motherboard

Intel Socket LGA 604 Motherboard, with 2 PCI-e x8 Slots/2 SXB-E Slots/2 PCI Slots, on board video and LAN, 4 USB Ports, 2 SATA Ports, 8 DIMM Sockets and Extended ATX Form Factor



Supermicro X6DHR-iG2 Motherboard

Supermicro X6DHR-iG2   Motherboard

  • Storage:
    • Intel ICH5R SATA Controller
    • RAID 0, 1, JBOD support
    • Support for Intelligent Platform Management Interface v.2.0 (OptionalIPMI20-E)
  • Rear Panel I/O Ports:
    • Super I/O: Winbond 83627HF chip
    • Two Serial ATA ports
    • Two SATA hard drives supported
    • Dual EIDE channels support up to four UDMA IDE devices
    • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
    • 1 Floppy controller; 1.44 MB, 2.88 MB
    • 2x RJ45 LAN ports
    • 2x USB rear ports
    • 2x USB internal headers
    • USB 2.0 Compliant / 1.1 Compliant
    • 1x VGA port
    • PS/2 keyboard and mouse ports
    • 2 Fast UART 16550 serial ports
  • Special Features:
    • Important Chassis Notes: To ensure system stability, a 420W (minimum) ATX power supply
    • [4-pin (+12V), 8-pin (+12V) and 20-pin are required]
    • Chassis must have CPU mounting holes required for 800MHz FSB CPUs with this serverboard.
  • Hardware Monitoring:
    • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
    • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V - 1.6V
    • FAN: Total of five 3-pin fan headers
    • 5x fans with status monitoring
    • Status monitor with firmware/software on/off control
    • Fan speed control
    • Temperature: Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 support
    • CPU Overheat LED
    • System Overheat LED
    • Chassis intrusion detection
    • Chassis intrusion header
    • SDDC support

Motherboard Specifications

  • Model:
    • Supermicro X6DHR-iG2   Motherboard
  • Processor Support:
    • Dual 604-pin FC-mPGA4 Sockets
    • Supports up to two  Intel ® 64-bit Xeon ®processor(s) of the same type below Xeon (Nocona) CPU  with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz Xeon (Irwindale) CPU  with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz Xeon LV (Low Voltage) CPU, up to 2.8 GHz
  • Chipset:
    • Intel ® E7520 chipset
    • MCH + ICH5R + PXH +82546GB
  • FSB:
    • 800 MHz system bus
  • Memory:
    • Eight 240-pin DIMM sockets
    • Supports up to 16 GB DDR2 400MHz memory
    • Dual-channel memory bus
    • Memory must be populated in pairs
    • Single-rank modules are recommended for 6+ DIMM support
    • DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
    • 256 MB, 512 MB, 1GB, 2GB, 4GB**
    • 1.8V only
    • Error Detections: Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    • Supports Intel ® x4 Single Device Data Correction (SDDC)
  • Expansion Slots:
    • 2 x Universal (SXB-E) slots
      [ 2 (x8) PCI-Express Slots ]
      OR
      [ 1x 64-bit PCI-X 133MHz slot +
        1x 64-bit PCI-X 100MHz slot ]

  • On-Board Video:
    • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
  • On-Board LAN:
    • Intel ® 82546GB Dual Port Gigabit Controller
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Form Factor:
    • Extended ATX
    • 12" x 13.05" (30.5cm x 33.2cm)
  • Manageability:
    • Optional IPMI (Intelligent Platform Management Interface) 2.0
    • SuperDoctor ® III
    • Watch Dog
    • NMI
    • ACPI/APM Power Management
    • Main Switch Override Mechanism
    • Wake-On-Ring (WOR) header
    • Wake-On-LAN (WOL) header
    • CPU Fan auto-off in sleep mode
    • Power-on mode control for AC power loss recovery
    • Internal/External modem remote ring-on
  • BIOS:
    • 8Mb Flash EEPROM with Phoenix ® BIOS
    • Features: Plug and Play (PnP)
    • SMBIOS 2.3
    • DMI 2.1
    • ACPI 1.0
    • Fan Speed Control
