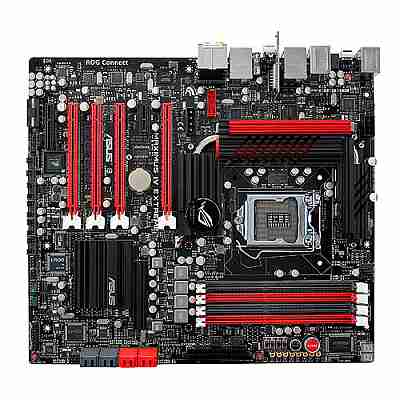

ASUS Maximus IV Extreme Motherboard

• Rear Panel I/O Ports:
  • 8 x USB 3.0/2.0
    1 x PS/2 Keyboard/Mouse Combo port
  • 2 x External SATA
  • 1 x S/PDIF Out (Optical)
  • 2 x LAN(RJ45) port
  • 1 (also for ROG Connect)   Channel Audio I/O
  • 1 x Clr CMOS switch
  • 1 x ROG Connect On/Off switch
  • 1 x RC Bluetooth switch
• Internal I/O Interface:
  • 4 x SATA 6.0Gb/s connectors (Red)
  • 1 x 8-pin ATX 12V Power connector
  • 1 x Power-on switch
  • 1 x Reset switch
  • 1 x USB 3.0/2.0 connector(s) (Red) supports additional 2 USB 3.0 ports
  • 4 x USB 2.0/1.1 connector(s) support additional 8 USB 2.0 ports
  • 1 x Front panel audio connector
  • 1 x System Panel connector
  • 1   x CPU Fan connector
  • 3 x Chassis Fan connector
  • 1 x Power Fan connector
  • 3 x Optional Fan connector
  • 1 x S/PDIF Out connector
  • 1 x 24-pin ATX Power connector
  • 7 x ProbeIt measurement points
  • 3 x Thermal sensor connectors
  • 1 x En/Dis-able Clr CMOS header
  • 2 x EZ Plug connectors (4-pin Molex Power connectors)
  • 1 x RC Bluetooth header
  • 1 x LN2 Mode switch
  • 1 x Q_Reset switch
  • 1 x Go Button
  • 1 x BIOS switch button
  • 1 x ROG light connector

• USB Ports:
  • 1 x NEC USB3.0 Controller with 2 x VIA SuperSpeed USB hub controllers:
  • 6 x USB 3.0/2.0 ports at rear
  • 2 x USB 3.0/2.0 ports at mid-board for front panel support Intel ® P67 Express Chipset
  • USB 2.0/1.1 ports (8 ports at mid-board, 1 port at rear is also for ROG connect)
  • 9 1 x NEC USB3.0 Controller
  • 2 x USB 3.0/2.0 ports at rear

• Overclocking Features:
  • ROG Connect
  • RC Bluetooth
  • ROG iDirect
  • USB BIOS Flashback
  • ROG Extreme Engine Digi+
    8-phase CPU power
    3-phase Memory power
    ML Cap on CPU only
    BIOS Flashback with onboard switch button
    ProbeIt
    Extreme Tweaker
    iROG
    Loadline Calibration
  • ROG OC Kit
    LN2 Mode
    PCIe x16 Lane Switch
    Debug LED
    Q_Reset
  • EFI BIOS features
    ROG BIOS Print
    GPU.DIMM Post
    CPU Socket Monitor
  • Intelligent overclocking tools:
    ASUS TurboV Evo
    O.C Profile
  • Overclocking Protection:
    COP EX (Component Overheat Protection - EX)
    Voltiminder LED
    ASUS C.P.R.(CPU Parameter Recall)

Motherboard Specifications

• Model:
  • ASUS Maximus IV Extreme Motherboard

• CPU:
  • Intel ® Socket 1155 Core i5 Processor/Core i3 Processor/Core i7 Processor
  • Supports Intel ® Turbo Boost Technology 2.0
  • Support Intel ® 32nm CPU
    * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for Intel CPU support list
• Chipset:
  • Intel ® P67 Express Chipset
• Memory:
  • * The Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.
  • 4 x DIMM, Max. 32 GB, DDR 1866(O.C.)/2133(O.C.)/2200(O.C.)/1600/1333 Non-ECC,Un-buffered Memory
  • Dual Channel memory architecture
  • Please refer to www.asus.com or user manual for Memory QVL.
    * Supports Intel ® Extreme Memory Profile (XMP)
• Expansion Slots:
  • (single @x16, dual @x8, triple @x8, x16, x16 )
  • 4 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x4
  • 1 x PCIe 2.0 x 1
• On-Board Audio:
  • Realtek ALC889 8-Channel High Definition Audio CODEC
  • Blu-ray audio layer Content Protection
  • Supports Jack-Detection, Multi-streaming, Front Panel Jack-Retasking
  • Supports 1 x Optical S/PDIF out port at back I/O
• Multi-GPU Support:
  • Support NVIDIA ® 3-Way SLI / ATI CrossFireX Technology

• Accessories:
  • 2 x SATA 3.0Gb/s signal cables (2-in-1)
  • 2 x SATA 6.0Gb/s signal cables (2-in-1)
  • 1 x Q-Connecor Kit (2-in-1)
  • User's manual
  • 1 USB2.0 module
  • 1 x I/O Shield
  • 1 x ROG Connect Cable
  • 1 x ProbeIt cable set
  • 1 x Thermal Sensor Cable Pack
  • 1 x 3-Way SLI bridge
  • 1 x SLI Cable
  • 1 x Crossfire cable
  • 1 x Cable Ties Pack
  • 1 x ROG Theme Label
  • 1 x 12-in-1 ROG Cable Label
  • 1 x RC Bluetooth card
  • 1 x ROG exclusive feature guide
• Manageability:
  • WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
• Support Disc:
  • Drivers
  • ASUS AI Suite II
  • ROG CPU-Z
  • 3DMark Vantage
  • Kaspersky ® Anti-Virus 1-year license
• Storage:
  • Intel ® P67 Express Chipset
  • 2 xSATA 6.0 Gb/s ports   (Red)
  • 4 xSATA 3Gb/s ports (Gray)
  • Intel ® Rapid Storage Technology Support RAID 0,1,5,10
  • Marvell ® 9182 PCIe SATA6Gb/s controller
  • 2 xSATA 6Gb/s ports (Red)
  • JMicron ® 362 controller
  • 2 xExternal SATA 3Gb/s ports at rear (SATA On-the-Go)
    * Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.

• Special Features:
  • CPU Level Up
  • MemOK!
  • Onboard Switches: Power / Reset / Clr CMOS (at rear)
  • Q-Fan Plus
  • ASUS Fan Xpert
  • ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  • ASUS Q-Connector
  • ASUS Q-Shield
  • ASUS Q-Slot
  • ASUS Q-DIMM
  • ASUS EZ Flash 2
  • ASUS CrashFree BIOS 3
  • ASUS MyLogo 2
• On-Board LAN:
  • 2 x Intel ® Gigabit LAN

• BIOS:
  • 32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS

• Bluetooth:
  • Bluetooth Module Accessory Card
  • Bluetooth V2.0/V2.1+EDR
  • RC Bluetooth On/Off Switch
• Form Factor:
  • Extended ATX Form Factor
  • 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
