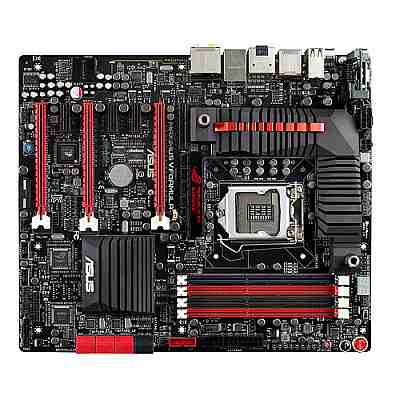

ASUS Maximus V Formula Motherboard

• Rear Panel I/O Ports:
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x eSATA 3Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0
  • 4 x USB 2.0
  • 1 x Optical S/PDIF out
  • 1 x Optical S/PDIF in
  • 5 x Audio jack(s)
  • 1 x Clear CMOS button(s)
  • 1 x ROG Connect On/ Off switch(es)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 6 x SATA 6Gb/s connector(s)
  • 2 x SATA 3Gb/s connector(s)
  • 2 x CPU Fan connector(s) (4 -pin)
  • 3 x Chassis Fan connector(s) (4 -pin)
  • 3 x Optional Fan connector(s) (4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Slow Mode switch(es)
  • 8 x ProbeIt Measurement Points
  • 3 x Thermal sensor connector(s)
  • 1 x LN2 Mode header(s)
  • 1 x EZ Plug connector(s) (4-pin Molex power connector)
  • 1 x Power-on button(s)
  • 1 x Reset button(s)
  • 1 x Go Button(s)
  • 1 x mPCIe Combo header(s)

• USB Ports:
  • Intel ® Z77 chipset :
  • 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • Intel ® Z77 chipset :
  • 8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board)
  • ASMedia ® USB 3.0 controller :
  • 2 x USB 3.0 port(s) (2 at back panel, blue)
• Overclocking Features:
  • mPCIe Combo (mPCIe/mSATA combo card)
  • ROG Connect :
    RC Diagram
    RC Remote
    RC Poster
    GPU TweakIt
  • Extreme Engine Digi+ II :
    8 -phase CPU power design + 4 -phase iGPU power design
    2 -phase Memory power design
  • ROG Extreme OC kit :
    Slow Mode
    LN2 Mode
    EZ Plug
    ProbeIt
  • UEFI BIOS features :
    ROG BIOS Print
    GPU.DIMM Post
  • GameFirst II
  • iROG
  • Extreme Tweaker
  • Loadline Calibration
  • USB BIOS Flashback
  • Overclocking Protection :
    ASUS C.P.R.(CPU Parameter Recall)
• Wireless Data Network:
  • Wi-Fi 802.11 a/b/g/n
  • Supports dual band frequency 2.4/5 GHz
• Bluetooth:
  • Bluetooth V4.0
  • Bluetooth V3.0+HS
• Accessories:
  • User's manual
  • I/O Shield
  • 2 x SATA 3Gb/s cable(s)
  • 4 x SATA 6Gb/s cable(s)
  • 1 x SLI bridge(s)
  • 1 x Q-connector(s) (2 in 1)
  • 1 x ROG Connect cable(s)
  • 1 x 12 in 1 ROG Cable Label(s)
  • 1 x mPCIe Combo card(s) with dual band WiFi 802.11 a/b/g/n module + Bluetooth v4.0/3.0+HS module
  • 1 x 2-in-1 RF Cable(s)
  • 2 x Wi-Fi Ring Moving Antenna(s)

Motherboard Specifications

• Model:
  • ASUS Maximus V Formula Motherboard

• CPU:
  • Intel ® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium ®/Celeron ® Processors
  • Supports Intel ® 22 nm CPU
  • Supports Intel ® 32 nm CPU
  • Supports Intel ® Turbo Boost Technology 2.0
    * The Intel ® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
• Chipset:
  • Intel ® Z77
• Memory:
  • 4 x DIMM, Max. 32GB, DDR3 2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel ® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
• Expansion Slots:
  • 3 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4) *2
  • 1 x PCIe 2.0 x4
  • 3 x PCIe 2.0 x1
  • 1 x mini-PCIe 2.0 x1 *3
• On-Board Audio:
  • SupremeFX IV built-in 7.1-Channel High Definition Audio CODEC
    Output Signal-to-Noise Ratio (A-Weighted): 110 dB
    Output THD+N at 1kHz: 95 dB
    TI 6120A2 high fidelity headphone amplifier
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
    SupremeFX Shielding Technology
    ELNA premium audio capacitors
    1500 uF Audio Power Capacitor
    Blu-ray audio layer Content Protection
    DTS Ultra PC II
    DTS Connect
    Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports NVIDIA ® SLI Technology
  • Supports AMD 3-Way CrossFireX Technology
  • Supports AMD CrossFireX Technology
  • Supports LucidLogix ® Virtu MVP Technology *1
• On-Board Video:
  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/DisplayPort ports
    Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
    Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
    Supports Intel ® HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Manageability:
  • WfM2.0, DMI2.0, WOL by PME, PXE
• Support Disc:
  • Drivers
  • Kaspersky ® Anti-Virus
  • DAEMON Tools Pro Standard
  • GameFirst II
  • ROG CPU-Z
  • Mem TweakIt
  • ASUS AI Suite II
  • ASUS WebStorage
  • ASUS Utilities
• Storage:
  • IIntel ® Z77 chipset :
  • 2 x SATA 6Gb/s port(s), red
  • 2 x SATA 3Gb/s port(s), black
  • 1 x eSATA 3Gb/s port(s), red
  • 1 x mini-SATA 3Gb/s port(s) , black
  • Support Raid 0, 1, 5, 10
  • Supports Intel ® Smart Response Technology, Intel ® Rapid Start Technology, Intel ® Smart Connect Technology *4
  • ASMedia ® PCIe SATA controller : *5
  • 4 x SATA 6Gb/s port(s), red
• Special Feature:
  • ASUS TurboV EVO :
    CPU Level Up
  • ASUS EPU :
    EPU
  • ASUS Wi-Fi GO!
    Wi-Fi GO! Function: DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard & Mouse, File Transfer,
  • Capture & Send
  • ASUS Exclusive Features :
    AI Suite II
    Ai Charger+
    USB Charger+
    USB 3.0 Boost
    Disk Unlocker
  • ASUS Quiet Thermal Solution :
    ASUS Fan Xpert 2
  • ASUS EZ DIY :
    ASUS O.C. Profile
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 2
  • ASUS Q-Design :
    ASUS Q-Shield
    ASUS Q-Code
    ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    ASUS Q-Slot
    ASUS Q-DIMM
    ASUS Q-Connector
• On-Board LAN:
  • Intel ®, 1 x Gigabit LAN Controller(s)

• BIOS:
  • 64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS

• Form Factor:
  • Extended ATX Form Factor
  • 12 inch x 10.1 inch ( 30.5 cm x 25.7 cm )
