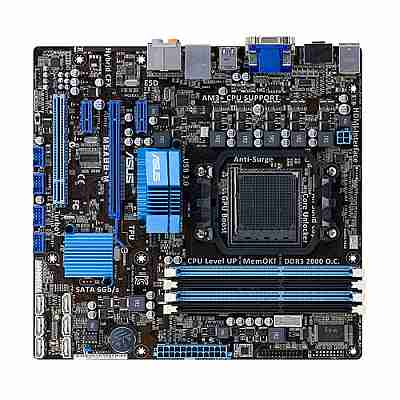

ASUS M5A88-M Motherboard
ASUS M5A88-M Motherboard, Supports AMD AM3+ FX/Phenom II/Athlon
II/Sempron 100 Series Processors, 1 PCI Slot, 2 PCI Slot X1, 1 PCI Express x16 slot,
Support for SATA2, Raid, VGA Port, DVI-D Port, HDMI Port, DDR3 RAM, On
Board Audio, Video, LAN, 14 USB ports, Micro ATX
form Factor. |
|
ASUS M5A88-M Motherboard
- Rear Panel I/O Ports:
- 1 x PS/2 keyboard/mouse combo port(s)
- 1 x DVI
- 1 x D-Sub
- 1 x HDMI
- 1 x LAN (RJ45) port(s)
- 2 x USB 3.0
- 4 x USB 2.0
- 1 x Optical S/PDIF out
- 6 x Audio jack(s)
- Internal I/O Interface:
- 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
- 1 x COM port(s) connector(s)
- 6 x SATA 6Gb/s connector(s)
- 1 x CPU Fan connector(s)
- 1 x Chassis Fan connector(s)
- 1 x S/PDIF out header(s)
- 1 x 24-pin EATX Power connector(s)
- 1 x 4-pin ATX 12V Power connector(s)
- 1 x parallel port connector(s)
- 1 x Front panel audio connector(s) (AAFP)
- 1 x System panel(s)
- 1 x MemOK! button(s)
- 1 x Core Unlocker switch(es)
- USB Ports:
- AMD SB850 controller :
- 12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board)
- ASMedia ® USB 3.0 controller :
- 2 x USB 3.0 port(s) (2 at back panel, blue)
- Over clocking Features:
- Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
- Accessories:
- User's manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 1 x Q-connector(s) (1 in 1) *2
- On-Board LAN:
- Realtek ® 8111E , 1 x Gigabit LAN Controller(s)
- BIOS:
- 16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5,
ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
- Support Disc:
- Drivers
- ASUS Utilities
- ASUS Update
- Anti-virus software (OEM version)
- Manageability:
- WOL by PME, WOR by PME, WOR by Ring, PXE
|
Motherboard Specifications
- CPU:
- AMD AM3+ FX/Phenom II/Athlon II/Sempron 100 Series
Processors
- Supports AM3+ 32 nm CPU
- Supports CPU up to 140 W
- AMD Cool 'n' Quiet Technology
* Refer to www.asus.com for CPU support list
- Chipset:
- Memory:
- 4 x DIMM, Max. 16GB, DDR3
2000(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066 Hz Non-ECC, Un-buffered
Memory
- Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified
Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity
or more, Windows ® 32-bit operation system may only recognize less
than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB
or more memory on the motherboard.
* AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz
as its standard memory frequency.
* When overclocking, some AMD CPU models may not support DDR3 1600
MHz or higher frequency DIMMs
* Due to CPU spec., AMD 100 and 200 series CPUs support up to DDR3
1066MHz. With ASUS design, this motherboard can support up to DDR3
1333MHz.
- Expansion Slots:
- 1 x PCIe 2.0 x16
- 2 x PCIe 2.0 x1
- 1 x PCI
- On-Board Audio:
- Realtek ® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port(s) at back panel
- On-Board Video:
- Integrated ATI Radeon HD 4250 GPU
- Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 85 Hz
- Maximum shared memory of 1024 MB
- Hybrid CrossFireX Support
- Blu-ray playback support *1
- Supports DirectX 10.1, OpenGL 2.0, Shader Model 4.1
- Storage:
- AMD SB850 controller :
- 6 x SATA 6Gb/s port(s), white
- Support Raid 0, 1, 5, 10
- Special Features:
- ASUS Xtreme Design :
- ASUS Hybrid Processor - TurboV EVO :
Turbo Unlocker
Auto Tuning
TurboV
CPU Level Up
GPU Boost
- ASUS Hybrid Switch :
Core Unlocker
- ASUS Power Design :
ASUS EPU
- ASUS Exclusive Features :
MemOK!
Anti-Surge
- ASUS Quiet Thermal Solution :
Stylish Fanless Design Heat-sink solution
ASUS Fan Xpert
- ASUS EZ DIY :
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
- 100% All High-quality Conductive Polymer Capacitors
- Form Factor:
- uATX Form Factor
- 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
|
