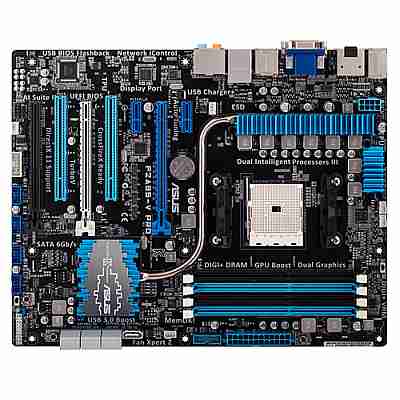

ASUS F2A85-V PRO Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI
  • 1 x D-Sub
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x eSATA
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0 (blue)
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 7 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 x -pin)
  • 4 x Chassis Fan connector(s) (4 x -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x DirectKey Button(s)
  • 1 x DRCT header(s)
  • 1 x MemOK! button(s)
  • 1 x TPU switch(es)
  • 1 x EPU switch(es)
  • 1 x USB BIOS Flashback button(s)

• USB Ports:
  • ASMedia ® USB 3.0 controller :
  • 2 x USB 3.0 port(s) (2 at back panel, blue)
  • AMD A85X FCH(Hudson D4) chipset :
  • 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)
  • AMD A85X FCH(Hudson D4) chipset :
  • 10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board)
• Over clocking Features:
  • Overclocking Protection :
  • ASUS C.P.R.(CPU Parameter Recall)
• On-Board LAN:
  • Realtek ® 8111F, 1 x Gigabit LAN Controller(s)

• BIOS:
  • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Support Disc:
  • Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version)

Motherboard Specifications

• Model:
  • ASUS F2A85-V PRO Motherboard

• CPU:
  • AMD Socket FM2 Athlon/A- Series Processors
  • Supports CPU up to 4 cores
  • Supports AMD ® Turbo Core 3.0 Technology
• Chipset:
  • AMD A85X FCH(Hudson D4)
• Memory:
  • 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Support AMD Memory Profile (AMP) memory
    * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
• Expansion Slots:
  • 3 x PCIe 2.0 x16 (x16 or dual x8)
  • 1 x PCIe 2.0 x16 (x4 mode)
  • 2 x PCIe 2.0 x1
  • 2 x PCI
• On-Board Audio:
  • Realtek ® ALC892 8-Channel High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
  • Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports AMD 3-Way CrossFireX Technology
  • Supports LucidLogix ® Virtu MVP Technology *2
• On-Board Video:
  • Integrated AMD Radeon HD 7000 Series Graphics in A-series APU
  • Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
  • Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
  • Supports DVI with max. resolution 2560 x 1600 @ Hz
  • Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
  • Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
  • Maximum shared memory of 2048 MB
  • AMD ® Dual Graphics technology support *1
  • Supports DirectX 11
• Storage:
  • AMD A85X FCH(Hudson D4) chipset :
  • 7 x SATA 6Gb/s port(s), gray
  • 1 x eSATA 6Gb/s port(s), red
  • Support Raid 0, 1, 5, 10, JBOD
• Special Features:
  • ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control :
  • SMART DIGI+ :
    Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior APU/DRAM overclocking performance with one click.
  • ASUS TPU :
    Auto Tuning
    TurboV
    GPU Boost
    TPU switch
  • ASUS EPU :
    EPU
    EPU switch
  • ASUS Digital Power Design :
    Industry leading Digital 6 +2 Phase Power Design
    CPU Power Utility
    DRAM Power Utility
  • ASUS Exclusive Features :
    Remote GO!
    USB BIOS Flashback
    MemOK!
    AI Suite II
    Ai Charger+
    USB Charger+
    Anti-Surge
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    Network iControl
    USB 3.0 Boost
    Disk Unlocker
  • ASUS Quiet Thermal Solution :
    Stylish Fanless Design Heat-pipe solution
    ASUS Fan Xpert 2
  • ASUS EZ DIY :
    DirectKey
    Precision Tweaker 2
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 2
    ASUS MyLogo 2
  • ASUS Q-Design :
    ASUS Q-Shield
    ASUS Q-Slot
    ASUS Q-Connector
  • 100% All High-quality Conductive Polymer Capacitors

• Form Factor:
  • M-ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
