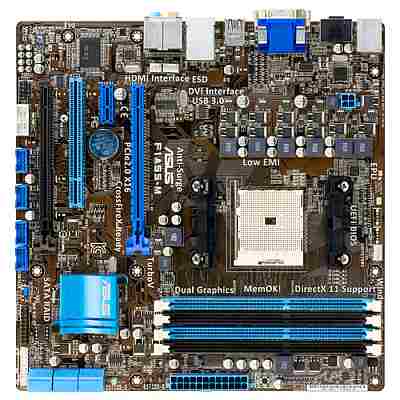

Asus F1A55-M/CSM

113000 - ASUS F1A55-M/CSM Motherboard, Supports AMD E2- Series Processors, 1 PCI Slot, 1 PCI Slot X1, 2 PCI Express x16 slots, Support for SATA2, Raid, VGA Port, DVI-D Port, HDMI Port, DDR3 RAM, On Board Audio, Video, LAN, 14 USB ports, Micro ATX form Factor.
Condition: New, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

113000 - F1A55-M/CSM
ASUS F1A55-M/CSM Motherboard, Supports AMD E2- Series Processors, 1 PCI Slot, 1 PCI Slot X1, 2 PCI Express x16 slots, Support for SATA2, Raid, VGA Port, DVI-D Port, HDMI Port, DDR3 RAM, On Board Audio, Video, LAN, 14 USB ports, Micro ATX form Factor.

ASUS F1A55-M/CSM Motherboard. Specifications, price and availability

ASUS F1A55-M/CSM Motherboard

ASUS F1A55-M/CSM Motherboard, Supports AMD E2- Series Processors, 1 PCI Slot, 1 PCI Slot X1, 2 PCI Express x16 slots, Support for SATA2, Raid, VGA Port, DVI-D Port, HDMI Port, DDR3 RAM, On Board Audio, Video, LAN, 14 USB ports, Micro ATX form Factor.



ASUS F1A55-M/CSM Motherboard

ASUS F1A55-M/CSM Motherboard

  • Rear Panel I/O Ports:
    • 1 x PS/2 keyboard (purple)
    • 1 x DVI
    • 1 x D-Sub
    • 1 x HDMI
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.0
    • 4 x USB 2.0
    • 1 x Optical S/PDIF out
    • 6 x Audio jack(s)
  • Internal I/O Interface:
    • 4 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
    • 1 x TPM connector(s)
    • 1 x COM port(s) connector(s)
    • 6 x SATA 3Gb/s connector(s)
    • 1 x CPU Fan connector(s)
    • 1 x Chassis Fan connector(s)
    • 1 x Power Fan connector(s)
    • 1 x S/PDIF out header(s)
    • 1 x 24-pin EATX Power connector(s)
    • 1 x 4-pin ATX 12V Power connector(s)
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x System panel(s)
    • 1 x MemOK! button(s)
  • USB Ports:
    • Built-in Controller :
    • 12 x USB 2.0 port(s)
    • Built-in Controller :
    • 2 x USB 3.0 port(s)
  • Accessories:
    • User's manual
    • I/O Shield
    • 2 x SATA 3Gb/s cable(s)
  • On-Board LAN:
    • Realtek ® 8111E , 1 x Gigabit LAN Controller(s)
  • BIOS:
    • 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
  • Support Disc:
    • Drivers
    • ASUS PC Probe II
    • ASUS Update
    • Anti-virus software (OEM version)







Motherboard Specifications

  • Model:
    • ASUS F1A55-M/CSM Motherboard
  • CPU:
    • AMD E2- Series Processors
      * The AMD ® Turbo Core 2 Technology Support depends on the APU types
  • Chipset:
    • AMD A55 FCH (Hudson D2)
  • Memory:
    • 4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
    • Dual Channel Memory Architecture
      * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
      * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
      * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
  • Expansion Slots:
    • 2 x PCIe 2.0 x16
    • 1 x PCIe 2.0 x1
    • 1 x PCI
  • On-Board Audio:
    • VIA VT1708S 8-Channel High Definition Audio CODEC
  • On-Board Video:
    • Integrated AMD Radeon HD 6000 Series Graphics in Llano APU
    • Multi-VGA output support : ports
    • Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
    • Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
    • Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
    • AMD ® Dual Graphics technology support
    • Supports DirectX 11
  • Storage:
    • AMD A55 FCH (Hudson D2) chipset :
    • 6 x SATA 3Gb/s port(s), blue
    • Support Raid 0, 1, 10, JBOD
  • Special Features:
    • ASUS EPU :
      EPU
    • ASUS Exclusive Features :
      MemOK!
      AI Suite II
      Anti-Surge
      ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    • ASUS EZ DIY :
      ASUS CrashFree BIOS 3
      ASUS EZ Flash 2
      ASUS MyLogo 2

  • Form Factor:
    • uATX Form Factor
    • 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
