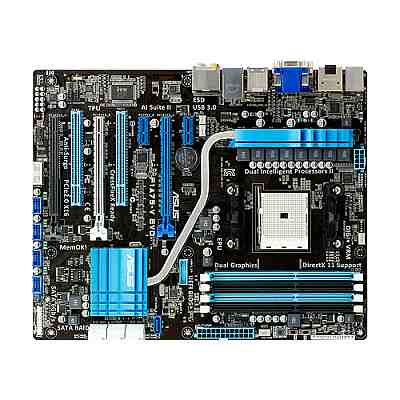

ASUS F1A75-V EVO Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x eSATA 6Gb/s
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 1 x Optical S/PDIF out
  • 6 x Audio jack(s)
• Internal I/O Interface:
  • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  • 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
  • 1 x COM port(s) connector(s)
  • 7 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (4 -pin)
  • 2 x Chassis Fan connector(s)
  • 1 x Power Fan connector(s)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x MemOK! button(s)
  • 1 x TPU switch(es)
  • 1 x EPU switch(es)

• USB Ports:
  • AMD A75 FCH (Hudson D3) chipset :
  • 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • AMD A75 FCH (Hudson D3) chipset :
  • 10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
  • ASMedia ® USB 3.0 controller :
  • 2 x USB 3.0 port(s) (2 at back panel, blue)
• Over clocking Features:
  • Overclocking Protection :
  • ASUS C.P.R.(CPU Parameter Recall)
• Accessories:
  • User's manual
  • ASUS Q-Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x Q-connector(s) (2 in 1) *3
• On-Board LAN:
  • Realtek ® 8111E , 1 x Gigabit LAN Controller(s)

• BIOS:
  • 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
• Support Disc:
  • Drivers
  • ASUS utilities
  • ASUS Update
  • Anti-virus software (OEM version)

Motherboard Specifications

• Model:
  • ASUS F1A75-V EVO Motherboard

• CPU:
  • AMD Socket FM1 A- Series/E2- Series Accelerated Processors
  • Supports CPU up to 4 cores
  • Supports AMD ® Turbo Core 2 Technology
    * The AMD ® Turbo Core 2 Technology Support depends on the APU types
• Chipset:
  • AMD A75 FCH (Hudson D3)
• Memory:
  • 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
    * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
    * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
    * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
• Expansion Slots:
  • 2 x PCIe 2.0 x16 (x16 or dual x8, white+blue)
  • 1 x PCIe 2.0 x16 (x4 mode, black) *2
  • 2 x PCIe 2.0 x1
  • 2 x PCI
• On-Board Audio:
  • Realtek ® ALC892 8-Channel High Definition Audio CODEC
  • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Audio Feature :
  • Optical S/PDIF out port(s) at back panel
• Multi-GPU Support:
  • Supports AMD CrossFireX Technology
• On-Board Video:
  • Integrated AMD Radeon HD 6000 Series Graphics in Llano APU
  • Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
  • Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  • Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
  • Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
  • AMD ® Dual Graphics technology support *1
  • Supports DirectX 11
• Storage:
  • AMD A75 FCH (Hudson D3) chipset :
  • 6 x SATA 6Gb/s port(s), gray
  • Support Raid 0, 1, 10, JBOD
  • ASMedia ® PCIe SATA controller :
  • 1 x SATA 6Gb/s port(s), navy blue
  • 1 x eSATA 6Gb/s port(s), red
• Special Features:
  • ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
  • ASUS TPU :
    Auto Tuning
    TurboV
    TPU switch
  • ASUS EPU :
    EPU
    EPU switch
  • ASUS Digital Power Design :
    Industry leading Digital 6 +2 Phase Power Design
  • ASUS Exclusive Features :
    MemOK!
    AI Suite II
    Ai Charger+
    Anti-Surge
    ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  • ASUS Quiet Thermal Solution :
    Stylish Fanless Design Heat-pipe solution
    ASUS Fan Xpert
  • ASUS EZ DIY :
    ASUS Q-Shield
    ASUS CrashFree BIOS 3
    ASUS EZ Flash 2
    ASUS MyLogo 2
    Multi-language BIOS
  • ASUS Q-Design :
    ASUS Q-Slot
    ASUS Q-Connector
  • 100% All High-quality Conductive Polymer Capacitors

• Form Factor:
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
