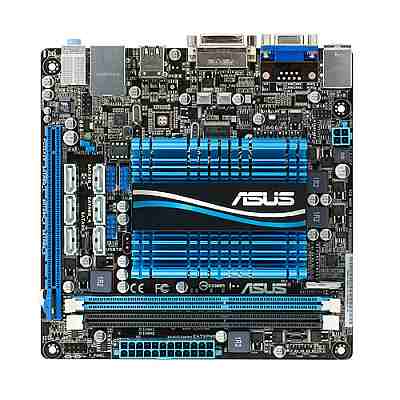

Asus E35M1-I

113013 - ASUS E35M1-I Motherboard, Supports AMD Fusion APU E-350 Dual-Core onboard Processors, 1 PCI Express x16 slot, Support for SATA3, VGA Port, DVI-D Port, DDR3 RAM, On Board Audio, Video, LAN, 12 USB ports, Mini ITX form Factor.
Condition: New, Warranty: 1 year
by Asus
1 review | Add Your Review

$0.00

113013 - E35M1-I
ASUS E35M1-I Motherboard, Supports AMD Fusion APU E-350 Dual-Core onboard Processors, 1 PCI Express x16 slot, Support for SATA3, VGA Port, DVI-D Port, DDR3 RAM, On Board Audio, Video, LAN, 12 USB ports, Mini ITX form Factor.

ASUS E35M1-I Motherboard. Specifications, price and availability

ASUS  E35M1-I Motherboard

ASUS E35M1-I Motherboard, Supports AMD Fusion APU E-350 Dual-Core onboard Processors, 1 PCI Express x16 slot, Support for SATA3, VGA Port, DVI-D Port, DDR3 RAM, On Board Audio, Video, LAN, 12 USB ports, Mini ITX form Factor.



ASUS E35M1-I Motherboard

ASUS E35M1-I Motherboard

  • Rear Panel I/O Ports:
    • 1 x PS/2 keyboard/mouse combo port(s)
    • 1 x DVI
    • 1 x D-Sub
    • 1 x LAN (RJ45) port(s)
    • 6 x USB 2.0
    • 3 x Audio Jack(s)
  • Internal I/O Interface:
    • 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    • 6 x SATA 6Gb/s connector(s)
    • 1 x CPU Fan connector(s)
    • 1 x Chassis Fan connector(s)
    • 1 x 24-pin EATX Power connector(s)
    • 1 x 4-pin ATX 12V Power connector(s)
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x System panel(s)
  • USB Ports:
    • Built-in Controller :
    • 12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)
  • Accessories:
    • User's manual
    • I/O Shield
    • 2 x Serial ATA 6.0Gb/s cable(s)
  • On-Board LAN:
    • Realtek ® 8111E , 1 x Gigabit LAN Controller
  • BIOS:
    • 32Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5







Motherboard Specifications

  • Model:
    • ASUS E35M1-I Motherboard
  • CPU:
    • AMD Fusion APU E-350 Dual-Core onboard Processors
  • Chipset:
    • AMD FCH A50
  • Memory:
    • 2 x DIMM, Max. 8GB, DDR3 1066/800 Hz Non-ECC, Un-buffered Memory
    • Dual Channel Memory Architecture
      * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
      * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows ® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows ® OS when you want to install 4GB or more memory on the motherboard.
  • Expansion Slots:
    • 1 x PCIe 2.0 x16 (x4 mode)
  • On-Board Audio:
    • VIA VT1708S 8-Channel High Definition Audio CODEC
    • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function
  • On-Board Video:
    • Integrated ATI Radeon HD 6310 GPU
    • Multi-VGA output support : DVI/RGB ports
    • Supports DVI with max. resolution 1920 x 1080 @ 60 Hz
    • Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
  • Storage:
    • Built-in Controller :
    • 6 x SATA 6Gb/s port(s), white
  • Special Features:
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash2
    • ASUS MyLogo2
    • ASUS AI Suite II
    • ASUS Q-Fan2
    • ASUS Anti-surge
    • 100% All High-quality Conductive Polymer Capacitors
  • Support Disc:
    • Drivers
    • ASUS utilities
    • ASUS Update
    • Anti-virus software (OEM version)
  • Form Factor:
    • Mini ITX Form Factor
    • 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
