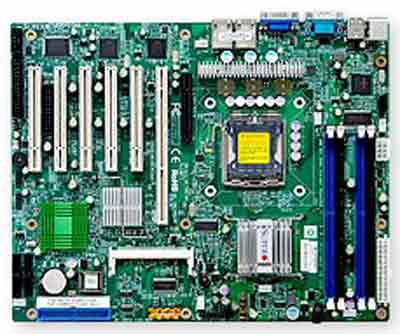

Supermicro PDSMA-E+
Motherboard
- Storage:
- Intel ® ICH7R SATA2 (3 Gbps) controller built-in
- Intel: RAID 0, 1, 5, 10 support (Windows Only)
- Adaptec: RAID 0 (Two, three, four drives only)
- RAID 1 (Two hard drives only)
- 1U support for Intelligent Platform Management
Interface v.2.0 (Optional: AOC-IMPI20-E)
- Rear Panel I/O Ports:
- Super I/O: Winbond 83627HG chip
- Clock Generator: CK410
- Four Serial ATA ports (3.0 Gbps performance)
- Four SATA hard drives supported
- One EIDE channel supports up to two UDMA IDE devices
- IDE Master / Slave
- Supports UDMA Mode 5, PIO Mode 4, and ATA/100
- 1 Floppy controller; 1.44 MB
- 2x RJ45 LAN ports
- 6x USB 2.0 compliant / 1.1 compatible
- 2x internal USB headers for 4 ports
- 2x USB Rear Ports
- 1x VGA Port
- PS/2 keyboard and mouse ports
- 1x Fast UART 16550 serial port
- 1x Header
- 1x Parallel Port Header
- Hardware Monitoring:
- Monitors for CPU Cores,Memory +1.8V, Chipset +1.5V, VIT
FSB, +3.3V, +5V, ±12V, 3.3V Standby, +5V Standby, VBAT
- CPU Core 3-Phase-switching voltage regulator with
auto-sense from 0.8375V-1.6000V
- FAN: Total of six 4-pin fan headers
- 6 fans with tachometer monitoring
- Status monitor for on/off control
- Status monitor for speed control
- Low noise fan speed control
- Support 3-pin fans (without speed control)
- Pulse Width Modulated (PWM) fan connector
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor (TM2) Support
- PECI
- CPU / System Overheat LED
- Standby Voltage Alert LED
- Chassis Intrusion Detection
- Chassis Intrusion Header
- RoHS
- Environmental Spec.: Operating Temperature: 10 °to 35 °C
(50 °to 95 °F)
- Non-operating Temperature: -40 °to 70 °C (-40 °to 158 °F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5 to 95%
(non-condensing)
|
Motherboard Specifications
- Model:
- Supermicro PDSMA-E+ Motherboard
- Processor Support:
- Single LGA775 ZIF Socket
- Supports a Quad-Core Intel ® Xeon ® 3200
series processor
- Supports a Dual-Core Intel ® Xeon ® 3000
series processor
- Supports a Quad-Core Intel ® Core2 Extreme
series processor
- Supports an Intel ® Core2 Quad seriesprocessor
- Supports an Intel ® Core2 Duo seriesprocessor
- Supports an Intel ® Pentium ® processor E2000 series
- Supports a Dual-Core Intel ® Pentium ® Dprocessor
- Supports an Intel ® Pentium ® Extreme
Edition processor
- Supports an Intel ® Pentium ® 4 processor
- Supports an Intel ® Celeron ® processor E1000 series
- Supports an Intel ® Celeron ® processor 400 series
- NOTE: This board DOES NOT support Q9000, E8000, E7000,
E5000 series or 45nm processor
- Chipset:
- Intel 3010 chipset
- ICH7R SB + PXH-V
- FSB:
- 1066 / 800 / 533 MHz system bus
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 8 GB of unbuffered, ECC/Non-ECC DDR2
667/533 MHz memory (Dual Channel)
- DDR2 667/533MHz unbuffered, ECC SDRAM, 240-pin
gold-plated DIMMs
- 256 MB, 512 MB, 1 GB, 2GB
- 1.8V only
- Expansion Slots:
- 5x 32-bit 33MHz PCI (5V) slots
- 1x 64-bit PCI-X 133MHz Slot
- 1 (x8) PCI-Express Slot
- On-Board Video:
- On-board XGI Z7 graphics, 16MB
- On-Board LAN:
- 1x Intel ® 82573V Gigabit PCI-Express Ethernet
- 1x Intel ® 82573L Gigabit PCI-Express Ethernet
- Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output
- Form
Factor/Dimensions:
- ATX
- 12.0" width x 9.6 " length , (30.5cm x 24.4cm), 6 layers
- Manageability:
- Optional IPMI (Intelligent Platform Management
Interface) 2.0
- W83793 Hardware Monitor
- Power Configurations: ACPI Power Management
- Main Switch Override Mechanism
- Wake-On-Ring (WOR) header
- Wake-On-LAN (WOL) header
- Power-on mode control for AC power loss recovery
- Internal/External modem remote ring-on
- BIOS:
- 8Mb Flash EEPROM with Phoenix BIOS ®
- Features: Plug and Play (PnP)
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0 (limited)
- USB Keyboard support
- SMBIOS 2.3
- PECI
|
