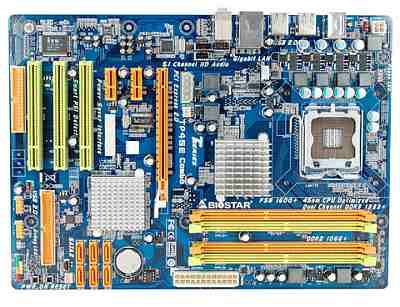

113364 - Biostar TP45E Combo
Condition: New . Warranty:1 year .



BIOSTAR TP45E Combo Motherboard. Specifications, price and availability

BIOSTAR TP45E Combo Motherboard

BIOSTAR TP45E Combo Motherboard, Support Intel Core2 Quad/Duo Processor, Pentium/Celeron Processor, 3 PCI Slots, 2 PCI Slot x1, 1 PCI Express x16 slots, Support for SATA2, IDE,  DDR2 RAM, On Board Audio, LAN, 8 USB Ports, ATX form Factor.



BIOSTAR TP45E Combo Motherboard

BIOSTAR TP45E Combo Motherboard

  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse
    • 1 x PS/2 Keyboard
    • 6 x USB 2.0 Port
    • 1 x RJ-45 Port
    • 3 x Audio Connector
  • Internal I/O Interface:
    • 2 x USB 2.0 Header
    • 6 x SATA2 3Gb/s Connector
    • 1 x IDE Connector
    • 1 x Floppy Connector
    • 1 x Front Audio Header
    • 1 x Front Panel Header
    • 1 x CD-IN Header
    • 1 x S/PDIF-OUT Header
    • 1 x CPU FAN Header
    • 2 x System FAN Header
  • USB Ports:
    • 6 x USB 2.0 Port
    • 2 x USB 2.0 Header
  • Accessories:
    • 3 x SATA Cable
    • 1 x SATA Power Cable
    • 1 x I/O Shield
    • 1 x CD Driver
    • 1 x User Manual
  • On-Board LAN:
    • Realtek RTL8111DL - 10/100/1000 Controller
  • OS SUPPORT:
    • Support Windows 2000 / XP / Vista / 7







Motherboard Specifications

  • Model:
    • BIOSTAR TP45E Combo Motherboard
  • CPU:
    • Intel Core2 Quad Processor
    • Intel Core2 Duo Processor
    • Intel Pentium Dual-Core Processor
    • Intel Celeron Dual-Core Processor
    • Intel Celeron Processor 400 Sequence
  • FSB:
    • Support FSB 800/1066/1333/1600(OC)MHz
  • Chipset:
    • Intel P45 / Intel ICH10
  • Memory:
    • Support Dual Channel DDR2 667/800/1066(OC) MHz
    • Support Dual Channel DDR3 800/1066/1333(OC) MHz
    • 2 x DDR2 DIMM Memory Slot
    • 2 x DDR3 DIMM Memory Slot
    • Max. Supports up to DDR3:4GB or DDR2:8GB Memory
    • Note: DDR3 and DDR2 can not be installed at the same time.
    • FSB800 CPU only support DDR3-800
    • FSB1066 CPU only support DDR3-800/1066
  • Expansion Slots:
    • 1 x PCI-E x16 2.0 Slot
    • 2 x PCI-E x1 Slot
    • 3 x PCI Slots
  • On-Board Audio:
    • Realtek ALC662 6-Channel HD Audio
  • Storage:
    • 6 x SATA2 Connector
    • 1 x IDE Connector
  • Special Features:
    • Windows 7 Compatible
    • Supports Solid capacitor
    • Supports Tweak Tech
    • Supports O.N.E
    • Supports Rapid Switch
    • Supports Rapid Debug
    • Supports BIOS-Flasher
    • Supports GPU

  • Form Factor:
    • ATX Form Factor
    • Dimension: 30.5 cm X 22 cm ( W x L ) (12 Inch x 8.7 Inch)
