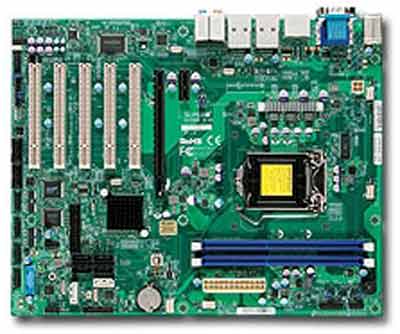

Supermicro C7H61 Motherboard

Supermicro C7H61 Motherboard

• Storage:
  • SATA 3.0 (6Gb/s) and SATA 2.0 (3Gb/s)

• Rear Panel I/O Ports:
  • Super I/O: Nuvuton NCT6776F & NCT6106D (6 COM ports)
  • 4x SATA 2.0 ports
  • 2x SATA 3.0 ports
  • 2x RJ45 LAN ports
  • 2x USB 3.0 ports (header)
  • 10x USB 2.0 ports(6 rear, 4 via headers)
  • Line-in / Line-out / Microphone Ports; optical S/PDIF port, Front Panel Header
  • DOM power connector support
  • 8x COM ports(6 x RS-232, 2xRS232/485/422)
  • VGA + DP + HDMI ports
  • LPT header


• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • Digital 4+2 Phases auto sensing voltage regulator for CPU and Integrated Graphics Processor
  • FAN: Total of 4 fan headers supporting up to 4 fans
  • 4x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Adaptive Thermal Monitor support
  • PECI 3.0
  • CPU / System Overheat LED
  • Standby alert LED
  • Chassis intrusion detection
  • Chassis intrusion header
  • eUSB standoff


Motherboard Specifications

• Model:
  • Supermicro C7H61 Motherboard


• Processor Support:

  • Socket H2 (LGA 1155)
  • Intel ® 2nd and 3rd Generation Core i7/i5/i3, Pentium, Celeron processors supported

• Chipset:
  • Intel ® H61 Express chipset

• Memory:

  • 2x 240-pin DDR3 DIMM sockets
  • Supports up to 16 GB DDR3 non-ECC Un-Buffered memory (UDIMM)
  • 1600/1333MHz
  • Support non-ECC DDR3 UDIMM only
  • Unbuffered DDR3 SDRAM 64-bit, 240-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB
  • 1.5V or 1.35V

• Expansion Slots:

  • 1x (x16) PCI-E 3.0
  • 1x (x1) PCI-E 2.0
  • 5x 32-bit PCI slots (5V Key)

• On-Board Audio:
  • REALTEK ALC888S-VD2 HD Audio

• On-Board LAN:

  • Intel 82579V and 82574L Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6" (30.5cm x 24.4cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• Power Configurations: ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Wake-On-LAN (WOL) header
• Wake-On-Ring (WOR) header
• Keyboard Wakeup from Soft-Off
• Power-on mode for AC power recovery
• BIOS:
• 64Mb SPI Flash EEPROM with AMI UEFI BIOS
• Features: Plug and Play (PnP)
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• RTC (Real time Clock) Wakeup
• 3TB HDD Support
