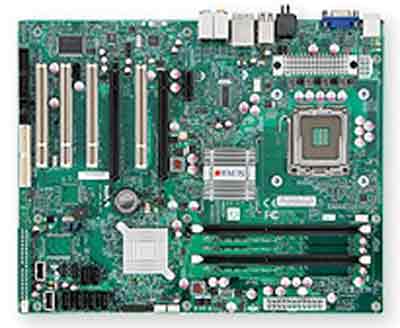

Supermicro C2SEE Motherboard

Supermicro C2SEE Motherboard

• Storage:
  • Intel ® ICH10 SATA2 (3 Gbps) controller built-in

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83627DHG-P chip
  • Clock Generator: CK505
  • Six Serial ATA ports (3Gbps)
  • Six SATA hard drives supported
  • 1 Floppy controller; 1.44 MB
  • 1x RJ45 LAN port
  • 12x USB 2.0 / 1.1 compatible
  • 6 rear + 2 on-board + 4 headers
  • S/PDIF out
  • Line-in / Line-out / Microphone Ports
  • On board VGA
  • PS/2 keyboard and mouse ports
  • 1x Serial Header

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
  • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio (Only available if CPU is supported)
  • FAN: Total of five 4-pin fan headers
  • 3 x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on / off control
  • Support 3-pin PWM fans (without speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) Support
  • PECI
  • Chassis intrusion Detection
  • Chassis intrusion Header
  • RoHS
  • Environmental Spec.: Operating Temperature: 10 °to 35 °C (50 °to 95 °F)
  • Non-operating Temperature: -40 °to 70 °C (-40 °to 158 °F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)


Motherboard Specifications

• Model:
  • Supermicro C2SEE Motherboard


• Processor Support:

  • Single LGA775 Socket
  • Supports  Intel ® Core2 Extreme QX9000/QX6000  series
  • Supports  Intel ® Core2 Quad Q9000/Q8000/Q6000  series
  • Supports  Intel ® Core2 Duo E8000/E7000/E6000/E4000  series
  • Supports  Intel ® Pentium ® E5000/E2000series
  • Supports  Intel ® Celeron ® E1000 and 400series

• Chipset:

  • Intel G43
  • ICH10

• FSB:
  • 1333 / 1066 / 800 MHz system bus

• Memory:

  • Two 240-pin DIMM sockets
  • Supports up to 4 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory (Dual Channel)
  • DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1 GB, 2 GB
  • 1.5 V - 1.9V only

• Expansion Slots:

  • 1 (x16) PCI-e 2.0 slot
  • 1 (x4) PCI-e (using x16 slot)
  • 1 (x1) PCI-e slot
  • 4x 32-bit 33MHz PCI (5V) slots

• On-Board Video:
  • Intel GMA X4500

• On-Board Audio:
  • Realtek ALC888 HD 7.1 Channel Audio

• On-Board LAN:

  • 1 x Realtek RTL8111C Gigabit Ethernet
  • Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output

• Form Factor/Dimensions:
  • ATX
  • 12.0" x 9.6 ", (30.5cm x 24.4cm)
• Manageability:

• SuperDoctor ® III
• Watch Dog
• NMI
• Hardware monitor in W83627DHF (PECI support)
• Power Configurations: ACPI Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode control for AC power recovery
• Internal / External modem remote ring-on
• Suspend to RAM (STR)
• BIOS:
  • 16Mb SPI Flash EEPROM with AMI BIOS
  • Features: Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

• Special Features:
  • Important Note: To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is required.
