Home > Motherboards and Multi-Media > Motherboards: For Intel CPUs > Socket 775/479/478/423 > Supermicro C2SBX

Click here to go back to search result

113440 - Supermicro C2SBX
Condition: New . Warranty:1 year .



Supermicro C2SBX Motherboard. Specifications, price and availability

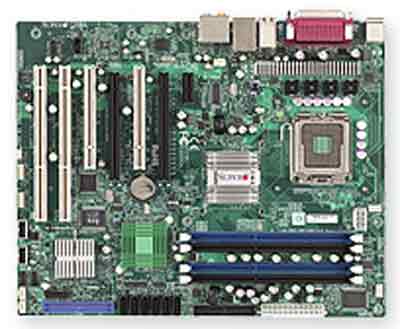

Supermicro C2SBX Motherboard

Intel Socket LGA775 Motherboard, with 2 PCI-e x16 Slots/1 PCI-e x1 Slot/4 PCI Slots, on board audio and LAN, 12 USB Ports, 6 SATA Ports, 4 DIMM Sockets and ATX Form Factor



Supermicro C2SBX Motherboard

Supermicro C2SBX Motherboard

  • Storage:
    • Intel ICH9R SATA2 (3 Gbps) controller built-in
    • RAID 0, 1, 5, 10 support (Windows Only)
    • RAID 0, 1, 10 support (Linux)
  • Rear Panel I/O Ports:
    • Super I/O: Winbond 83627DHG chip
    • Clock Generator: ICS9LPRS511
    • Six Serial ATA ports (3 Gbps performance)
    • Six SATA hard drives supported
    • One EIDE channel supports up to two UDMA IDE devices
    • ITE8213F chipset
    • 1 Floppy controller; 1.44 MB
    • 1x RJ45 LAN port
    • 12x USB 2.0 / 1.1 compatible
    • 6 rear + 2 Type A connectors + 2 headers ( 4 ports )
    • High Definition 7.1 Channel Audio
    • Line-in / Line-out / Microphone Ports
    • PS/2 keyboard and mouse ports
    • 2x Fast UART 16550 serial ports
    • 1x ECP / EEP Parallel Port
    • Firewire: 2x IEEE 1394 headers

  • Hardware Monitoring:
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, 12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
    • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
    • Adjustable CPU clock frequency ratio (Only available if CPU is supported
    • Total of five 4-pin fan headers
    • FAN: 5 x fans with tachometer monitoring
    • Status monitor for speed control
    • Status monitor for on / off control
    • Support 3-pin PWM fans (without speed control)
    • Low noise fan speed control
    • Pulse Width Modulated (PWM) fan conn.
    • Temperature: Monitoring for CPU and chassis environment
    • CPU thermal trip support
    • Thermal Monitor 2 (TM2) Support
    • PECI
    • CPU / System Overheat LED
    • Suspend-state indicator LED
    • +5V standby alert LED
    • Chassis intrusion Detection
    • Chassis intrusion Header

Motherboard Specifications

  • Model:
    • Supermicro C2SBX Motherboard
  • Processor Support:
    • Single LGA775 Socket
    • Supports Intel Core2 Extreme QX9000/QX6000 series
    • Supports Intel Core2 Quad Q9000/Q8000/Q6000 series
    • Supports Intel Core2 Duo E8000/E7000/E6000/E4000 series
    • Supports Intel Pentium E5000/E2000series
    • Supports Intel Celeron E1000 and 400series
  • Chipset:
    • Intel X38
    • ICH9R + PXH/V
  • FSB:
    • 1333 / 1066 / 800 MHz system bus
  • Memory:
    • Four 240-pin DIMM sockets
    • Supports up to 8 GB of unbuffered, ECC or non-ECC DDR3 1333/1066/800MHz memory (Dual Channel)
    • DDR3 1333/1066/800MHz unbuffered, ECC or non-ECC SDRAM, 240-pin gold-plated DIMMs
    • 256 MB, 512 MB, 1 GB, 2 GB
    • 1.5 V only
  • Expansion Slots:
    • 2 (x16) PCI-e 2.0 slot
    • 1 (x1) PCI-e slot
    • 2x 64-bit 133 / 100MHz PCI-X (3.3V) slots
    • 2x 32-bit 33MHz PCI (5V) slots
  • On-Board Audio:
    • High Definition 7.1 Channel Audio
  • On-Board LAN:
    • 1x Intel 82566 Gigabit PCI-Express Ethernet
    • Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output
  • Form Factor/Dimensions:
    • ATX
    • 12" x 9.6 ", (30.5cm x 24.4cm)
  • Manageability:
    • SuperDoctor III
    • Watch Dog
    • NMI
    • Power Configurations: ACPI/APM Power Management
    • Main Switch Override Mechanism
    • Wake-On-Ring (WOR) header
    • Wake-On-LAN (WOL) header
    • Keyboard Wakeup from Soft-Off
    • Power-on mode control for AC power recovery
    • Internal / External modem remote ring-on
    • Suspend to RAM (STR)
  • BIOS:
    • 16Mb SPI Flash EEPROM with AMI BIOS
    • Features: Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3
  • Special Features:
    • Important Note: To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (24-pin) AND 8-pin +12V] is required.
