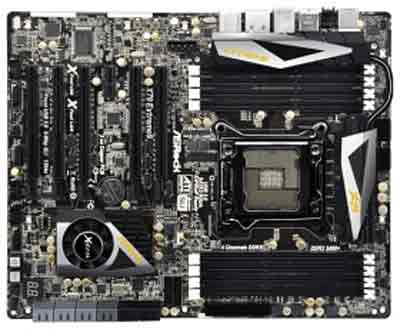

asRock X79 Extreme9

113536 - Intel Socket 2011 Motherboard, with 5 PCI-e x16 Slots, on board audio and LAN, 4 USB Ports, 12 SATA Ports, 2 e-SATA Connectors, 8 DIMM Slots and ATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$426.25

113536 - X79 Extreme9
Intel Socket 2011 Motherboard, with 5 PCI-e x16 Slots, on board audio and LAN, 4 USB Ports, 12 SATA Ports, 2 e-SATA Connectors, 8 DIMM Slots and ATX Form Factor

asRock X79 Extreme9 Motherboard. Specifications, price and availability

asRock X79 Extreme9 Motherboard

Intel Socket 2011 Motherboard, with 5 PCI-e x16 Slots, on board audio and LAN, 4 USB Ports, 12 SATA Ports, 2 e-SATA Connectors, 8 DIMM Slots and ATX Form Factor



asRock X79 Extreme9 Motherboard

asRock X79 Extreme9 Motherboard

  • Storage:
    • 2 x SATA3 6.0 Gb/s connectors by Intel ® X79, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel ® Rapid Storage 3.0), NCQ, AHCI and "Hot Plug" functions
    • 2 x SATA3 6.0 Gb/s connectors by Marvell SE9220, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions
    • 4 x SATA3 6.0 Gb/s connectors by Marvell SE9172, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard Port
    • 6 x Ready-to-Use USB 2.0 Ports
    • 2 x eSATA3 Connectors
    • 4 x Ready-to-Use USB 3.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • 1 x IEEE 1394 Port
    • 1 x Clear CMOS Switch with LED
  • Internal I/O Interface:
    • 4 x Rear USB 3.0 ports by TI, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 2 x Front USB 3.0 headers (support 4 USB 3.0 ports) by TI, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel ® Rapid Storage 3.0), NCQ, AHCI and Hot Plug functions
    • 8 x SATA3 6.0 Gb/s connectors
    • 1 x IR header
    • 1 x CIR header
    • 1 x COM port header
    • 1 x IEEE 1394 header
    • 1 x Power LED header
    • CPU/Chassis/Power/SB FAN connector
    • 24 pin ATX power connector
    • 2 x 8 pin 12V power connectors
    • SLI/XFire power connector
    • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
    • 2 x USB 3.0 headers (support 4 USB 3.0 ports)
    • 1 x Dr. Debug with LED
  • Special Features:
    • ASRock Extreme Tuning Utility (AXTU)
    • ASRock Instant Boot
    • ASRock Instant Flash
    • ASRock APP Charger
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast Charger
    • ASRock XFast RAM
    • ASRock X-FAN
    • ASRock Crashless BIOS
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Good Night LED
    • Smart Switch: - 1 x Power Switch with LED
    • 1 x Reset Switch with LED
    • 1 x Clear CMOS Switch with LED
    • Support C.D: - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (ASRock MAGIX Multimedia Suite - OEM)
    • O.S: Microsoft ® Windows ® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
    • Certifications- FCC, CE, WHQL
    • ErP/EuP Ready (ErP/EuP ready power supply is required)
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU/Chassis/Power/SB Fan Tachometer
    • CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    • CPU/Chassis/SB Fan Multi-Speed Control
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Motherboard Specifications

  • Model:
    • asRock X79 Extreme9 Motherboard
  • Processor Support:
    • Supports Intel ® Core i7 processor family for the LGA 2011 Socket
    • Digi Power Design
    • Advanced 16 + 2 Power Phase Design
    • Supports Intel ® Turbo Boost 2.0 Technology
    • Supports Hyper-Threading Technology
    • Supports Untied Overclocking Technology
  • Chipset:
    • Intel ® X79
  • Memory:
    • Quad Channel DDR3 memory technology
    • 8 x DDR3 DIMM slots
    • Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
    • Supports DDR3 ECC, un-buffered memory with Intel ® Workstation 1S Xeon processors E5 16xx/26xx/46xx series in socket LGA 2011
    • Max. capacity of system memory: 64GB*
    • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.
  • BIOS:
    • 64Mb AMI UEFI Legal BIOS with GUI support
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • Supports jumperfree
    • SMBIOS 2.3.1 Support
    • CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V Voltage Multi-adjustment

  • Expansion Slots:
    • 5 x PCI Express 3.0 x16 slots (PCIE1/PCIE2/PCIE4/PCIE5: x8/8/8/8 mode or x16/0/16/0 mode; PCIE6: x8 mode)
    • 1 x PCI Express 2.0 x1 slot
    • Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
    • Supports NVIDIA ® Quad SLI, 3-Way SLI and SLI
  • On-Board Audio:
    • Supported by the bundled ASRock Game Blaster
    • 7.1 CH HD Audio
    • Creative Sound Core3D quad-core sound and voice processor
    • Supports THX TruStudio PRO
    • Supports CrystalVoice
    • Supports EAX1.0 to EAX5.0
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Broadcom BCM57781
    • Supports Wake-On-LAN
    • Supports Energy Efficient Ethernet 802.3az
    • Supports Dual LAN with Teaming function with the bundled ASRock Game Blaster
    • Supports PXE
  • Form Factor/Dimensions:
    • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    • Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  • Accessories:
    • 1 x ASRock SLI_Bridge_2S Card
    • 1 x ASRock 3-Way SLI-2S1S Bridge Card
    • 1 x ASRock Game Blaster
    • Quick Installation Guide, Support CD, I/O Shield
    • 6 x SATA Data Cables
    • 2 x SATA 1 to 1 Power Cables
    • 1 x Front USB 3.0 Panel
    • 4 x HDD Screws
    • 6 x Chassis Screws
    • 1 x Rear USB 3.0 Bracket
