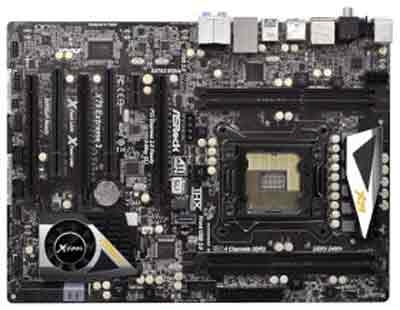

asRock X79 Extreme3 Motherboard
Intel Socket 2011 Motherboard, with 3 PCI-e x16 Slots/1 PCI-e x1 Slot/2
PCI Slots, on board audio and LAN, 6 USB Ports, 3 SATA Ports, 1 x
eSATA3 Connector,
4 DIMM Slots and ATX Form Factor
|

asRock X79 Extreme6
Motherboard
- Storage:
- 2 x SATA3 6.0 Gb/s connectors by Intel ® X79,
support RAID (RAID 0, RAID 1, RAID 5, RAID 10 and Intel ® Rapid
Storage 3.0), NCQ, AHCI and "Hot Plug" functions
- 1 x SATA3 6.0 Gb/s connector by ASMedia ASM1061,
supports NCQ, AHCI and "Hot Plug" functions
- Rear Panel I/O Ports:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
- Internal I/O
Interface:
- 2 x Rear USB 3.0 ports by Etron EJ168A, support USB
1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by
Etron EJ168A, supports USB 1.0/2.0/3.0 up to 5Gb/s
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10 and Intel ® Rapid Storage 3.0), NCQ, AHCI
and Hot Plug functions
- 3 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power/SB FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- Special Features:
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast Charger
- ASRock XFast RAM
- ASRock X-FAN
- ASRock Crashless BIOS
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
- Smart Switch: 1 x Clear CMOS Switch with LED
- Support C.D: Drivers, Utilities, AntiVirus Software
(Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software
Suite (ASRock MAGIX Multimedia Suite - OEM)
- O.S: Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7
64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
- Certifications: - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
|
Motherboard Specifications
- Model:
- asRock X79 Extreme3 Motherboard
- Processor Support:
- Supports Intel ® Core i7 processor family for the
LGA 2011 Socket
- Digi Power Design
- Advanced 5 + 1 Power Phase Design
- Supports Intel ® Turbo Boost 2.0 Technology
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Memory:
- Quad Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/1600/1333/1066/800 non-ECC,
un-buffered memory
- Supports DDR3 ECC, un-buffered memory with
Intel ® Workstation 1S Xeon processors E5 16xx/26xx/46xx series in
socket LGA 2011
- Max. capacity of system memory: 32GB*
- Supports Intel ® Extreme Memory Profile (XMP) 1.3 /
1.2
- Expansion Slots:
- 3 x PCI Express 3.0 x16 slots (PCIE1 @ x16 mode; PCIE3
@ x16 mode; PCIE4 @ x8 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and
CrossFireX
- Supports NVIDIA ® Quad SLI, 3-Way SLI and SLI
- On-Board Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC898
Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio
- On-Board LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Form
Factor/Dimensions:
- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Premium Gold Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
- Hardware Monitoring:
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power/SB Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed
Auto-Adjust by CPU Temperature)
- CPU/Chassis/SB Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Accessories:
- 1 x ASRock SLI_Bridge_2S Card
- 1 x ASRock 3-Way SLI-2S1S Bridge Card
- Quick Installation Guide, Support CD, I/O Shield
- BIOS:
- 64Mb AMI UEFI Legal BIOS with GUI support
- ACPI 1.1 Compliance Wake Up Events
- CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V
Voltage Multi-adjustment
|
