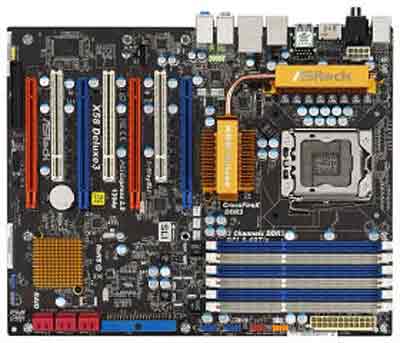

asRock X58 Deluxe3
Motherboard
- Storage:
- 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel ® Matrix Storage), NCQ, AHCI and
Hot Plug functions
- Rear Panel I/O Ports:
- 1
x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x Powered eSATA2/USB Connector
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
- Internal I/O
Interface:
- 2 x USB 3.0 ports by NEC UPD720200 on ASRock USB 3.0
Card, support USB 1.0/2.0/3.0 up to 5Gb/s
- 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel ® Matrix Storage), NCQ, AHCI and
Hot Plug functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 5 USB 2.0 ports)
- Special Features:
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Support C.D: - Drivers, Utilities, AntiVirus Software
(Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial)
- O.S: Microsoft ® Windows ® 7 / 7 64-bit /
Vista / Vista 64-bit / XP / XP 64-bit compliant
- Certifications: FCC, CE, WHQL
- Hardware Monitoring:
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
|
Motherboard Specifications
- Model:
- asRock X58 Deluxe3 Motherboard
- Processor Support:
- Intel ® Socket 1366 Core i7 Processor Extreme
Edition / Core i7 Processor Supports Intel ® Dynamic Speed
Technology
- System Bus up to 6400 MT/s; Intel ® QuickPath
Interconnect
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
- Chipset:
- Northbridge: Intel ® X58
- Southbridge: Intel ® ICH10R
- Memory:
- Triple Channel DDR3 memory technology
- 6 x DDR3 DIMM slots
- Supports DDR3 2000(OC)/1866(OC)/1600(OC)/1333(OC)/1066
non-ECC, un-buffered memory
- Supports DDR3 ECC, un-buffered memory with
Intel ® Workstation 1S Xeon processors series
- Max. capacity of system memory: 24GB*
- Supports Intel ® Extreme Memory Profile (XMP)**
- Expansion Slots:
- 4 x PCI Express 2.0 x16 slots (blue @ x8 / x16 mode,
orange @ x8 / N/A mode) (Double-wide slot spacing between each PCI-E
slot)
- 3 x PCI slots
- Supports ATI Quad CrossFireX, 3-Way CrossFireX and
CrossFireX
- Supports NVIDIA ® Quad SLI, 3-Way SLI and SLI
- On-Board Audio:
- 7.1 CH HD Audio with Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)
- Premium Blu-ray audio support
- On-Board LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
- -Supports PXE
- Form
Factor/Dimensions:
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
- Hardware Monitoring:
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- BIOS:
- ACPI 1.1 Compliance Wake Up Events
- CPU, DRAM, NB, SB,VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
|
