asRock Z77 Extreme11

113562 - Intel Socket 1155 Motherboard, with 4 PCI-e x16 Slots/3 PCI-e x1 Slots, on board audio, video and LAN, 8 USB Ports, 10 SATA Ports, 4 DIMM Slots and EATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$508.75

113562 - Z77 Extreme11
Intel Socket 1155 Motherboard, with 4 PCI-e x16 Slots/3 PCI-e x1 Slots, on board audio, video and LAN, 8 USB Ports, 10 SATA Ports, 4 DIMM Slots and EATX Form Factor

asRock Z77 Extreme11 Motherboard. Specifications, price and availability

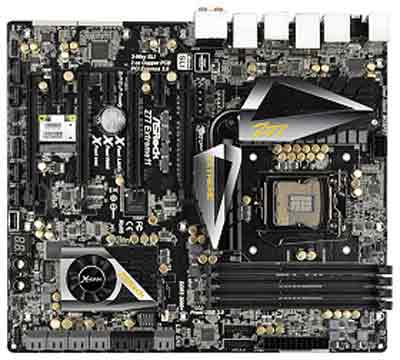

asRock Z77 Extreme11 Motherboard

Intel Socket 1155 Motherboard, with 4 PCI-e x16 Slots/3 PCI-e x1 Slots, on board audio, video and LAN, 8 USB Ports, 10 SATA Ports, 4 DIMM Slots and EATX Form Factor



asRock Z77 Extreme11 Motherboard

asRock Z77 Extreme11  Motherboard

  • Storage:
    • 2 x SATA3 6.0 Gb/s connectors by Intel ® Z77, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug (SATA3_1 connector is shared with eSATA3 port)
    • 8 x SAS2/SATA3 6.0 Gb/s connectors by LSI SAS2308 PCIe 3.0 x8 controller, support RAID (RAID 0, RAID 1, RAID 1E and RAID 10), MegaRAID Utility, NCQ and Hot Plug
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse/Keyboard Port
    • 1 x HDMI Port
    • 1 x Optical SPDIF Out Port
    • 2 x Ready-to-Use USB 2.0 Ports
    • 1 x eSATA3 Connector
    • 8 x Ready-to-Use USB 3.0 Ports
    • 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    • 1 x IEEE 1394 Port
    • 1 x Clear CMOS Switch with LED
    • HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 4 x Rear USB 3.0 ports by Intel ® Z77, support USB 1.1/2.0/3.0 up to 5Gb/s
    • 4 x Rear USB 3.0 ports by Etron EJ188, support USB 1.1/2.0/3.0 up to 5Gb/s
    • 2 x Front USB 3.0 headers by Etron EJ188 (support 4 USB 3.0 ports), support USB 1.1/2.0/3.0 up to 5Gb/s
    • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug
    • 2 x SATA3 6.0 Gb/s connectors
    • 8 x SAS2/SATA3 6.0 Gb/s connectors
    • 1 x IR header
    • 1 x CIR header
    • 1 x COM port header
    • 1 x HDMI_SPDIF header
    • 1 x IEEE 1394 header
    • 1 x Power LED header
    • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
    • 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)
    • 1 x Power Fan connector (3-pin)
    • 1 x SB Fan connector (3-pin)
    • 24 pin ATX power connector
    • 8 pin 12V power connector
    • SLI/XFire power connector
    • Front panel audio connector
    • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
    • 1 x Vertical Type A USB
    • 2 x USB 3.0 headers (support 4 USB 3.0 ports)
    • 1 x Dr. Debug with LED
    • 1 x Power Switch with LED
    • 1 x Reset Switch with LED
  • Special Features:
    • ASRock Extreme Tuning Utility (AXTU)
    • ASRock Instant Boot
    • ASRock Instant Flash
    • ASRock APP Charger
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast RAM
    • ASRock X-FAN
    • ASRock Crashless BIOS
    • ASRock OMG (Online Management Guard)
    • ASRock Internet Flash
    • ASRock UEFI System Browser
    • ASRock Dehumidifier Function
    • Lucid Virtu Universal MVP
    • ASRock Interactive UEFI
    • ASRock Easy RAID Installer
    • ASRock Fast Boot
    • ASRock Restart to UEFI
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Good Night LED
    • Support C.D:  Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM, Google Chrome Browser and Toolbar
    • O.S: Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit compliant
    • Certifications: - FCC, CE, WHQL
    • ErP/EuP Ready (ErP/EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock Z77 Extreme11  Motherboard
  • Processor Support:
    • Supports 3rd and 2nd Generation Intel ® Core i7 / i5 / i3 in LGA1155 Package
    • Digi Power Design
    • 8 + 4 Power Phase Design
    • Dual-Stack MOSFET (DSM)
    • Supports Intel ® Turbo Boost 2.0 Technology
    • Supports Intel ® K-Series unlocked CPU
    • Supports Hyper-Threading Technology
  • Chipset:
    • Intel ® Z77
    • Supports Intel ® Rapid Start Technology and Smart Connect Technology
  • Memory:
    • Dual Channel DDR3 memory technology
    • 4 x DDR3 DIMM slots
    • Supports DDR3 3000+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
    • Max. capacity of system memory: 32GB*
    • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2
  • Expansion Slots:
    • 3 x PCI Express 3.0 x16 slots (PCIE1/PCIE5: single at x16 (PCIE1) / x8 (PCIE5) or dual at x8/x8 mode; PCIE3: x8 mode)
    • 1 x PCI Express 2.0 x16 slot (PCIE7: x4 mode)
    • 3 x PCI Express 2.0 x1 slot
    • 1 x mini-PCI Express slot: For WiFi + BT module
    • PLX PEX 8747 and PLX PEX 8608 embedded
    • Supports AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX and CrossFireX
    • Supports NVIDIA ® Quad SLI, 3-Way SLI and SLI
  • On-Board Video:
    • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video 2.0, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® Insider, Intel ® HD Graphics 2500/4000 with Intel ® Ivy Bridge CPU
    • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® HD Graphics 2000/3000, Intel ® Advanced Vector Extensions (AVX) with Intel ® Sandy Bridge CPU
    • Pixel Shader 5.0, DirectX 11 with Intel ® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel ® Sandy Bridge CPU
    • Max. shared memory 1760MB with Intel ® Ivy Bridge CPU. Max. shared memory 1759MB with Intel ® Sandy Bridge CPU
    • Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
    • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI
    • Supports HDCP with HDMI
    • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI
  • On-Board Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
    • Premium Blu-ray audio support
    • Supports THX TruStudio
  • On-Board LAN:
    • 2 x PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Intel ® 82579V
    • Intel ® 82583V
    • Supports Wake-On-LAN
    • Supports Dual LAN with Teaming function
    • Supports PXE
    • Wireless LAN: - Supports IEEE 802.11a/b/g/n
    • Supports Dual-Band (2.4/5 GHz)
    • Supports High speed wireless connection up to 300Mbps
    • 2 antennas to support 2 (Transmit) x 2 (Receive) MIMO technology
    • Supports Bluetooth 4.0 Class II
  • Form Factor/Dimensions:
    • EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
    • 2oz copper PCB
    • Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  • Hardware Monitoring:
    • CPU/Chassis/SB Temperature Sensing
    • CPU/Chassis/Power/SB Fan Tachometer
    • CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    • CPU/Chassis Fan Multi-Speed Control
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • 1 x ASRock SLI_Bridge_3S Card
    • 1 x ASRock 3-Way SLI Bridge Card
    • Quick Installation Guide, Support CD, I/O Shield
    • 8 x SATA Data Cables
    • 2 x SATA 1 to 1 Power Cables
    • 1 x ASRock Wi-SB Box
    • 12 x Screws
  • BIOS:
    • 64Mb AMI UEFI Legal BIOS with GUI support
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • Supports jumperfree
    • SMBIOS 2.3.1 Support
    • CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
