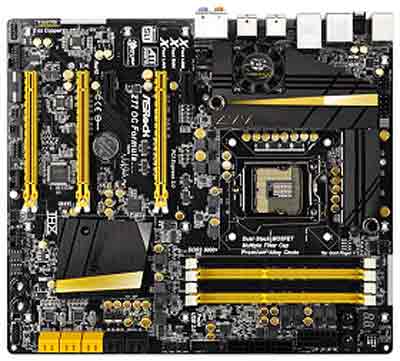

asRock Z77 OC Formula

113564 - Intel Socket 1155 Motherboard, with 3 PCI-e x16 Slots/2 PCI-e x1 Slots, on board audio, video and LAN, 6 USB Ports, 6 SATA Ports, 4 DIMM Slots and EATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$305.62

113564 - Z77 OC Formula
Intel Socket 1155 Motherboard, with 3 PCI-e x16 Slots/2 PCI-e x1 Slots, on board audio, video and LAN, 6 USB Ports, 6 SATA Ports, 4 DIMM Slots and EATX Form Factor

asRock Z77 OC Formula Motherboard. Specifications, price and availability

asRock Z77 OC Formula Motherboard

Intel Socket 1155 Motherboard, with 3 PCI-e x16 Slots/2 PCI-e x1 Slots, on board audio, video and LAN, 6 USB Ports, 6 SATA Ports, 4 DIMM Slots and EATX Form Factor



asRock Z77 OC Formula Motherboard

asRock Z77 OC Formula Motherboard

  • Storage:
    • 2 x SATA3 6.0 Gb/s connectors by Intel ® Z77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and "Hot Plug" functions
    • 4 x SATA3 6.0 Gb/s connectors by Marvell SE9172, support RAID (RAID 0 and RAID 1), NCQ, AHCI and "Hot Plug" functions
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse/Keyboard Port
    • 1 x HDMI Port
    • 1 x Optical SPDIF Out Port
    • 4 x Ready-to-Use USB 2.0 Ports
    • 6 x Ready-to-Use USB 3.0 Ports
    • 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    • 1 x Clear CMOS Switch with LED
    • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 2 x Rear USB 3.0 ports by Intel ® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 4 x Rear USB 3.0 ports by Etron EJ188H, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 1 x Front USB 3.0 header by Intel ® Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
    • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug functions
    • 6 x SATA3 6.0 Gb/s connectors
    • 1 x IR header
    • 1 x CIR header
    • 1 x COM port header
    • 1 x HDMI_SPDIF header
    • 1 x Power LED header
    • V-Probe: 2 x 7-set of onboard voltage measurement points laid
    • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
    • 4 x Chassis Fan connectors (1 x 4-pin, 3 x 3-pin)
    • 1 x Power Fan connector (3-pin)
    • 1 x MOS Fan connector (3-pin)
    • 24 pin ATX power connector
    • 8 pin 12V power connector
    • 4 pin 12V power connector
    • SLI/XFire power connector
    • -Front panel audio connector
    • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
    • 1 x USB 3.0 header (supports 2 USB 3.0 ports)
    • 1 x Dr. Debug with LED
    • 1 x Power Switch with LED
    • 1 x Reset Switch with LED
    • 1 x Clear CMOS Switch with LED
    • Rapid OC Button: +/- buttons to adjust OC frequency
    • 1 x PCIe ON/OFF Switch
    • 1 x Post Status Checker (PSC)
  • Special Features:
    • OC Formula Power Kit: Digi Power
    • Dual-Stack MOSFET (DSM)
    • Multiple Filter Cap (MFC) (Filter different noise by 3 different capacitors: DIP solid cap, POSCAP and MLCC)
    • Premium Alloy Choke (Reduce 70% core loss compare to iron powder choke)
    • OC Formula Connector Kit: Hi-Density Power Connector
    • 15μGold Finger (CPU and memory sockets)
    • OC Formula Cooling Kit: Twin-Power Cooling (Combine active air cooling and water cooling)
    • 8 Layer PCB, 4 x 2oz copper
    • GELID Solutions GC-Extreme Thermal Compound
    • Formula Drive
    • ASRock Instant Boot
    • ASRock Instant Flash
    • ASRock APP Charger
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast RAM
    • ASRock Crashless BIOS
    • ASRock OMG (Online Management Guard)
    • ASRock Internet Flash
    • ASRock UEFI System Browser
    • ASRock Dehumidifier Function
    • ASRock Interactive UEFI
    • NickShih's OC Profile
    • Fine-Tuning V-Controller
    • Timing Configurator
    • Lucid Virtu Universal MVP
    • Hybrid Booster:
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Good Night LED
    • Support C.D: - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
    • O.S:  Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
    • Certifications: - FCC, CE, WHQL
    • ErP/EuP Ready (ErP/EuP ready power supply is required)

Motherboard Specifications

  • Model:
    • asRock Z77 OC Formula Motherboard
  • Processor Support:
    • Supports 3rd and 2nd Generation Intel ® Core i7 / i5 / i3 in LGA1155 Package
    • 12 + 4 Power Phase Design
    • Supports Intel ® Turbo Boost 2.0 Technology
    • Supports Intel ® K-Series unlocked CPU
    • Supports Hyper-Threading Technology
  • Chipset:
    • Intel ® Z77
    • Supports Intel ® Rapid Start Technology and Smart Connect Technology
  • Memory:
    • Dual Channel DDR3 memory technology
    • 4 x DDR3 DIMM slots
    • Supports DDR3 3000+(OC)/2800(OC)/2666(OC)/2400(OC)/2133(OC)
    • /1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
    • Max. capacity of system memory: 32GB*
    • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2
  • Expansion Slots:
    • 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4) or dual at x8/x8 mode)
    • 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode)
    • 2 x PCI Express 2.0 x1 slots
    • Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
    • Supports NVIDIA ® Quad SLI and SLI
  • On-Board Video:
    • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video 2.0, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® Insider, Intel ® HD Graphics 2500/4000 with Intel ® Ivy Bridge CPU
    • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® HD Graphics 2000/3000, Intel ® Advanced Vector Extensions (AVX) with Intel ® Sandy Bridge CPU
    • Pixel Shader 5.0, DirectX 11 with Intel ® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel ® Sandy Bridge CPU
    • Max. shared memory 1760MB with Intel ® Ivy Bridge CPU. Max. shared memory 1759MB with Intel ® Sandy Bridge CPU
    • Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
    • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
    • Supports HDCP function with HDMI port
    • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port
  • On-Board Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec)
    • Premium Blu-ray audio support
    • Supports THX TruStudio
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Broadcom BCM57781
    • Supports Wake-On-LAN
    • Supports Energy Efficient Ethernet 802.3az
    • Supports PXE
  • Form Factor/Dimensions:
    • EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
    • Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  • Hardware Monitoring:
    • CPU/Chassis/Power/MOS Temperature Sensing
    • CPU/Chassis/Power/MOS Fan Tachometer
    • CPU/Chassis/MOS Quiet Fan (Allows Chassis Fan Speed Auto-Adjust by CPU Temperature)
    • CPU/Chassis/MOS Fan Multi-Speed Control
    • Multi Thermal Sensor
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • 1 x ASRock SLI_Bridge_2S Card
    • Quick Installation Guide, Support CD, I/O Shield
    • 6 x SATA Data Cables
    • 2 x SATA 1 to 1 Power Cables
    • 1 x Front USB 3.0 Panel
    • 4 x HDD Screws
    • 6 x Chassis Screws
    • 1 x Rear USB 3.0 Bracket
    • 10 x OC Stands
    • GELID GC-Extreme Thermal Compound
  • BIOS:
    • 2 x 64Mb AMI UEFI Legal BIOS with GUI support (1 x Main BIOS and 1 x Recovery Backup BIOS)
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • SMBIOS 2.3.1 Support
    • CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
