asRock Z77 Pro3

113576 - Intel Socket 1155 Motherboard, with 2 PCI-e x16 Slots/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 4 DIMM Slots and ATX Form Factor
Condition: New, Warranty: 1 year

by asRock

1 review | Add Your Review

$133.75

Qty In Stock

113576 - Z77 Pro3
Intel Socket 1155 Motherboard, with 2 PCI-e x16 Slots/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 4 DIMM Slots and ATX Form Factor

asRock Z77 Pro3 Motherboard. Specifications, price and availability

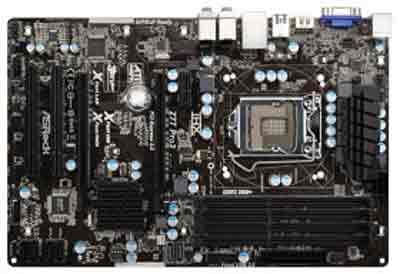

asRock Z77 Pro3 Motherboard

Intel Socket 1155 Motherboard, with 2 PCI-e x16 Slots/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 4 DIMM Slots and ATX Form Factor

asRock Z77 Pro3 Motherboard

Storage:
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug functions

Rear Panel I/O Ports:
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Internal I/O Interface:
- 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS:
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

Special Features:
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock Dehumidifier Function
- ASRock No-K OC Technology
- ASRock On/Off Play Technology
- Lucid Virtu Universal MVP
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Support C.D: Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
- O.S: Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
- Certifications: FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)

Motherboard Specifications

Model:
- asRock Z77 Pro3 Motherboard

Processor Support:
- Supports 3rd and 2nd Generation Intel ® Core i7 / i5 / i3 in LGA1155 Package
- Digi Power Design
- 4 + 1 Power Phase Design
- Supports Intel ® Turbo Boost 2.0 Technology
- Supports Intel ® K-Series unlocked CPU
- Supports Hyper-Threading Technology

Chipset:
- Intel ® Z77
- Supports Intel ® Rapid Start Technology and Smart Connect Technology

Memory:
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2

Expansion Slots:
- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports AMD Quad CrossFireX and CrossFireX

On-Board Video:
- Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video 2.0, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® Insider, Intel ® HD Graphics 2500/4000 with Intel ® Ivy Bridge CPU
- Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® HD Graphics 2000/3000, Intel ® Advanced Vector Extensions (AVX) with Intel ® Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel ® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel ® Sandy Bridge CPU
- Max. shared memory 1760MB with Intel ® Ivy Bridge CPU. Max. shared memory 1759MB with Intel ® Sandy Bridge CPU
- Dual VGA Output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with HDMI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

On-Board Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio

On-Board LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
