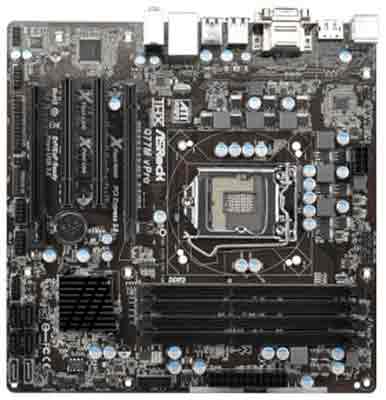

asRock Q77M vPro Motherboard

• Storage:
  • 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug functions

• Rear Panel I/O Ports:

  • 1 x PS/2 Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x DisplayPort
  • 6 x Ready-to-Use USB 2.0 Ports
  • 2 x Ready-to-Use USB 3.0 Ports
  • 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Line in / Front Speaker / Microphone

• Internal I/O Interface:

  • 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
  • 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s
  • 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel ® Rapid Storage and Intel ® Smart Response Technology), NCQ, AHCI and Hot Plug functions
  • 2 x SATA3 6.0 Gb/s connectors
  • 1 x IR header
  • 1 x CIR header
  • 1 x Print port header
  • 1 x COM port header
  • 1 x Power LED header
  • 1 x TPM header
  • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • 1 x USB 3.0 header (supports 2 USB 3.0 ports)


• Special Features:

  • ASRock Extreme Tuning Utility (AXTU)
  • ASRock Instant Boot
  • ASRock Instant Flash
  • ASRock APP Charger
  • ASRock XFast USB
  • ASRock XFast LAN
  • ASRock XFast RAM
  • ASRock Crashless BIOS
  • ASRock OMG (Online Management Guard)
  • ASRock Internet Flash
  • ASRock Dehumidifier Function
  • Hybrid Booster:
  • ASRock U-COP
  • Boot Failure Guard (B.F.G.)
  • Combo Cooler Option (C.C.O.)
  • Good Night LED
  • Support C.D: - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
  • O.S: Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
  • Certifications- FCC, CE, WHQL
  • ErP/EuP Ready (ErP/EuP ready power supply is required)





Motherboard Specifications

• Model:
  • asRock Q77M vPro Motherboard


• Processor Support:

  • Supports 3rd and 2nd Generation Intel ® Core i7 / i5 / i3 in LGA1155 Package
  • 4 + 2 Power Phase Design
  • Supports Intel ® Turbo Boost 2.0 Technology
  • Supports Hyper-Threading Technology

• Chipset:

  •  Intel ® Q77
  • Supports Intel ® vPro Technology
  • Supports Intel ® Active Management Technology 8.0
  • Supports Intel ® Small Business Advantage
  • Supports Intel ® Rapid Start Technology and Smart Connect Technology
  • Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory (DDR3 1600 with Intel ® Ivy Bridge CPU, DDR3 1333 with Intel ® Sandy Bridge CPU)
  • Max. capacity of system memory: 32GB
  • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2

• Memory:

  • Dual Channel DDR3 memory technology
  • 4 x DDR3 DIMM slots
  • Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory*
  • Max. capacity of system memory: 32GB**
  • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2

• Expansion Slots:

  • 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
  • 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
  • 2 x PCI slots
  • Supports AMD Quad CrossFireX and CrossFireX

• On-Board Video:

  • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video 2.0, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® Insider, Intel ® HD Graphics 2500/4000 with Intel ® Ivy Bridge CPU
  • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® HD Graphics 2000/3000, Intel ® Advanced Vector Extensions (AVX) with Intel ® Sandy Bridge CPU
  • Pixel Shader 5.0, DirectX 11 with Intel ® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel ® Sandy Bridge CPU
  • Max. shared memory 1760MB with Intel ® Ivy Bridge CPU. Max. shared memory 1759MB with Intel ® Sandy Bridge CPU
  • Multi VGA Output options: D-Sub, DVI-D and DisplayPort
  • Supports DVI with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
  • Supports DisplayPort with max. resolution up to 2560x1600 @ 60Hz
  • Supports HDCP function with DVI and DisplayPort ports
  • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and DisplayPort ports

• On-Board Audio:

  • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • Supports THX TruStudio

• On-Board LAN:

  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Intel ® 82579LM
  • Supports Wake-On-LAN
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE

• Form Factor/Dimensions:

  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • All Solid Capacitor design
• Hardware Monitoring:

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
• CPU/Chassis Fan Multi-Speed Control
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
• Accessories:

• Quick Installation Guide, Support CD, I/O Shield
• 2 x SATA Data Cables
• BIOS:

• 64Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports jumperfree
• SMBIOS 2.3.1 Support
• CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
