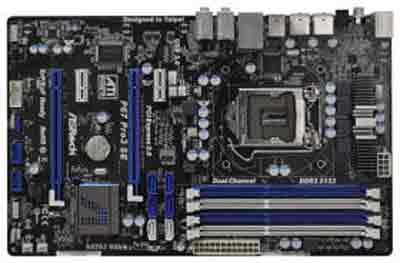

asRock P67 Pro3 SE
Motherboard
- Storage:
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel ® Rapid Storage), NCQ, AHCI and
"Hot Plug" functions
- Rear Panel I/O Ports:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central /
Bass / Line in / Front Speaker / Microphone
- Internal I/O
Interface:
- 2
x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 10, RAID 5 and Intel ® Rapid Storage), NCQ, AHCI and
Hot Plug functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- Special Features:
- ASRock Extreme Tuning Utility (AXTU)
- Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- ASRock XFast USB
- ASRock On/Off Play Technology
- ASRock Dehumidifier Function
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
- Support C.D: Drivers, Utilities, AntiVirus Software
(Trial Version),
- ASRock Software Suite (CyberLink DVD Suite - OEM and
Trial; Creative Sound Blaster X-Fi MB - Trial)
- Support C.D: Quick Installation Guide, Support CD, I/O
Shield
- 2 x SATA Data Cables
- O.S: Microsoft ® Windows ® 7 / 7 64-bit /
Vista / Vista 64-bit / XP / XP 64-bit compliant
- Certificatios: FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
|
Motherboard Specifications
- Model:
- asRock P67 Pro3 SE Motherboard
- Processor Support:
- Supports 2nd Generation Intel ® Core i7 / i5 / i3
in LGA1155 Package
- Supports Intel ® Turbo Boost 2.0 Technology
- Supports Intel ® K-Series unlocked CPU
- Supports Hyper-Threading Technology
- Memory:
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC,
un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel ® Extreme Memory Profile (XMP)
- Expansion Slots:
- 2 x PCI Express 2.0 x16 slots (PCIE2 @ x16 mode; PCIE4
@ x4 mode)
- 2 x PCI Express 2.0 x1 slots
- Supports ATI Quad CrossFireX and CrossFireX
- On-Board Audio:
- 7.1 CH HD Audio with Content Protection (Realtek
ALC892 Audio Codec)
- Premium Blu-ray audio support
- On-Board LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Atheros AR8151
- Supports Wake-On-LAN
- Supports PXE
- Form
Factor/Dimensions:
- ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm
- All Solid Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
- Hardware Monitoring:
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed
Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- BIOS:
- 64Mb AMI UEFI Legal BIOS with GUI support
- ACPI 1.1 Compliance Wake Up Events
- DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
|
