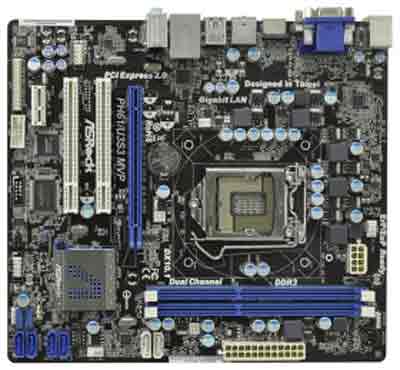

asRock PH61/U3S3 MVP

113634 - Intel Socket 1155 Motherboard, with 1 PCI-e x16 Slot/2 PCI-e x1 Slots/2 PCI Slots, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 4 DIMM Slots and ATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$0.00

113634 - PH61/U3S3 MVP
Intel Socket 1155 Motherboard, with 1 PCI-e x16 Slot/2 PCI-e x1 Slots/2 PCI Slots, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 4 DIMM Slots and ATX Form Factor

asRock PH61/U3S3 MVP Motherboard. Specifications, price and availability

asRock PH61/U3S3 MVP Motherboard

Intel Socket 1155 Motherboard, with 1 PCI-e x16 Slot/2 PCI-e x1 Slots/2 PCI Slots, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 4 DIMM Slots and ATX Form Factor



asRock PH61/U3S3 MVP Motherboard

asRock PH61/U3S3 MVP Motherboard

  • Storage:
    • 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and "Hot Plug" functions
  • Rear Panel I/O Ports:
    • 1 x PS/2 Keyboard Port
    • 1 x D-Sub Port
    • 1 x DVI-D Port
    • 1 x HDMI Port
    • 1 x Optical SPDIF Out Port
    • 4 x Ready-to-Use USB 2.0 Ports
    • 2 x Ready-to-Use USB 3.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    •  2 x USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
    • 2 x SATA3 6.0 Gb/s connectors
    • 1 x IR header
    • 1 x Print Port header
    • 1 x COM port header
    • 1 x HDMI_SPDIF header
    • CPU/Chassis/Power FAN connector
    • 24 pin ATX power connector
    • 8 pin 12V power connector
    • Front panel audio connector
    • 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • Special Features:
    • ASRock Extreme Tuning Utility (AXTU)
    • ASRock Instant Boot
    • ASRock Instant Flash
    • ASRock APP Charger
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast RAM
    • ASRock Crashless BIOS
    • ASRock OMG (Online Management Guard)
    • ASRock Internet Flash
    • Lucid Virtu Universal MVP
    • Hybrid Booster:
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Combo Cooler Option (C.C.O.)
    • Good Night LED
    • Support C.D: Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
    • O.S: Microsoft ® Windows ® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
    • Certifications:  FCC, CE, WHQL
    • ErP/EuP Ready (ErP/EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock PH61/U3S3 MVP Motherboard
  • Processor Support:
    • Supports 3rd and 2nd Generation Intel ® Core i7 / i5 / i3 in LGA1155 Package
    • 4 + 1 Power Phase Design
    • Supports Intel ® Turbo Boost 2.0 Technology
    • Supports Intel ® K-Series CPU
    • Supports Hyper-Threading Technology
  • Chipset:
    • Intel ® H61
    • Supports Intel ® Rapid Start Technology and Smart Connect Technology
  • Memory:
    • Dual Channel DDR3 memory technology
    • 4 x DDR3 DIMM slots
    • Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
    • Max. capacity of system memory: 16GB*
    • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2 with Intel ® Ivy Bridge CPU
  • Expansion Slots:
    • 1 x PCI Express 3.0 x16 slot (PCIE1 @ x16 mode)
    • 2 x PCI Express 2.0 x1 slots
    • 2 x PCI slots
  • On-Board Video:
    •  Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video 2.0, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® Insider, Intel ® HD Graphics 2500/4000 with Intel ® Ivy Bridge CPU
    • Supports Intel ® HD Graphics Built-in Visuals : Intel ® Quick Sync Video, Intel ® InTru 3D, Intel ® Clear Video HD Technology, Intel ® HD Graphics 2000/3000, Intel ® Advanced Vector Extensions (AVX) with Intel ® Sandy Bridge CPU
    • Pixel Shader 5.0, DirectX 11 with Intel ® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel ® Sandy Bridge CPU.
    • Max. shared memory 1760MB with Intel ® Ivy Bridge CPU. Max. shared memory 1759MB with Intel ® Sandy Bridge CPU.
    • Multi VGA Output options: D-Sub, DVI-D and HDMI
    • Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
    • Supports DVI with max. resolution up to 1920x1200 @ 60Hz
    • Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
    • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
    • Supports HDCP function with DVI and HDMI ports
    • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
  • On-Board Audio:
    • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    • Supports THX TruStudio
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Atheros AR8151
    • Supports Wake-On-LAN
    • Supports LAN Cable Detection
    • Supports PXE
  • Form Factor/Dimensions:
    • ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
    • All Solid Capacitor design
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU/Chassis/Power Fan Tachometer
    • CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    • CPU/Chassis Fan Multi-Speed Control
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
  • BIOS:
    •  32Mb AMI UEFI Legal BIOS with GUI support
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • Supports jumperfree
    • SMBIOS 2.3.1 Support
    • IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment
