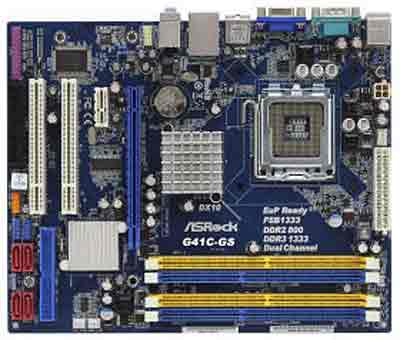

asRock G41C-GS

113700 - Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$0.00

113700 - G41C-GS
Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor

asRock G41C-GS Motherboard. Specifications, price and availability

asRock G41C-GS Motherboard

Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor



asRock G41C-GS Motherboard

asRock G41C-GS Motherboard

  • Storage:
    • 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse Port
    • 1 x PS/2 Keyboard Port
    • 1 x Serial Port: COM1
    • 1 x VGA Port
    • 4 x Ready-to-Use USB 2.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jack: Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
    •  1 x ATA100 IDE connector (supports 2 x IDE devices)
    •  1 x Floppy connector
    •  1 x Print port header
    •  CPU/Chassis/Power FAN connector
    •  24 pin ATX power connector
    •  4 pin 12V power connector
    •  Front panel audio connector
    •  2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • BIOS:
    •  8Mb AMI Legal BIOS
    •  Supports "Plug and Play"
    •  ACPI 1.1 Compliance Wake Up Events
    •  SMBIOS 2.3.1 Support
    •  VCCM, NB, VTT, GTLRef Voltage Multi-adjustment
  • Special Features:
    • ASRock OC Tuner
    • Intelligent Energy Saver
    • Instant Boot
    • ASRock Instant Flash
    • ASRock OC DNA
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    •  Boot Failure Guard (B.F.G.)
    • Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite -OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
    • Microsoft ®  Windows ®  7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
    •  FCC, CE
    •  EuP Ready (EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock G41C-GS Motherboard
  • Processor Support:
    • LGA 775 for Intel ®  Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium ®  Dual Core / Celeron ®  Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
    • Supports FSB1333/1066/800/533 MHz
    • Supports Hyper-Threading Technology
    • Supports Untied Overclocking Technology
    • Supports EM64T CPU
  • Chipset:
    • Northbridge: Intel ®  G41
    • Southbridge: Intel ®  ICH7
  • Memory:
    • Dual Channel DDR3/DDR2 memory technology*
    • 2 x DDR3 DIMM slots
    • Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
    • Max. capacity of system memory: 8GB**
    • 2 x DDR2 DIMM slots
    • Supports DDR2 800/667/533 non-ECC, un-buffered memory
    • Max. capacity of system memory: 8GB**
  • Expansion Slots:
    • 1 x PCI Express x16 slot
    • 1 x PCI Express x1 slot
    • 2 x PCI slots
  • On-Board Video:
    • Intel ®  Graphics Media Accelerator X4500
    • Pixel Shader 4.0, DirectX 10
    • Max. shared memory 1759MB*
    • Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
  • On-Board Audio:
    • 5.1 CH HD Audio (VIA ®  VT1705 Audio Codec)
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Realtek RTL8111DL
    • Supports Wake-On-LAN
    • Supports PXE
  • Form Factor/Dimensions:
    • Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
  • Hardware Monitoring:
    •  CPU Temperature Sensing
    •  Chassis Temperature Sensing
    •  CPU/Chassis/Power Fan Tachometer
    •  CPU Quiet Fan
    •  Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    •  2 x SATA Data Cables
