asRock G41M-S3
Motherboard
Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1
Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA
Ports, 2 DIMM Slots and Micro ATX Form Factor
|

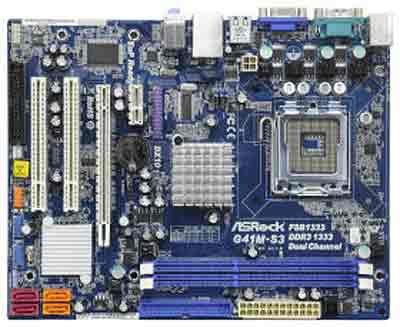

asRock G41M-S3 Motherboard
- Storage:
- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and
"Hot Plug" functions)
- Rear Panel I/O Ports:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x VGA Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED)
- HD Audio Jack: Line in / Front Speaker /
Microphone
- Internal
I/O
Interface:
- 4 x SATA2 3.0 Gb/s connectors (No support for
RAID and "Hot Plug" functions)
- 1 x ATA100 IDE connector (supports 2 x IDE
devices)
- 1 x Floppy connector
- 1 x Print port header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- Special Features:
- ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Drivers, Utilities, AntiVirus Software (Trial
Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
- Microsoft ® Windows ® 7 / 7 64-bit / Vista /
Vista 64-bit / XP / XP 64-bit compliant
- FCC,
CE
- EuP Ready (EuP ready power supply is required)
|
Motherboard Specifications
- Model:
- asRock G41M-S3 Motherboard
- Processor Support:
- LGA 775 for Intel ® Core 2 Extreme / Core 2 Quad
/ Core 2 Duo / Pentium ® Dual Core / Celeron ® Dual Core /
Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale
processors
- Supports FSB1333/1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
- Chipset:
- Northbridge: Intel ® G41
- Southbridge: Intel ® ICH7
- Memory:
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1333(OC)/1066/800 non-ECC,
un-buffered memory
- Max. capacity of system memory: 8GB*
- Expansion Slots:
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 2 x PCI slots
- On-Board Video:
- Intel ® Graphics Media Accelerator X4500
- Pixel Shader 4.0, DirectX 10
- Max. shared memory 1759MB*
- Supports D-Sub with max. resolution up to
2048x1536 @ 60Hz
- On-Board Audio:
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- On-Board LAN:
- Realtek PCIEx1 LAN 8103EL / 8102EL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE
- Form
Factor/Dimensions:
- Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3
cm
- Hardware Monitoring:
- Chassis Temperature Sensing
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- BIOS:
- ACPI 1.1 Compliance Wake Up Events
- CPU, VCCM, NB, SB,VTT Voltage Multi-adjustment
|
