asRock G41M-VS3 R2.0

113703 - Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI Slot, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$75.50

113703 - G41M-VS3 R2.0
Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI Slot, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor

asRock G41M-VS3 R2.0 Motherboard. Specifications, price and availability

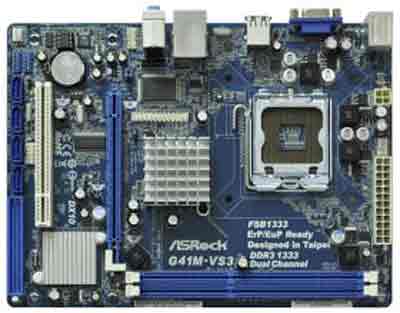

asRock G41M-VS3 R2.0 Motherboard

Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI Slot, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor



asRock G41M-VS3 R2.0 Motherboard

asRock G41M-VS3 R2.0 Motherboard

  • Storage:
    •  4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse Port
    • 1 x PS/2 Keyboard Port
    • 1 x VGA Port
    • 4 x Ready-to-Use USB 2.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jack: Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    •  4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
    •  1 x ATA100 IDE connector (supports 2 x IDE devices)
    •  1 x Print port header
    •  1 x COM port header
    •  CPU/Chassis FAN connector
    •  24 pin ATX power connector
    •  4 pin 12V power connector
    •  Front panel audio connector
    •  2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • Special Features:
    •  ASRock OC Tuner
    •  Intelligent Energy Saver
    •  Instant Boot
    •  ASRock Instant Flash
    •  ASRock OC DNA
    •  ASRock AIWI
    •  ASRock APP Charger
    •  ASRock XFast USB
    •  Hybrid Booster:
    •  CPU Frequency Stepless Control
    •  ASRock U-COP
    •  Boot Failure Guard (B.F.G.)
    •  Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
    •  Microsoft ® Windows ® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant
    • FCC, CE, WHQL
    •  ErP/EuP Ready (ErP/EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock G41M-VS3 R2.0 Motherboard
  • Processor Support:
    •  LGA 775 for Intel ® Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium ® Dual Core / Celeron ® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
    •  Supports FSB1333/1066/800/533 MHz
    •  Supports Hyper-Threading Technology
    •  Supports Untied Overclocking Technology
    •  Supports EM64T CPU
  • Chipset:
    •  Northbridge: Intel ® G41
    •  Southbridge: Intel ® ICH7
  • Memory:
    •  Dual Channel DDR3 memory technology
    •  2 x DDR3 DIMM slots
    •  Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory
    •  Max. capacity of system memory: 8GB*
  • Expansion Slots:
    • 1 x PCI Express x16 slot
    • 1 x PCI slot
  • On-Board Video:
    •  Intel ® Graphics Media Accelerator X4500
    •  Pixel Shader 4.0, DirectX 10
    •  Max. shared memory 1759MB*
    •  Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
  • On-Board Audio:
    • 5.1 CH HD Audio (VIA ® VT1705 Audio Codec)
  • On-Board LAN:
    • Atheros PCIEx1 LAN AR8152
    • Speed: 10/100 Ethernet
    • Supports Wake-On-LAN
    • Supports PXE
  • Form Factor/Dimensions:
    • Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm
  • Hardware Monitoring:
    • CPU Temperature Sensing
    •  Chassis Temperature Sensing
    •  CPU Fan Tachometer
    •  Chassis Fan Tachometer
    •  CPU Quiet Fan
    •  Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    •  Quick Installation Guide, Support CD, I/O Shield
    •  2 x SATA Data Cables
  • BIOS:
    •  8Mb AMI Legal BIOS
    •  Supports "Plug and Play"
    •  ACPI 1.1 Compliance Wake Up Events
    •  SMBIOS 2.3.1 Support
    •  VCCM, NB, VTT, GTLRef Voltage Multi-adjustment
