asRock G31M-GS R2.0

113704 - Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$78.75

113704 - G31M-GS R2.0
Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor

asRock G31M-GS R2.0 Motherboard. Specifications, price and availability

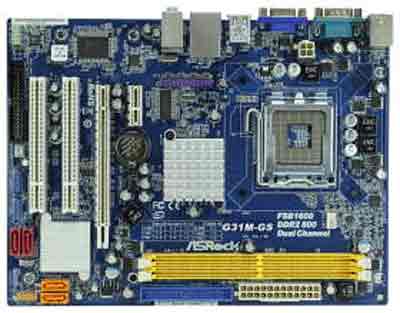

asRock G31M-GS R2.0 Motherboard

Intel Socket LGA775 Motherboard, with 1 PCI-e x16 Slot/1 PCI-e x1 Slot/2 PCI Slots, on board audio, video and LAN, 4 USB Ports, 4 SATA Ports, 2 DIMM Slots and Micro ATX Form Factor



asRock G31M-GS R2.0 Motherboard

asRock G31M-GS R2.0 Motherboard

  • Storage:
    • 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
  • Rear Panel I/O Ports:
    •  1 x PS/2 Mouse Port
    •  1 x PS/2 Keyboard Port
    •  1 x Serial Port: COM1
    •  1 x VGA Port
    •  4 x Ready-to-Use USB 2.0 Ports
    •  1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    •  HD Audio Jack: Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 4 x SATA2 3.0 Gb/s connectors (No support for RAID and "Hot Plug" functions)
    •  1 x ATA100 IDE connector (supports 2 x IDE devices)
    •  1 x Floppy connector
    •  1 x Print port header
    •  CPU/Chassis FAN connector
    •  24 pin ATX power connector
    •  4 pin 12V power connector
    •  Front panel audio connector
    •  2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • BIOS:
    •  4Mb AMI BIOS
    •  AMI Legal BIOS
    •  Supports "Plug and Play"
    •  ACPI 1.1 Compliance Wake Up Events
    •  SMBIOS 2.3.1 Support
    •  VCCM Voltage Multi-adjustment
    •  Supports Smart BIOS
  • Special Features:
    • ASRock OC Tuner
    • Intelligent Energy Saver
    • Instant Boot
    • ASRock Instant Flash
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Drivers, Utilities, AntiVirus Software (Trial Version)
    • Microsoft ®  Windows ®  7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit / 2000 compliant
    • FCC, CE
    • EuP Ready (EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock G31M-GS R2.0 Motherboard
  • Processor Support:
    • LGA 775 for Intel ®  Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium ®  Dual Core / Celeron ®  Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
    • Compatible with all FSB1600*/1333/1066/800 MHz CPUs
    • Supports CPU up to 105W
    • Supports Hyper-Threading Technology
    • Supports Untied Overclocking Technology
    • Supports EM64T CPU
  • Chipset:
    • Northbridge: Intel ®  G31
    • Southbridge: Intel ®  ICH7
  • Memory:
    •  Dual Channel DDR2 memory technology
    •  2 x DDR2 DIMM slots
    •  Supports DDR2 800/667 non-ECC, un-buffered memory
    •  Max. capacity of system memory: 8GB*
  • Expansion Slots:
    • 1 x PCI Express x16 slot
    • 1 x PCI Express x1 slot
    • 2 x PCI slots
  • On-Board Video:
    • Intel ®  Graphics Media Accelerator 3100
    • Pixel Shader 2.0, DirectX 9.0
    • Max. shared memory 384MB
    • Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
  • On-Board Audio:
    • 5.1 CH Windows ®  Vista Premium Level HD Audio (Realtek ALC662 Audio Codec)
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Realtek RTL8111DL
    • Supports Wake-On-LAN
    • Supports PXE
  • Form Factor/Dimensions:
    • Micro ATX Form Factor: 9.6-in x 7.2-in, 24.4 cm x 18.3 cm
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU Fan Tachometer
    • Chassis Fan Tachometer
    • CPU Quiet Fan
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    • ATA 100 Cable
    • 1 x SATA Data Cable
