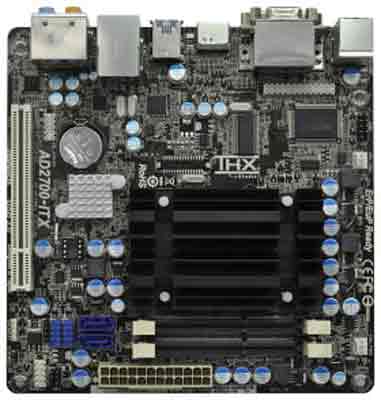

asRock AD2700-ITX

113711 - Intel® Dual-Core Atom Processor D2700 (2.13 GHz) Motherboard, with 1 PCI Slot, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 2 x DDR3 SO-DIMM Slots and Mini-ITX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$115.00

113711 - AD2700-ITX
Intel® Dual-Core Atom Processor D2700 (2.13 GHz) Motherboard, with 1 PCI Slot, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 2 x DDR3 SO-DIMM Slots and Mini-ITX Form Factor

asRock AD2700-ITX Motherboard. Specifications, price and availability

asRock AD2700-ITX Motherboard

 Intel ®  Dual-Core Atom Processor D2700 (2.13 GHz) Motherboard, with 1 PCI Slot, on board audio, video and LAN, 6 USB Ports, 2 SATA Ports, 2 x DDR3 SO-DIMM Slots and Mini-ITX Form Factor



asRock AD2700-ITX Motherboard

asRock AD2700-ITX Motherboard

  • Storage:
    •  2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
  • Rear Panel I/O Ports:
    •  1 x PS/2 Keyboard Port
    •  1 x D-Sub Port
    •  1 x DVI-D Port
    •  1 x HDMI Port
    •  1 x Optical SPDIF Out Port
    •  4 x Ready-to-Use USB 2.0 Ports
    •  2 x Ready-to-Use USB 3.0 Ports
    •  1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    •  HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 2 x USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
    • 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
    •  1 x IR header
    •  1 x CIR header
    •  1 x Print Port header
    •  1 x COM port header
    •  CPU/Chassis FAN connector
    •  24 pin ATX power connector
    •  Front panel audio connector
    •  2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • BIOS:
    • 16Mb AMI UEFI Legal BIOS with GUI support
    •  Supports "Plug and Play"
    •  ACPI 1.1 Compliance Wake Up Events
    •  Supports jumperfree
    •  SMBIOS 2.3.1 Support
  • Special Features:
    •  ASRock Instant Boot
    •  ASRock Instant Flash
    •  ASRock APP Charger
    •  ASRock XFast USB
    •  ASRock XFast LAN
    •  ASRock XFast RAM
    •  ASRock On/Off Play Technology
    •  Hybrid Booster:
    •  CPU Frequency Stepless Control
    •  ASRock U-COP
    •  Boot Failure Guard (B.F.G.)
    • Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; ASRock MAGIX Multimedia Suite - OEM)
    •  Microsoft ®  Windows ®  7 32-bit compliant
    •  FCC, CE, WHQL
    •  ErP/EuP Ready (ErP/EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock AD2700-ITX Motherboard
  • Processor Support:
    •  Intel ®  Dual-Core Atom Processor D2700 (2.13 GHz)
    •  Supports Hyper-Threading Technology
  • Chipset:
    •  Southbridge: Intel ®  NM10 Express
  • Memory:
    •  2 x DDR3 SO-DIMM slots
    •  Supports DDR3 1066/800 non-ECC, un-buffered memory
    •  Max. capacity of system memory: 4GB*
  • Expansion Slots:
    •  1 x PCI slot
  • On-Board Video:
    •  Intel ®  PowerVR SGX545
    •  DirectX 9.0, Pixel Shader 3.0
    •  Multi VGA Output options: D-Sub, DVI-D and HDMI
    •  Supports HDMI 1.3a Technology with max. resolution up to 1920x1200
    •  Supports DVI with max. resolution up to 1920x1200 @ 60Hz
    •  Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    •  Supports HDCP function with DVI and HDMI ports
    •  Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
  • On-Board Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    •  Premium Blu-ray audio support
    •  Supports THX TruStudio
  • On-Board LAN:
    •   PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    •  Realtek RTL8111E
    •  Supports Wake-On-LAN
    •  Supports LAN Cable Detection
    •  Supports Energy Efficient Ethernet 802.3az
    •  Supports PXE
  • Form Factor/Dimensions:
    •  Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    •  All Solid Capacitor design
  • Hardware Monitoring:
    •  CPU Temperature Sensing
    •  Chassis Temperature Sensing
    •  CPU Fan Tachometer
    •  Chassis Fan Tachometer
    •  CPU/Chassis Quiet Fan
    •  Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    •  1 x 3.5mm Audio Cable
    •  2 x SATA Data Cables
