asRock AD2550B-ITX

113713 - ntel® Dual-Core Atom Processor D2550 (1.86 GHz) Motherboard, with 1 PCI Slot, on board audio, video and LAN, 4 USB Ports, 2 SATA Ports, 2 SO-DIMM Slots and Mini-ITX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$105.00

113713 - AD2550B-ITX
ntel® Dual-Core Atom Processor D2550 (1.86 GHz) Motherboard, with 1 PCI Slot, on board audio, video and LAN, 4 USB Ports, 2 SATA Ports, 2 SO-DIMM Slots and Mini-ITX Form Factor

asRock AD2550B-ITX Motherboard. Specifications, price and availability

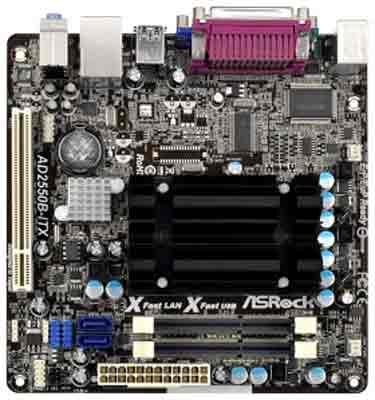

asRock AD2550B-ITX Motherboard

Intel ®  Dual-Core Atom Processor D2550 (1.86 GHz) Motherboard, with 1 PCI Slot, on board audio, video and LAN, 4 USB Ports, 2 SATA Ports, 2 SO-DIMM Slots and Mini-ITX Form Factor



asRock Ad2550B-ITX Motherboard

asRock Ad2550B-ITX Motherboard

  • Storage:
    • 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse Port
    • 1 x PS/2 Keyboard Port
    • 1 x Parallel Port (ECP/EPP Support)
    • 1 x Serial Port: COM1
    • 1 x VGA Port
    • 4 x Ready-to-Use USB 2.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jack: Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    •  2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
    • 1 x IR header
    • 1 x CIR header
    • CPU/Chassis FAN connector
    • 24 pin ATX power connector
    • Front panel audio connector
    • 2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • Special Features:
    • ASRock Instant Boot
    • ASRock Instant Flash
    • ASRock APP Charger
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast RAM
    • ASRock Crashless BIOS
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Support C.D:   Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
    • O.S:   Microsoft ®  Windows ®  7 32-bit compliant  *  Due to lack of Intel ®  64-bit VGA driver support, this motherboard does not support 64-bit OS.
    • Certifications: FCC, CE, WHQL
    • ErP/EuP Ready (ErP/EuP ready power supply is required)

Motherboard Specifications

  • Model:
    • asRock Ad2550B-ITX Motherboard
  • Processor Support:
    • Intel ®  Dual-Core Atom Processor D2550 (1.86 GHz)
  • Chipset:
    • Southbridge: Intel ®  NM10 Express
  • Memory:
    • 2 x DDR3 SO-DIMM slots
    • Supports DDR3 1066/800 non-ECC, un-buffered memory
    • Max. capacity of system memory: 4GB*
  • Expansion Slots:
    • 1 x PCI slot
  • On-Board Video:
    • Intel ®  PowerVR SGX545
    • DirectX 9.0, Pixel Shader 3.0
    • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  • On-Board Audio:
    • 5.1 CH HD Audio (VIA ®  VT1705 Audio Codec)
    • Supports THX TruStudio
  • On-Board LAN:
    • Realtek PCIE x1 LAN RTL8105E
    • Speed: 10/100 Ethernet
    • Supports Wake-On-LAN
    • Supports PXE
  • Form Factor/Dimensions:
    • Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    • Solid Capacitor for CPU power
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU Fan Tachometer
    • Chassis Fan Tachometer
    • CPU/Chassis Quiet Fan
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
  • BIOS:
    • 16Mb AMI UEFI Legal BIOS with GUI support
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • Supports jumperfree
    • SMBIOS 2.3.1 Support
