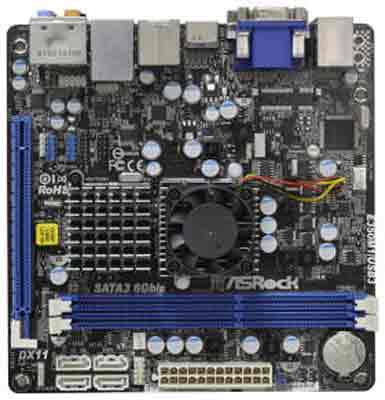

asRock E350M1/USB3

113714 - AMD Dual-Core Zacate E350/E350D APU Motherboard, with 1 PCI-e x16 Slot, on board audio, video and LAN, 6 USB Ports, 4 SATA Ports, 2 DIMM Slots and Mini-ITX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$148.75

113714 - E350M1/USB3
AMD Dual-Core Zacate E350/E350D APU Motherboard, with 1 PCI-e x16 Slot, on board audio, video and LAN, 6 USB Ports, 4 SATA Ports, 2 DIMM Slots and Mini-ITX Form Factor

asRock E350M1/USB3 Motherboard. Specifications, price and availability

asRock E350M1/USB3 Motherboard

AMD Dual-Core Zacate E350/E350D APU Motherboard, with 1 PCI-e x16 Slot, on board audio, video and LAN, 6 USB Ports, 4 SATA Ports, 2 DIMM Slots and Mini-ITX Form Factor



asRock E350M1/USB3 Motherboard

asRock E350M1/USB3 Motherboard

  • Storage:
    •  4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
  • Rear Panel I/O Ports:
    •  1 x PS/2 Keyboard/Mouse Port
    •  1 x VGA/D-Sub Port
    •  1 x VGA/DVI-D Port
    •  1 x HDMI Port
    •  1 x Optical SPDIF Out Port
    •  4 x Ready-to-Use USB 2.0 Ports
    •  1 x eSATA3 Connector
    •  2 x Ready-to-Use USB 3.0 Ports
    •  1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    •  HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    •  2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s
    •  4 x SATA3 6.0 Gb/s connectors
    •  1 x CIR header
    •  1 x COM port header
    •  CPU/Chassis FAN connector
    •  24 pin ATX power connector
    •  Front panel audio connector
    •  2 x USB 2.0 headers (support 4 USB 2.0 ports)
  • BIOS:
    • 32Mb AMI UEFI Legal BIOS with GUI support
    •  Supports "Plug and Play"
    •  ACPI 1.1 Compliance Wake Up Events
    •  Supports jumperfree
    •  SMBIOS 2.3.1 Support
    •  DRAM, FCH, +1V, +1.8V Voltage Multi-adjustment
  • Special Features:
    •  Instant Boot
    •  ASRock Instant Flash
    •  ASRock AIWI
    •  ASRock APP Charger
    •  Hybrid Booster:
    •  ASRock U-COP
    •  Boot Failure Guard (B.F.G.)
    • Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
    • Microsoft ® Windows ® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit compliant
    •  FCC, CE, WHQL
    •  ErP/EuP Ready (ErP/EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock E350M1/USB3 Motherboard
  • Processor Support:
    •  AMD Dual-Core Zacate E350/E350D APU
    •  Supports AMD's Cool 'n' Quiet Technology
    •  UMI 2.5 GT/s
  • Chipset:
    •  AMD A50M Chipset
  • Memory:
    •  2 x DDR3 DIMM slots
    •  Supports DDR3 1066/800 non-ECC, un-buffered memory
    •  Max. capacity of system memory: 16GB*
  • Expansion Slots:
    • 1 x PCI Express 2.0 x16 slot (blue @ x4 mode)
  • On-Board Video:
    •   Integrated AMD Radeon HD 6310 graphics
    •  DX11 class iGPU, Pixel Shader 5.0
    •  Max. shared memory 512MB
    •  Multi VGA Output options: D-Sub, DVI-D and HDMI
    •  Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
    •  Supports DVI with max. resolution up to 1920x1200 @ 75Hz
    •  Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz
    •  Supports HDCP function with DVI and HDMI ports
    •  Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
    •  Supports Dolby ® TrueHD and DTS-HD Master Audio through HDMI port
  • On-Board Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
    •  Premium Blu-ray audio support
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Realtek RTL8111E
    • Supports Wake-On-LAN
    • Supports LAN Cable Detection
    • Supports Energy Efficient Ethernet 802.3az
  • Form Factor/Dimensions:
    • Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    • All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU/Chassis Fan Tachometer
    • CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature)
    • CPU/Chassis Fan Multi-Speed Control
    • Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
