asRock 770iCafe

113733 - AMD Socket AM3+ Motherboard, with 1 PCI-e x16 Slot/2 PCI-e x1 Slots/2 PCI Slots, on board audio and LAN, 6 USB Ports, 6 SATA Ports, 4 DIMM Slots and ATX Form Factor
Condition: New, Warranty: 1 year
by asRock
1 review | Add Your Review

$0.00

113733 - 770iCafe
AMD Socket AM3+ Motherboard, with 1 PCI-e x16 Slot/2 PCI-e x1 Slots/2 PCI Slots, on board audio and LAN, 6 USB Ports, 6 SATA Ports, 4 DIMM Slots and ATX Form Factor

asRock 770iCafe Motherboard. Specifications, price and availability

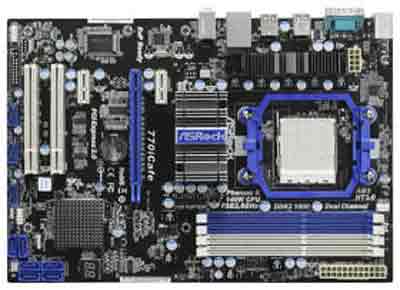

asRock 770iCafe Motherboard

AMD Socket AM3+ Motherboard, with 1 PCI-e x16 Slot/2 PCI-e x1 Slots/2 PCI Slots, on board audio and LAN, 6 USB Ports, 6 SATA Ports, 4 DIMM Slots and ATX Form Factor



asRock 770iCafe Motherboard

asRock 770iCafe  Motherboard

  • Storage:
    • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
  • Rear Panel I/O Ports:
    • 1 x PS/2 Mouse Port
    • 1 x PS/2 Keyboard Port
    • 1 x Serial Port: COM1
    • 6 x Ready-to-Use USB 2.0 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jack: Line in / Front Speaker / Microphone
  • Internal I/O Interface:
    • 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
    • 1 x IR header
    • 1 x Power LED header
    • CPU/Chassis/Power FAN connector
    • 24 pin ATX power connector
    • 8 pin 12V power connector
    • Front panel audio connector
    • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
    • 1 x Dr. Debug (7-Segment Debug LED)
  • Special Features:
    • ASRock OC Tuner
    • Intelligent Energy Saver
    • Instant Boot
    • ASRock Instant Flash
    • ASRock OC DNA
    • ASRock XFast USB
    • ASRock XFast LAN
    • ASRock XFast RAM
    • Hybrid Booster:
    • CPU Frequency Stepless Control
    • ASRock U-COP
    • Boot Failure Guard (B.F.G.)
    • Support C.D: Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDrive Utility, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
    • O.S:  Microsoft ® Windows ® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit compliant
    • Certifications: FCC, CE, WHQL
    • EuP Ready (EuP ready power supply is required)


Motherboard Specifications

  • Model:
    • asRock 770iCafe  Motherboard
  • Processor Support:
    • Support for Socket AM3+ processors*
    • Support for Socket AM3 processors: AMD Phenom II X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
    • Supports CPU up to 140W
    • Supports ASRock UCC - Unlock CPU Core
    • AMD LIVE! Ready
    • Supports AMD's Cool 'n' Quiet Technology
    • FSB 2600 MHz (5.2 GT/s)
    • Supports Untied Overclocking Technology
    • Supports Hyper-Transport 3.0 (HT 3.0) Technology
  • Chipset:
    • Northbridge: AMD 770
    • Southbridge: AMD SB710
  • Memory:
    • Dual Channel DDR3 memory technology
    • 4 x DDR3 DIMM slots
    • Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
    • Max. capacity of system memory: 16GB*
  • Expansion Slots:
    • 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
    • 2 x PCI Express 2.0 x1 slots
    • 2 x PCI slots
  • On-Board Audio:
    •  5.1 CH HD Audio (Realtek ALC662 Audio Codec)
  • On-Board LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Realtek RTL8111C
    • Supports Wake-On-LAN
    • Supports PXE
  • Form Factor/Dimensions:
    • ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm
    • All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
  • Hardware Monitoring:
    • CPU Temperature Sensing
    • Chassis Temperature Sensing
    • CPU/Chassis/Power Fan Tachometer
    • CPU Quiet Fan
    • Voltage Monitoring: +12V, +5V, +3.3V, Vcore
  • Accessories:
    • Quick Installation Guide, Support CD, I/O Shield
    • 2 x SATA Data Cables
  • BIOS:
    • 8Mb AMI Legal BIOS
    • Supports "Plug and Play"
    • ACPI 1.1 Compliance Wake Up Events
    • Supports jumperfree
    • SMBIOS 2.3.1 Support
    • CPU VID Voltage Multi-adjustment
