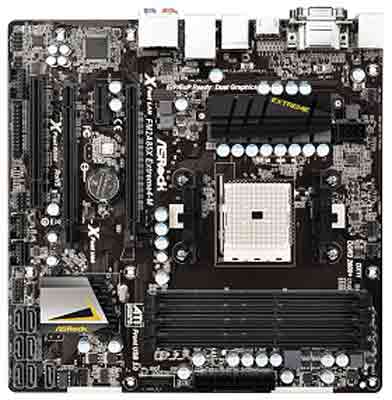

asRock FM2A85X Extreme4-M Motherboard

• Storage:
  • 7 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5 and RAID 10), NCQ, AHCI and "Hot Plug" functions

• Rear Panel I/O Ports:

  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 1 x Optical SPDIF Out Port
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x eSATA3 Connector
  • 2 x Ready-to-Use USB 3.0 Ports
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

• Internal I/O Interface:

  • 2 x Rear USB 3.0 ports, support USB 1.1/2.0/3.0 up to 5Gb/s
  • 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.1/2.0/3.0 up to 5Gb/s
  • 7 x SATA3 6.0 Gb/s connectors
  • 1 x IR header
  • 1 x CIR header
  • 1 x Print port header
  • 1 x COM port header
  • 1 x Power LED header
  • 1 x Chassis Intrusion header
  • 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
  • 1 x Chassis Fan connector (4-pin)
  • 1 x Power Fan connector (3-pin)
  • 24 pin ATX power connector
  • 8 pin 12V power connector
  • Front panel audio connector
  • 3 x USB 2.0 headers (support 6 USB 2.0 ports)
  • 1 x USB 3.0 header (supports 2 USB 3.0 ports)


• Special Features:

  • ASRock Extreme Tuning Utility (AXTU)
  • ASRock Instant Boot
  • ASRock Instant Flash
  • ASRock APP Charger
  • ASRock XFast USB
  • ASRock XFast LAN
  • ASRock XFast RAM
  • ASRock Crashless BIOS
  • ASRock OMG (Online Management Guard)
  • ASRock Internet Flash
  • ASRock UEFI System Browser
  • ASRock On/Off Play Technology
  • ASRock Dehumidifier Function
  • ASRock Easy RAID Installer
  • ASRock Interactive UEFI
  • ASRock Fast Boot
  • ASRock X-Boost
  • ASRock Restart to UEFI
  • Hybrid Booster:
  • ASRock U-COP
  • Support C.D: Drivers, Utilities, AntiVirus Software (Trial Version), AMD Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite

  • OEM, Google Chrome Browser and Toolbar
  • O.S: Microsoft ® Windows ® 8 / 8 64-bit / 7 / 7 64-bit / Vista / Vista 64-bit compliant
  • Certifications: FCC, CE, WHQL
  • ErP/EuP Ready (ErP/EuP ready power supply is required)





Motherboard Specifications

• Model:
  • asRock FM2A85X Extreme4-M Motherboard


• Processor Support:

  • Support for Socket FM2 100W processors
  • 4 + 2 Power Phase Design
  • Supports AMD's Cool 'n' Quiet Technology
  • UMI-Link GEN2

• Chipset:
  • AMD A85X (Hudson-D4)

• Memory:

  • Dual Channel DDR3 memory technology
  • 4 x DDR3 DIMM slots
  • Supports DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, un-buffered memory
  • Max. capacity of system memory: 64GB*
  • Supports Intel ® Extreme Memory Profile (XMP) 1.3 / 1.2
  • Supports AMD Memory Profile (AMP)

• Expansion Slots:

  • 2 x PCI Express 2.0 x16 slots (PCIE1 @ x16 mode; PCIE3 @ x4 mode)
  • 1 x PCI Express 2.0 x1 slot
  • 1 x PCI slot
  • Supports AMD Quad CrossFireX, CrossFireX and Dual Graphics

• On-Board Video:

  • AMD Radeon HD 7000 series graphics
  • DirectX 11, Pixel Shader 5.0
  • Max. shared memory 2GB
  • Multi VGA Output options: D-Sub, DVI-D and HDMI
  • Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
  • Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
  • Supports D-Sub with max. resolution up to 1920x1600 @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
  • Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
  • Supports AMD Steady Video 2.0: New video post processing capability for automatic jutter reduction on home/online video
  • Supports HDCP function with DVI and HDMI ports
  • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

• On-Board Audio:

  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • Premium Blu-ray audio support
  • Supports THX TruStudio

• On-Board LAN:

  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • Realtek RTL8111E
  • Supports Wake-On-LAN
  • Supports LAN Cable Detection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE

• Form Factor/Dimensions:

  • Micro ATX Form Factor
  • ASRock DuraCap (2.5 x longer life time) (100% Japan-made high-quality Conductive Polymer Capacitors)
• Hardware Monitoring:

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU/Chassis/Power Fan Tachometer
• CPU/Chassis Quiet Fan
• CPU/Chassis Fan Multi-Speed Control
• CASE OPEN detection
• Voltage Monitoring: +12V, +5V, +3.3V, Vcore
• Accessories:

• Quick Installation Guide, Support CD, I/O Shield
• 4 x SATA Data Cables
• BIOS:

• 64Mb AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports jumperfree
• SMBIOS 2.3.1 Support
• DRAM, APU PCIE VDDP, CPU and CPU NB/GFX Voltage Multi-adjustment
